Land Rover Discovery: Electronic Engine Controls - Ingenium i4 2.0l Diesel Exhaust Gas Temperature Sensor (G1875930)/ Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Electronic Engine Controls  - Ingenium i4 2.0l Diesel / Electronic Engine Controls - Ingenium i4 2.0l Diesel Exhaust Gas Temperature Sensor (G1875930)/ Removal and Installation

REMOVAL

WARNING:

Observe due care when working near a hot exhaust system.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Engine shown removed for clarity.

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

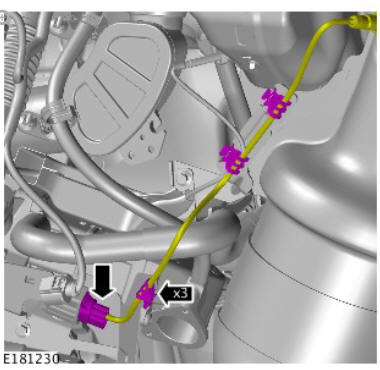

Electronic Engine Controls - Ingenium i4 2.0l Diesel Exhaust Gas Temperature Sensor (G1875930)/ Removal and Installation

Electronic Engine Controls - Ingenium i4 2.0l Diesel Exhaust Gas Temperature Sensor (G1875930)/ Removal and Installation

CAUTION:

Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

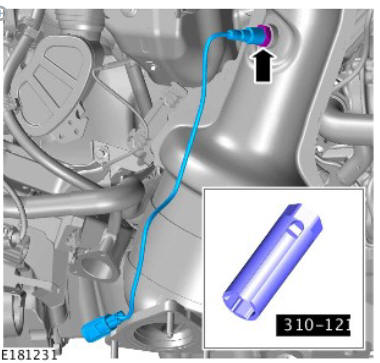

Electronic Engine Controls - Ingenium i4 2.0l Diesel Exhaust Gas Temperature Sensor (G1875930)/ Removal and Installation

Torque: 35 Nm

INSTALLATION

CAUTIONS:

  • If accidentally dropped or knocked install a new sensor.
  • Make sure the anti-seize compound is applied only to the thread and does not contact the sensor body.

NOTE:

If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

To install, reverse the removal procedure.

Electronic Engine Controls - Ingenium i4 2.0l Diesel Heated Oxygen Sensor (G1890701) /Removal and Installation

REMOVAL

WARNING:

Observe due care when working near a hot exhaust system.

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.

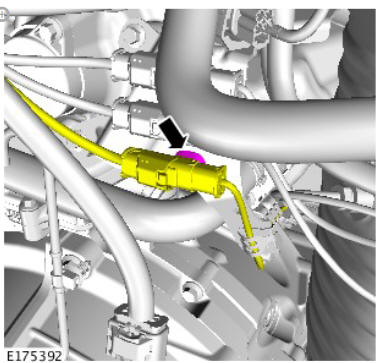

  2. Refer to: Secondary Bulkhead Centre Panel - INGENIUM I4 2.0L Diesel (501-02 Front End Body Panels, Removal and Installation).
  3. Refer to: Diesel Particulate Filter Differential Pressure Sensor (303- 14B Electronic Engine Controls - INGENIUM I4 2.0L Diesel, Removal and Installation).

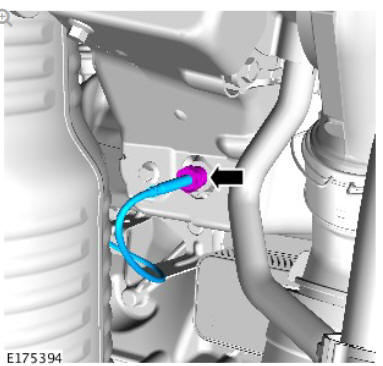

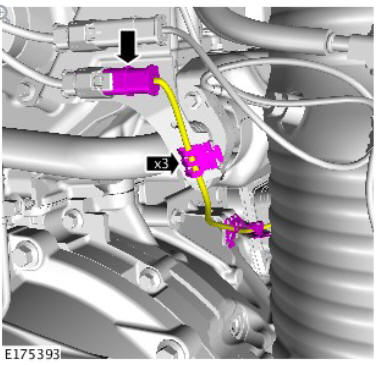

Electronic Engine Controls - Ingenium i4 2.0l Diesel Heated Oxygen Sensor (G1890701) /Removal and Installation

Electronic Engine Controls - Ingenium i4 2.0l Diesel Heated Oxygen Sensor (G1890701) /Removal and Installation

Torque: 48 Nm

INSTALLATION

CAUTIONS:

  • If accidentally dropped or knocked install a new sensor.
  • Make sure the HO2S wiring harness is not twisted more than 180 degrees and is not in contact with either the exhaust or driveshaft.
  • Make sure the anti-seize compound does not contact the heated oxygen sensor (HO2S) tip.

NOTE:

If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

To install, reverse the removal procedure.

Electronic Engine Controls - Ingenium i4 2.0l Diesel Manifold Absolute Pressure and Temperature Sensor (G1875925) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

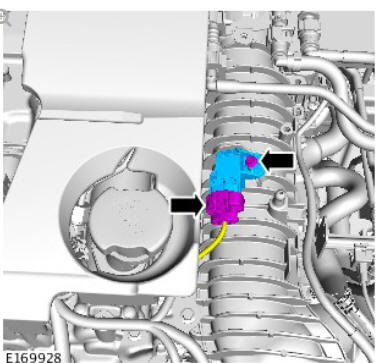

Electronic Engine Controls - Ingenium i4 2.0l Diesel Manifold Absolute Pressure and Temperature Sensor (G1875925) / Removal and Installation

Torque: 4.1 Nm

INSTALLATION

NOTE:

Make sure that the component is clean, free of foreign material and lubricant.

To install, reverse the removal procedure.

Electronic Engine Controls - Ingenium i4 2.0l Diesel Mass Air Flow Sensor (G1875933) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - GTDi 2.0L Petrol/GTDi 2.0L Petrol - SULEV, Removal and Installation).

CAUTION:

Inspect the O-ring seal, install a new component if damaged.

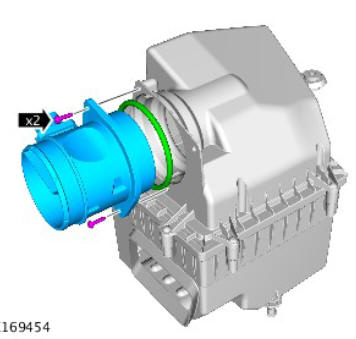

Electronic Engine Controls - Ingenium i4 2.0l Diesel Mass Air Flow Sensor (G1875933) / Removal and Installation

Torque: 1.9 Nm

INSTALLATION

CAUTION:

Make sure that the mating faces are clean and free from foreign material.

To install, reverse the removal procedure.
