Electronic Engine Controls - Ingenium i4 2.0l Diesel Oil Pressure and Temperature Sensor (G1909611)/ Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support vehicle.

Refer to: Cooling System Partial Draining and Vacuum Filling (303- 03A Engine Cooling - TD4 2.2L Diesel, General Procedures).

Refer to: Accessory Drive Belt (303-05B Accessory Drive - INGENIUM I4 2.0L Diesel, Removal and Installation).

CAUTION:

Be prepared to collect escaping coolant.

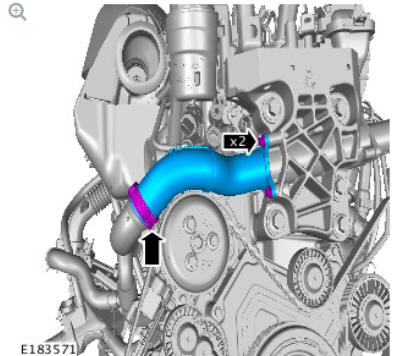

Electronic Engine Controls - Ingenium i4 2.0l Diesel Oil Pressure and Temperature Sensor (G1909611)/ Removal and Installation

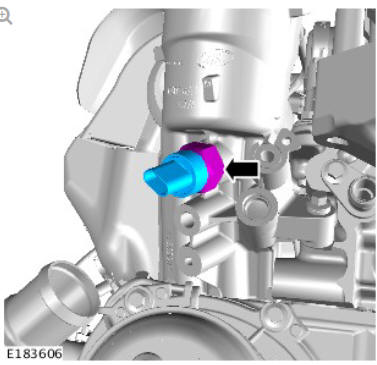

Torque: 12 Nm

Electronic Engine Controls - Ingenium i4 2.0l Diesel Oil Pressure and Temperature Sensor (G1909611)/ Removal and Installation

CAUTION:

Be prepared to collect escaping oil.

NOTE:

Discard sealing washers.

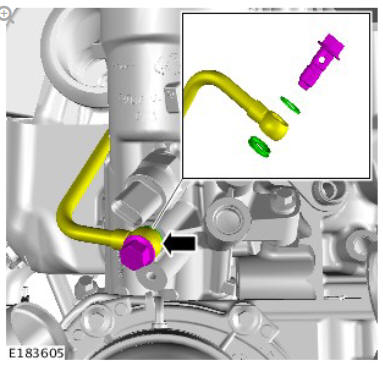

Electronic Engine Controls - Ingenium i4 2.0l Diesel Oil Pressure and Temperature Sensor (G1909611)/ Removal and Installation

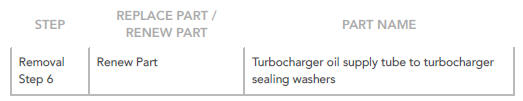

Renew Part: Turbocharger oil supply tube to turbocharger sealing washers.

Torque: 18 Nm

CAUTION:

Be prepared to collect escaping oil.

Electronic Engine Controls - Ingenium i4 2.0l Diesel Oil Pressure and Temperature Sensor (G1909611)/ Removal and Installation

Torque: 15 Nm

INSTALLATION

To install, reverse the removal procedure.

Electronic Engine Controls - Ingenium i4 2.0l Diesel Post DPF Exhaust Gas Temperature Sensor (G1875932) / Removal and Installation

REMOVAL

WARNING:

Observe due care when working near a hot exhaust system.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Engine shown removed for clarity.

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).

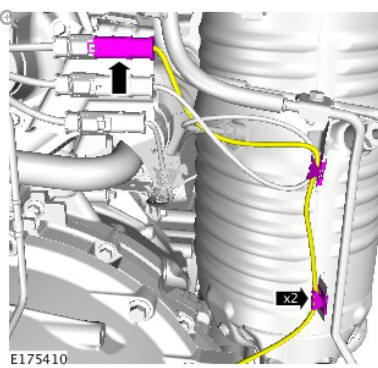

Electronic Engine Controls - Ingenium i4 2.0l Diesel Post DPF Exhaust Gas Temperature Sensor (G1875932) / Removal and Installation

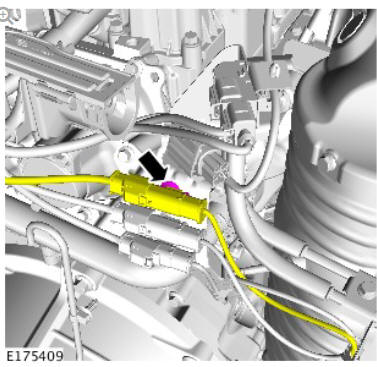

Electronic Engine Controls - Ingenium i4 2.0l Diesel Post DPF Exhaust Gas Temperature Sensor (G1875932) / Removal and Installation

CAUTION:

Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

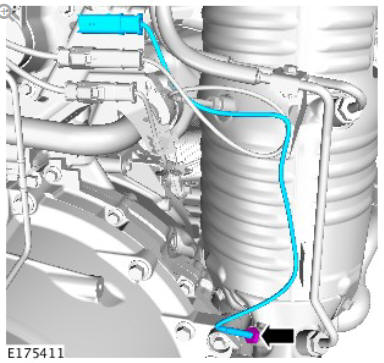

Electronic Engine Controls - Ingenium i4 2.0l Diesel Post DPF Exhaust Gas Temperature Sensor (G1875932) / Removal and Installation

Torque: 35 Nm

INSTALLATION

CAUTIONS:

  • If accidentally dropped or knocked install a new sensor.
  • Make sure the anti-seize compound is applied only to the thread and does not contact the sensor body.

NOTE:

If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

To install, reverse the removal procedure.
