REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

NOTE:

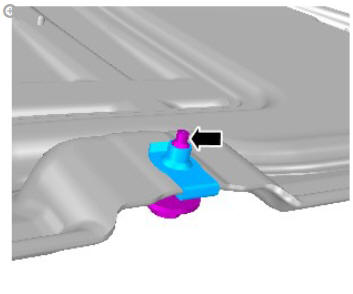

Loosen the bolt, but do not fully remove.

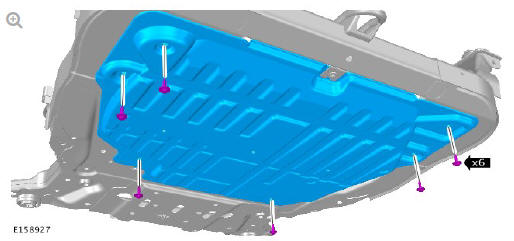

Front end body panels engine undershield (G1660881) removal and installation

Torque: 10 Nm

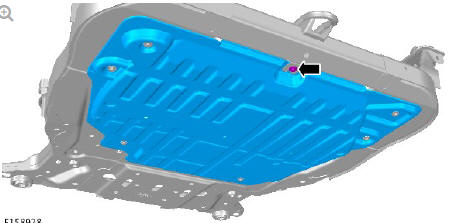

Front end body panels engine undershield (G1660881) removal and installation

Torque: 10 Nm

NOTE:

Do not disassemble further if the component is removed for access only.

Front end body panels engine undershield (G1660881) removal and installation

INSTALLATION

To install, reverse the removal procedure.
