Land Rover Discovery: Front Suspension Front Shock Absorber (G1779642) - Installation
Installation
Make sure the correct vehicle suspension components are installed.
Refer to: Specifications (204-00 Suspension System - General Information, Specifications).
.jpg)

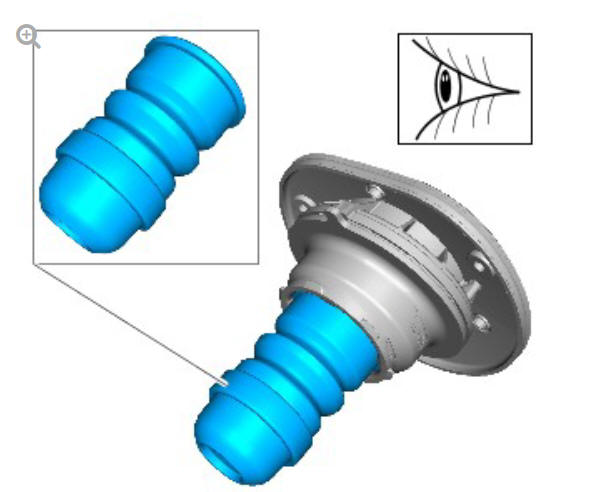

Inspect the component and install a new one if damaged.
.jpg)

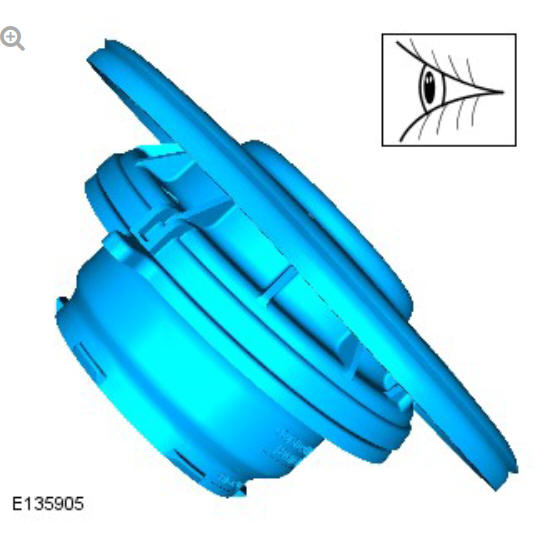

Inspect the component and install a new one if damaged.
.jpg)

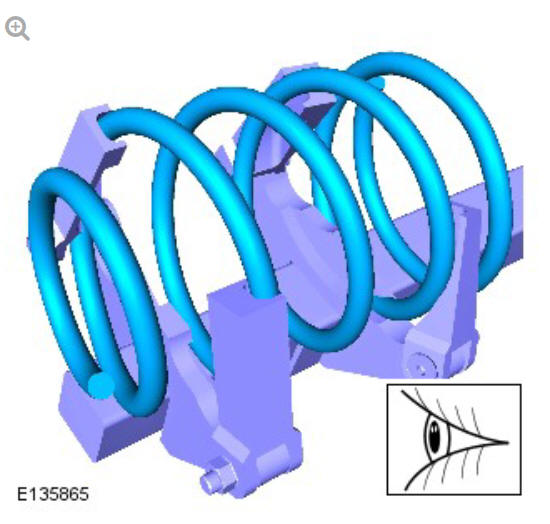

Inspect the component and install a new one if damaged.
.jpg)

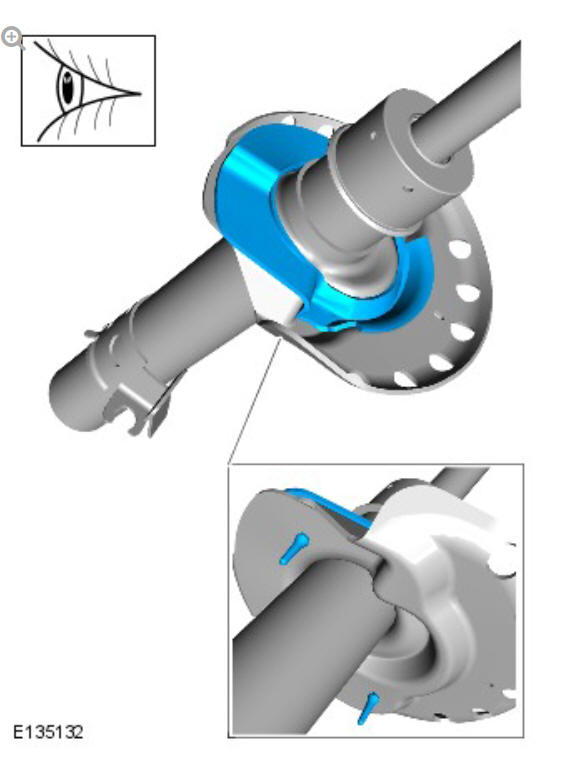

Inspect the component and install a new one if damaged.
.jpg)
Inspect the component and install a new one if damaged.
.jpg)
Inspect the component and install a new one if damaged.
WARNING:
Make sure to support the shock absorber.
CAUTIONS:

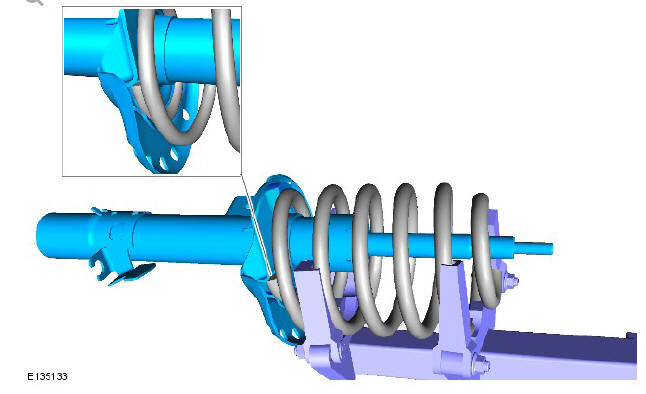

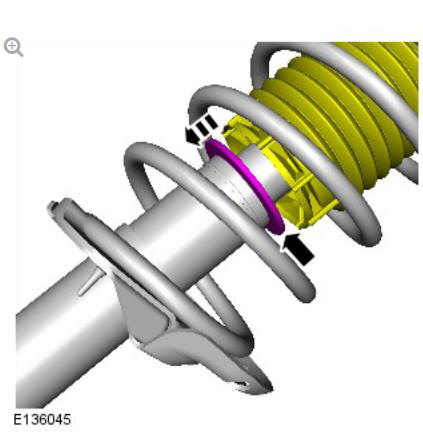

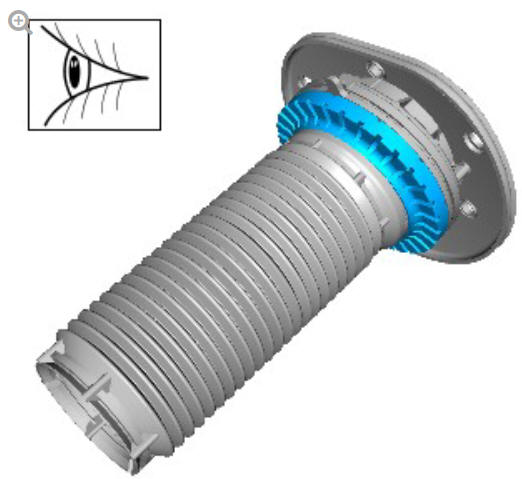

- Make sure the component is aligned as shown.

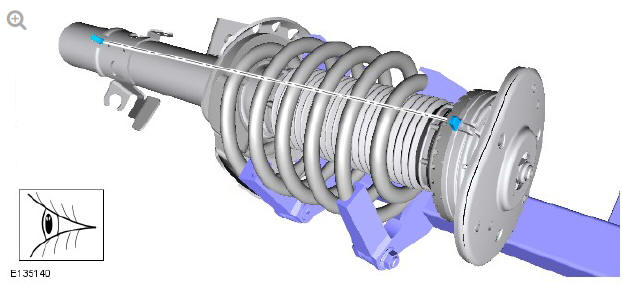

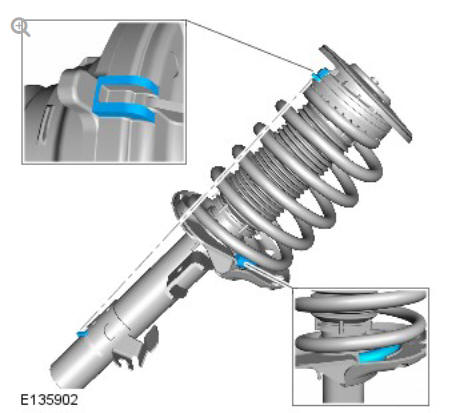

- Make sure that the spring is installed to the damper assembly with the paint marks (located on the spring) at the top.
.jpg)
WARNINGS:

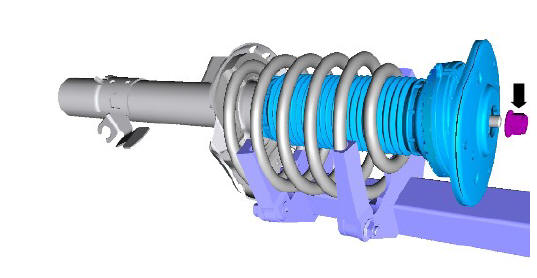

- Make sure that a new nut is installed.
- Make sure to support the shock absorber.
.jpg)
Renew Part: Shock absorber nut.
Torque: 67 Nm
CAUTION:

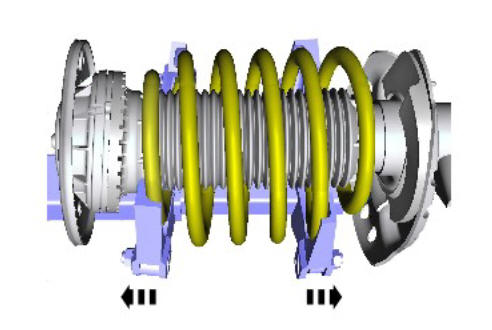

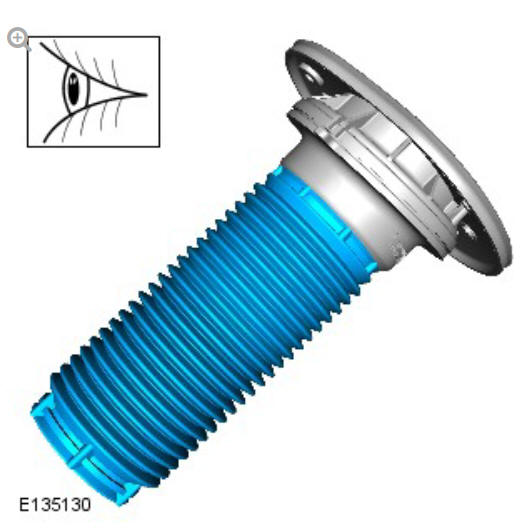

Make sure the components are aligned as shown.
.jpg)
.jpg)
.jpg)
CAUTION:
Make sure the components are aligned as shown.
.jpg)
Install the spring and damper assembly.
Refer to: Shock Absorber and Spring Assembly (204-01 Front Suspension, Removal and Installation).
Check the suspension system ride height.
