Land Rover Discovery: General Information Brake System Bleeding (G1785100) / General Procedures

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Brake-System / General Information Brake System Bleeding (G1785100) / General Procedures

NOTES:

  • Bleeding of the complete brake system must be carried out using Land Rover approved diagnostic equipment. Where only the primary or secondary brake circuits have been disturbed in isolation, it should only be necessary to bleed that circuit. Partial bleeding of the hydraulic system is only permissible if a brake tube or hose has been disconnected with only minimal loss of fluid.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Check that the brake fluid lines are secure and that there are no signs of a brake fluid leak. If a brake fluid leak is detected, investigate and rectify the cause of the leak before bleeding the brakes.

Pump the brake pedal until the brake vacuum assistance is exhausted.

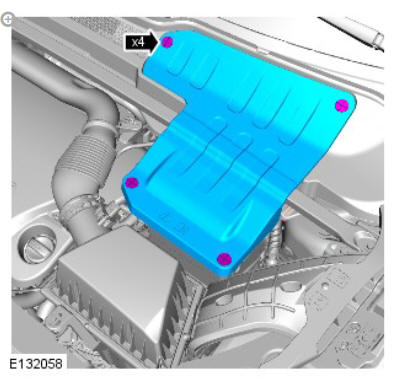

Right-hand drive vehicles

General information brake system bleeding (G1785100) general procedures

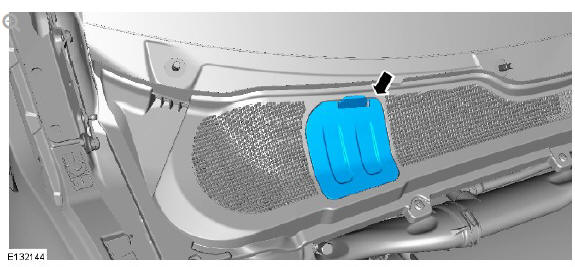

Left-hand drive vehicles

General information brake system bleeding (G1785100) general procedures

All vehicles

WARNING:

Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.

CAUTION:

Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

NOTE:

LH illustration shown, RH is similar.

General information brake system bleeding (G1785100) general procedures

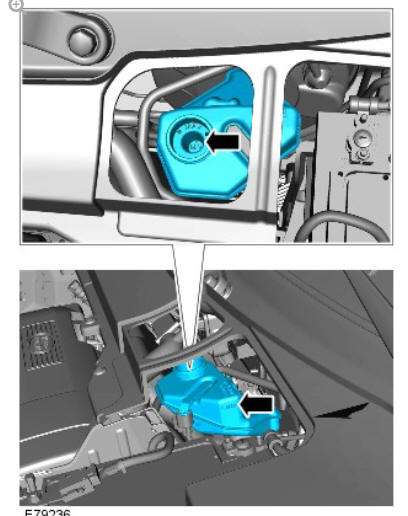

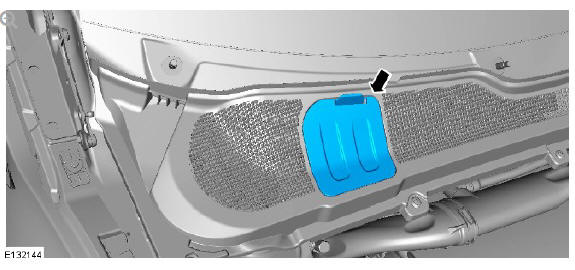

Remove the brake fluid reservoir cap.

NOTE:

LH illustration shown, RH is similar.

General information brake system bleeding (G1785100) general procedures

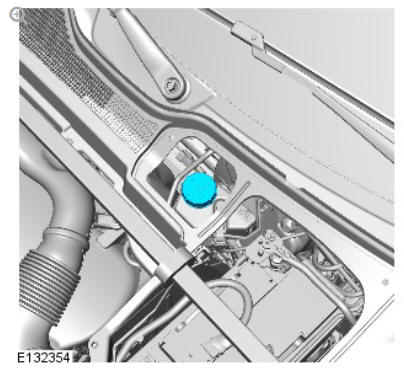

Fill the brake fluid reservoir to the MAX mark.

All vehicles

Install the bleed tube to the brake caliper bleed screw and immerse the free end of the bleed tube in a bleed jar containing a small quantity of approved brake fluid.

Left-hand drive vehicles

General information brake system bleeding (G1785100) general procedures

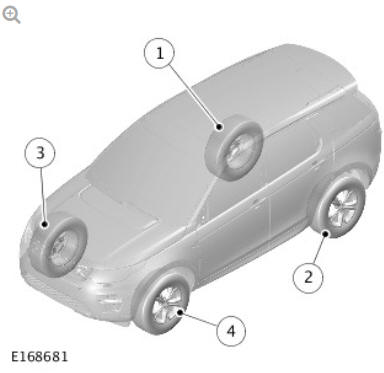

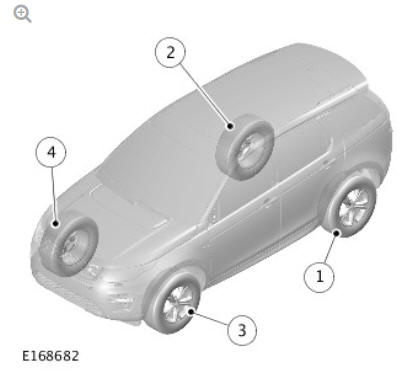

  • Starting at the brake caliper furthest away from the brake master cylinder, loosen the bleed screw by one-half to threequarters of a turn.

Right-hand drive vehicles

General information brake system bleeding (G1785100) general procedures

All vehicles

CAUTION:

The brake fluid reservoir must remain full with new, clean brake fluid at all times during bleeding.

With assistance, depress the brake pedal steadily through its full stroke and allow it to return to the rest position. Repeat the procedure until brake fluid, clean and air-free flows into the bleed jar.

When brake fluid, clean and air-free flows into the bleed jar, depress and hold the brake pedal down.

CAUTION:

Make sure the bleed screw cap is installed after bleeding.

This will prevent corrosion to the bleed screw.

With the brake pedal fully depressed, tighten the bleed screw.

Torque:

Front bleed screw 15 Nm

Rear bleed screw 15 Nm

CAUTION:

LH illustration shown, RH is similar.

General information brake system bleeding (G1785100) general procedures

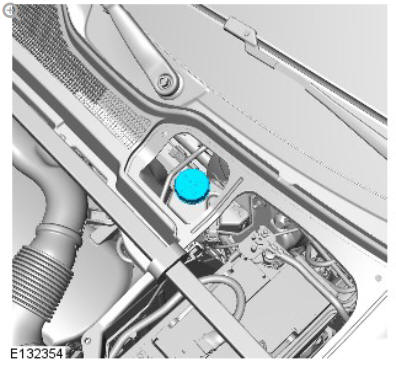

Fill the brake fluid reservoir to the MAX mark.

WARNING:

Braking efficiency may be seriously impaired if an incorrect bleed sequence is used.

Repeat the brake bleeding procedure for each brake caliper, following the above sequence.

Apply the brakes and check for leaks.

CAUTION:

LH illustration shown, RH is similar.

General information brake system bleeding (G1785100) general procedures

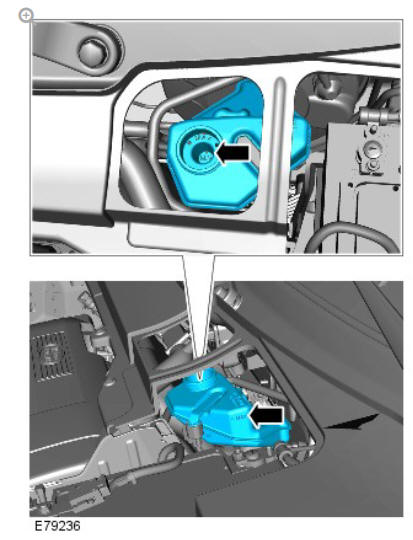

Install the brake fluid reservoir cap.

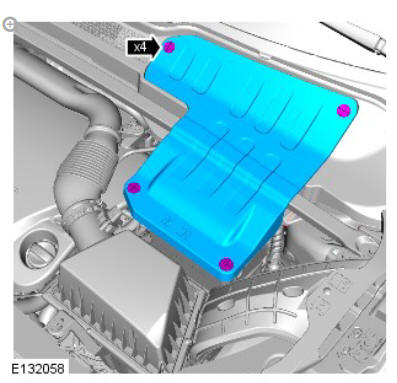

Right-hand drive vehicles

General information brake system bleeding (G1785100) general procedures

Left-hand drive vehicles

General information brake system bleeding (G1785100) general procedures
