Land Rover Discovery: Passenger Door Module / Diagnosis and Testing

PRINCIPLES OF OPERATION

For a detailed description of the Passenger Door Module, refer to the relevant Description and Operation section in the workshop manual. REFER to: Handles, Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Description and Operation).

INSPECTION AND VERIFICATION

CAUTION:

Diagnosis by substitution from a donor vehicle is NOT acceptable.

Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTES:

  • If a control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the Warranty Policy and Procedures manual, or determine if any prior approval programme is in operation, prior to the installation of a new module/component.
  • When performing voltage or resistance tests, always use a digital multimeter accurate to three decimal places, and with an up-todate calibration certificate. When testing resistance always take the resistance of the digital multimeter leads into account.
  • Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
  1. Verify the customer concern
  2. Visually inspect for obvious signs of damage and system integrity

Visual Inspection

Visual Inspection

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step

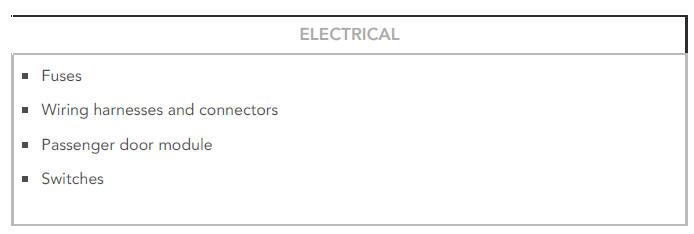

  2. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
  3. Check DDW for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and carry out the recommendations as required

DTC INDEX

For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00. REFER to: Diagnostic Trouble Code Index - DTC: Driver / Passenger / Rear Left / Rear Right Door Module (DDM/PDM/RLDM/RRDM) (100-00 General Information, Description and Operation).

Rear Door Module (G1791769) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

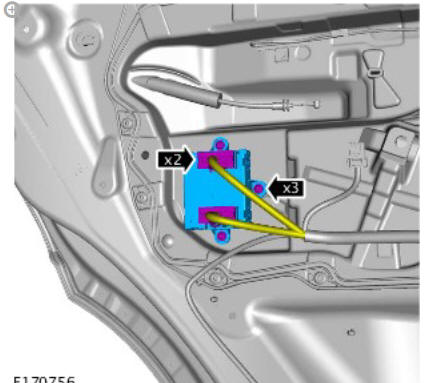

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Rear Door Module (G1791769) / Removal and Installation

INSTALLATION

CAUTION:

If a new component has been installed, configure using Land Rover approved diagnostic equipment.

To install, reverse the removal procedure.

Remote keyless entry module diagnosis and testing

PRINCIPLES OF OPERATION

For a detailed description of the Remote Keyless Entry system, refer to the relevant Description and Operation section in the workshop manual.

INSPECTION AND VERIFICATION

CAUTION:

Diagnosis by substitution from a donor vehicle is NOT acceptable.

Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTES:

  • If a control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the Warranty Policy and Procedures manual, or determine if any prior approval programme is in operation, prior to the installation of a new module/component.
  • When performing voltage or resistance tests, always use a digital multimeter accurate to three decimal places, and with an up-todate calibration certificate. When testing resistance always take the resistance of the digital multimeter leads into account.
  • Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
  1. Verify the customer concern
  2. Visually inspect for obvious signs of damage and system integrity

Visual Inspection

Visual Inspection

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step

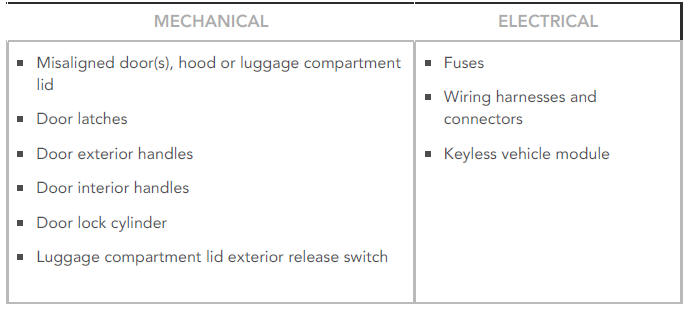

  2. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
  3. Check DDW for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and carry out the recommendations as required

DTC INDEX

For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00. REFER to: Diagnostic Trouble Code Index - DTC: Keyless Vehicle Module (KVM) (100-00 General Information, Description and Operation).
