Land Rover Discovery: Instrument Cluster Lens (G1791763) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Instrument and Warning Systems / Instrument Cluster / Instrument Cluster Lens (G1791763) / Removal and Installation

REMOVAL

CAUTION:

Use a suitable trim tool.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.

Refer to: Specifications (414-01, Specifications).

Refer to: Instrument Cluster (413-01, Removal and Installation).

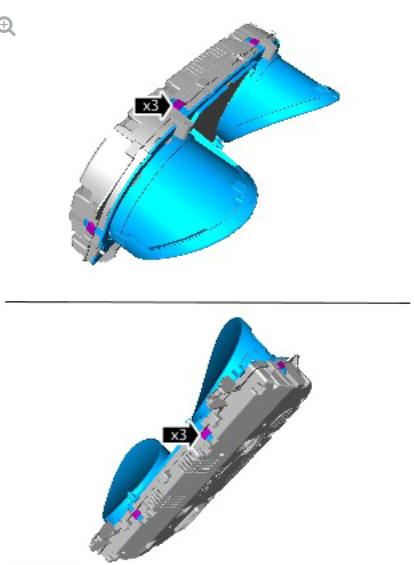

Instrument Cluster Lens (G1791763) / Removal and Installation

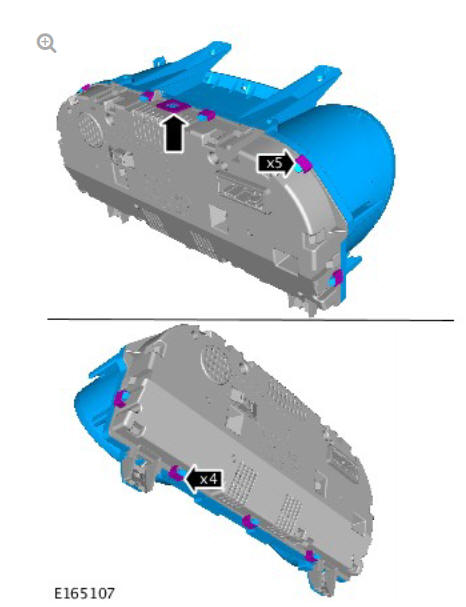

Instrument Cluster Lens (G1791763) / Removal and Installation

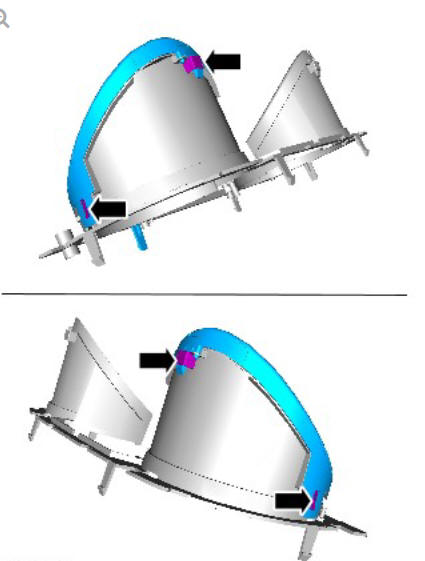

Instrument Cluster Lens (G1791763) / Removal and Installation

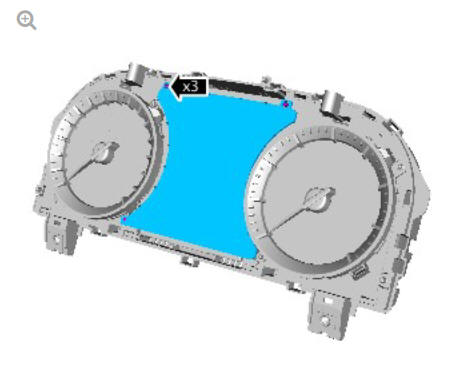

Instrument Cluster Lens (G1791763) / Removal and Installation

INSTALLATION

NOTE:

Take care not to leave finger prints inside the new lens when fitting.

  • To install, reverse the removal procedure.
