Land Rover Discovery: Instrument Cluster (G1791762) Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Instrument and Warning Systems / Instrument Cluster / Instrument Cluster (G1791762) Removal and Installation

REMOVAL

CAUTION:

Use a suitable trim tool

NOTES:

  • When a new instrument cluster is to be installed, the Land Rover approved diagnostic system must be connected to the vehicle and the instrument cluster renewal procedure followed. This will allow vehicle coding data and current service interval data to be correctly installed to the new instrument cluster.
  • Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Refer to: Floor Console Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

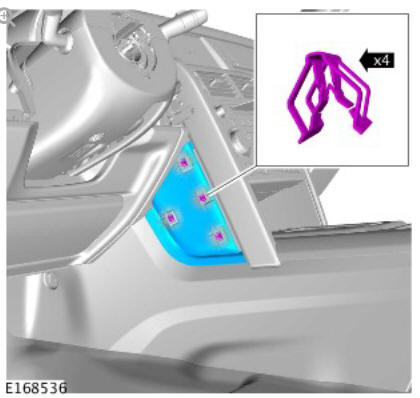

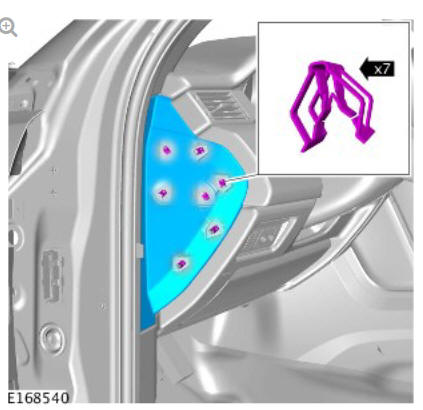

Instrument Cluster (G1791762) Removal and Installation

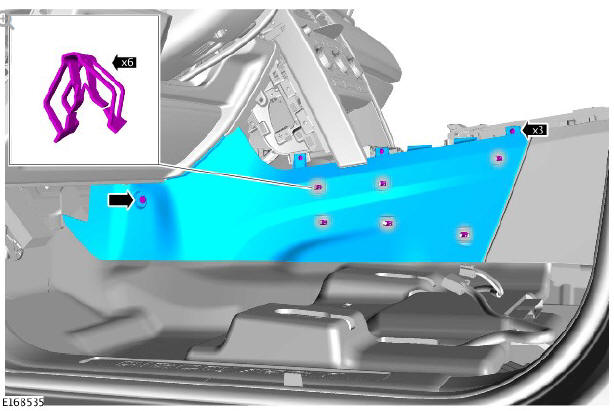

Instrument Cluster (G1791762) Removal and Installation

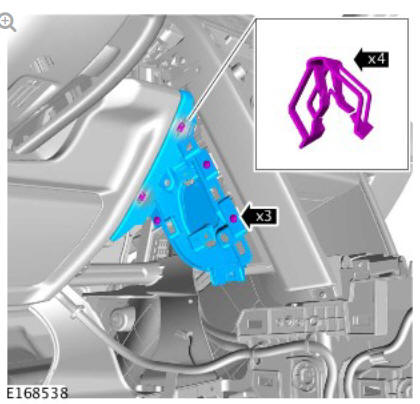

Instrument Cluster (G1791762) Removal and Installation

Torque: 1.5 Nm

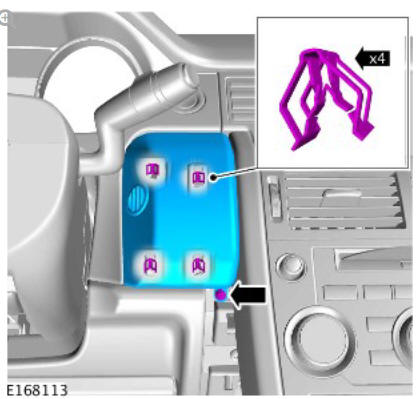

Instrument Cluster (G1791762) Removal and Installation

Torque: 1.5 Nm

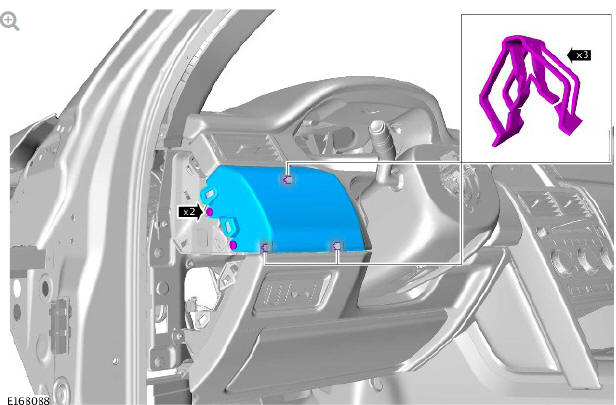

Instrument Cluster (G1791762) Removal and Installation

Torque: 1.5 Nm

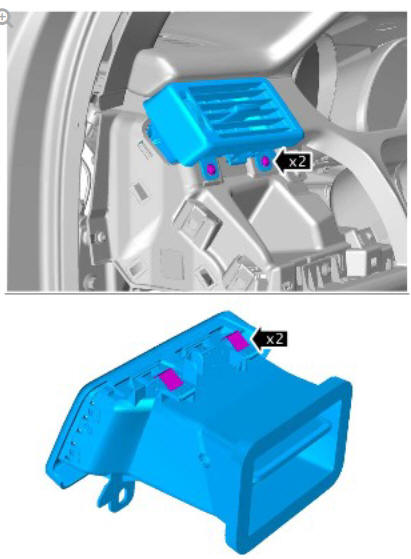

Instrument Cluster (G1791762) Removal and Installation

Torque: 1.5 Nm

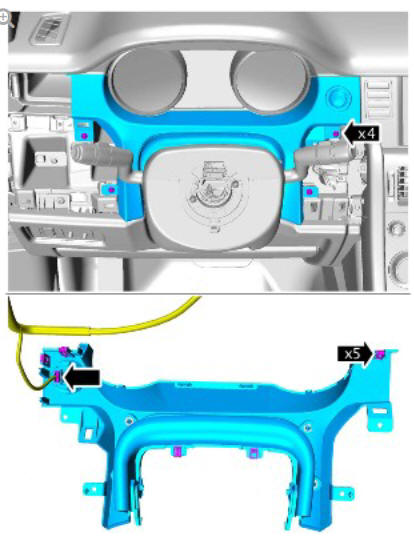

Instrument Cluster (G1791762) Removal and Installation

Torque: 1.5 Nm

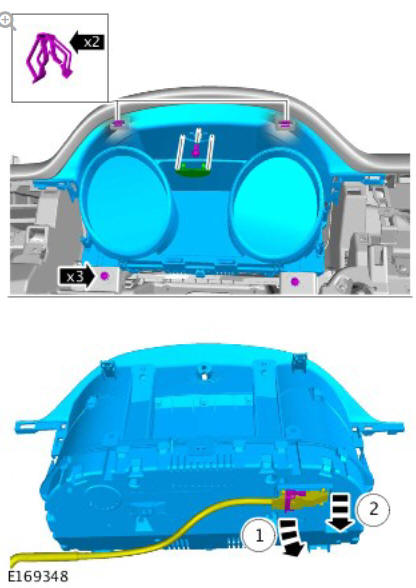

Instrument Cluster (G1791762) Removal and Installation

Torque: 1.5 Nm

Instrument Cluster (G1791762) Removal and Installation

Torque: 1.5 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
