Land Rover Discovery: Parking Aid Description and Operation

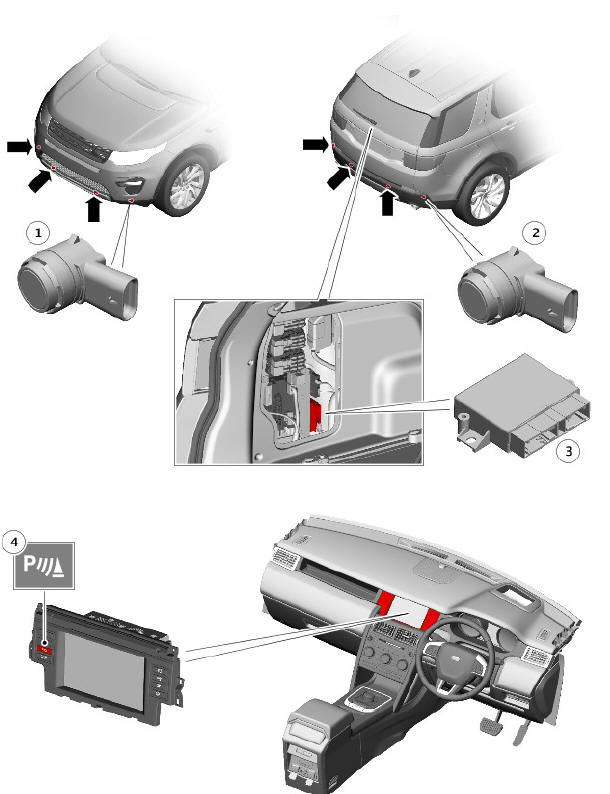

Parking Aid System - Component Location

Parking Aid System - Component Location

  1. Front Parking Aid Sensors (4 of)
  2. Rear Parking Sensors (4 of)
  3. Parking Aid Control Module (PACM)
  4. Parking Aid Switch

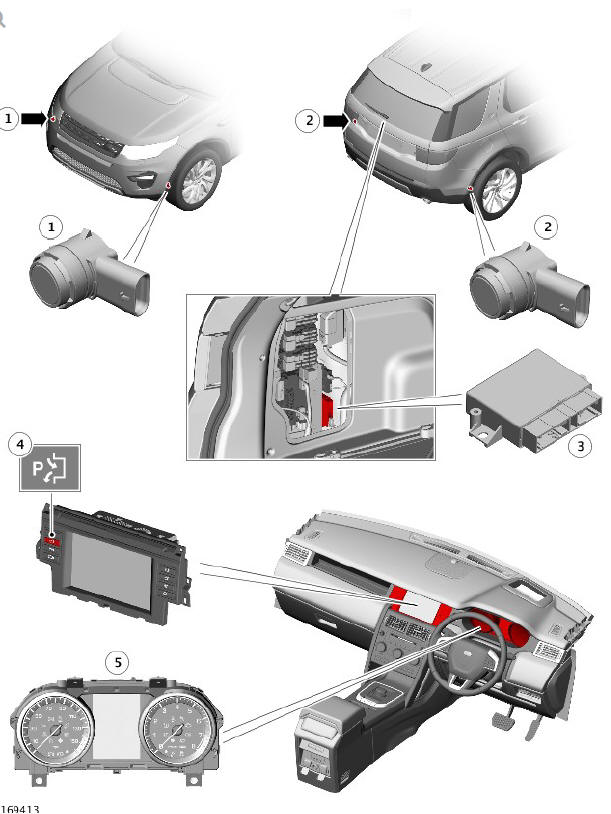

PARK ASSIST SYSTEM - COMPONENT LOCATION

PARK ASSIST SYSTEM - COMPONENT LOCATION

  1. Front Park Assist Sensors (2 of)
  2. Rear Park Assist Sensors (2 of)
  3. Parking Aid Control Module (PACM)
  4. Park Assist Switch
  5. Instrument Cluster (IC)

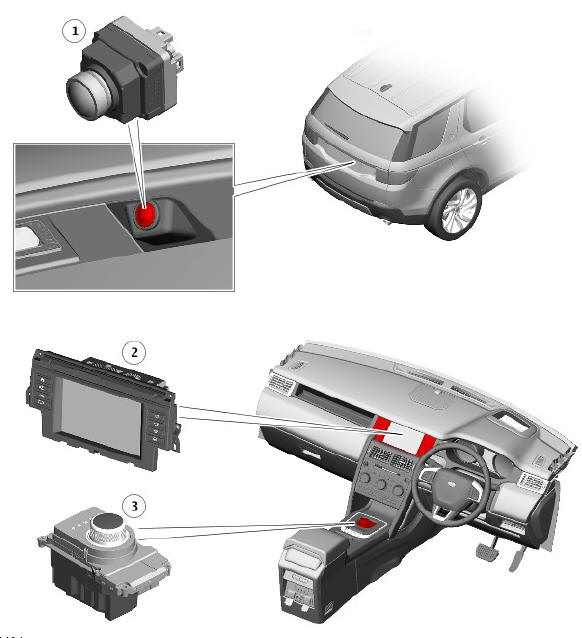

REAR VIEW CAMERA SYSTEM - COMPONENT LOCATION

REAR VIEW CAMERA SYSTEM - COMPONENT LOCATION

  1. Rear View Camera (RVC)
  2. Touch Screen (TS)
  3. Transmission Control Switch (TCS)

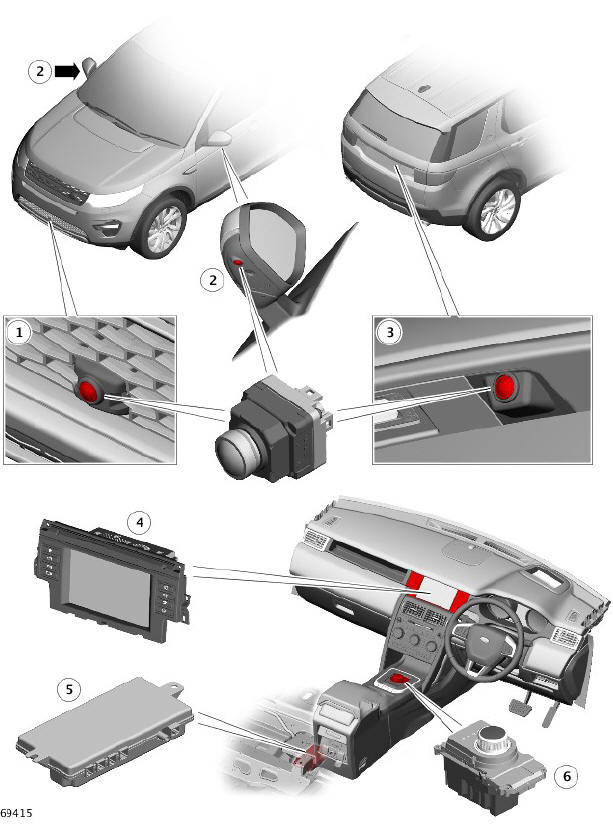

PROXIMITY CAMERA SYSTEM - COMPONENT LOCATION

PROXIMITY CAMERA SYSTEM - COMPONENT LOCATION

  1. Front Proximity Camera
  2. Left and Right Proximity Cameras
  3. Rear Proximity Camera
  4. Touch Screen (TS)
  5. Camera Control Module (CCM)
  6. Transmission Control Switch (TCS)

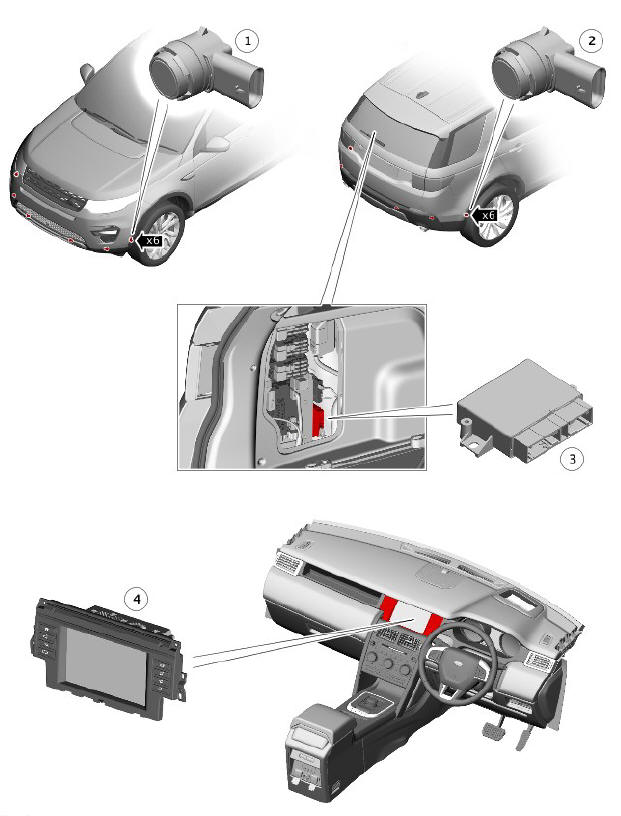

360º PARKING AID SYSTEM

360º PARKING AID SYSTEM

  1. Front - Parking Aid Sensor (4 of) and Park Assist Sensors (2 of)
  2. Rear - Parking Aid Sensor (4 of) and Park Assist Sensors (2 of)
  3. Parking Aid Control Module (PACM)
  4. Touch Screen (TS)

OVERVIEW

Parking Aid System

The parking aid system provides an audible warning to the driver when any obstacles are in the path of the vehicle during forward or reverse parking manoeuver.

The system comprises off:

  • Parking Aid Control Module (PACM).
  • Parking aid switch.
  • Four ultrasonic sensors in the front bumper.
  • Four ultrasonic sensors in the rear bumper.

During low speeds, the Parking Aid Control Module (PACM) uses the ultrasonic sensors to monitor the area around the front and rear bumpers. If an object is detected within a monitored area, the PACM then outputs a warning signal using the audio system speakers. The sensors can detect solid objects such as posts, walls and other vehicles. Objects very close to the ground may not be detected, but because of their low height may not cause damage to the vehicle.

360º Parking Aid System

360º Parking aid system is an additional feature to the parking aid system.

The system uses the front and rear park assist sensors as well as the parking aid sensors.

When the vehicle is moving the park assist sensors are scanning the vehicle surroundings. When a given obstacle is detected and then moves out the sensor's range, it will then be tracked. Information will then be displayed via the Touch Screen (TS) or Audio Head Unit (AHU) informing the driver of close, mid and far range objects and the relevant area in which these objects have been detected.

The Parking Aid Control Module (PACM) still outputs a warning signal using the audio system speakers.

PARK ASSIST SYSTEM

The park assist system allows the vehicle to manoeuver into and out of a parking space.

There are three available features to park assist:

  1. Parallel parking.
  2. Perpendicular parking.
  3. Parking exit.

The system comprises off:

  • Parking Aid Control Module (PACM).
  • Park assist switch.
  • Two ultrasonic sensors on the wheel arch outer front finishers.
  • Two ultrasonic sensors on the wheel arch outer rear finishers.

When one of the features of park assist is selected, instructions are displayed in the message center. These instructions are communicated to the driver using the following methods:

  • Visual - graphical and text message instructions.
  • Audible - variable sound tones

If a system fault is detected, a continuous tone will sound and a fault message is displayed in the message center.

REAR VIEW CAMERA AND PROXIMITY CAMERA SYSTEMS

Depending on vehicle specification, either a Rear View Camera (RVC) or Proximity Camera system will be fitted. These systems provide additional information to the driver when reversing or manoeuvering.

The Rear View Camera (RVC) system will only use one camera in the tailgate and is only operational when Reverse (R) gear selected. This will display a wide-angle image of the rear of the vehicle.

The Proximity Camera system will use four cameras, one in the front bumper, one in the tailgate and a camera in each of the door mirrors. They will become operational when Reverse (R) or Drive (D) gear is selected. This will display a wide-angle image of the front, rear and sides of the vehicle.

DESCRIPTION

    READ NEXT:

     Parking Aid Control Module (PACM)

    The Parking Aid Control Module (PACM) is located in the right rear quarter panel, behind the side trim panel of the luggage compartment. The PACM has two connectors which provide power, ground, Hig

     Proximity Cameras

    Proximity Camera Coverage Zones Front Proximity Camera Right Proximity Camera Rear Proximity Camera Left Proximity Camera The proximity camera system has four cameras that are located in the

     Detection Calculation

    In the combined mode, the sensors emit a series of ultrasonic impulses and then switch to receiver mode to receive the echo reflected by an obstacle within the detection range. The received echo signa
