Land Rover Discovery: Parking Aid Rear Outer Parking Aid Sensor (G1780356) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Electrical / Instrument and Warning Systems / Parking Aid / Parking Aid Rear Outer Parking Aid Sensor (G1780356) / Removal and Installation
REMOVAL
CAUTION:
LH illustration shown, RH is similar.
NOTES:
- Removal steps in this procedure may contain installation details.
- The ignition must be switched off.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Wheel and Tire (204-04, Removal and Installation).
CAUTION:
Take extra care not to damage the component.

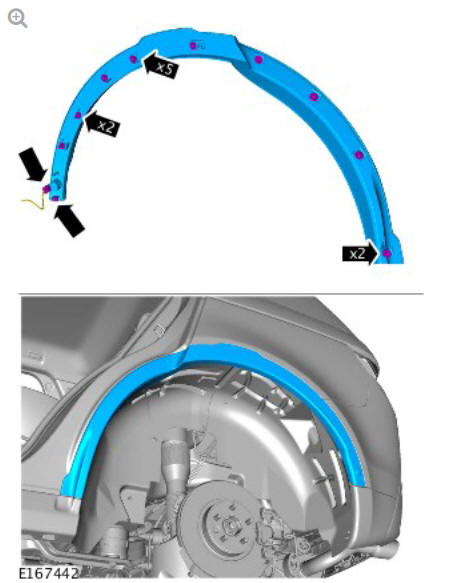

.jpg)
NOTE:
On vehicles that are equipped with black or unpainted bumpers, the sensor(s) do not require painting.

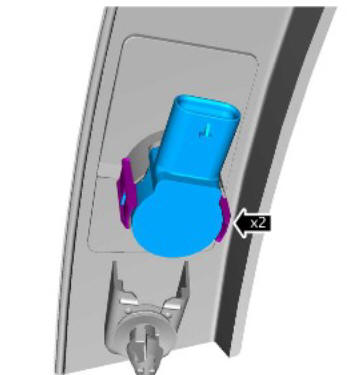

.jpg)
INSTALLATION
- To install, reverse the removal procedure.
Parking aid side parking aid camera (G1780357) removal and installation
REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- The ignition must be switched off.
- Right illustration shown, Left is similar
Refer to: Exterior Mirror Motor (501-09 Rear View Mirrors, Removal and Installation).

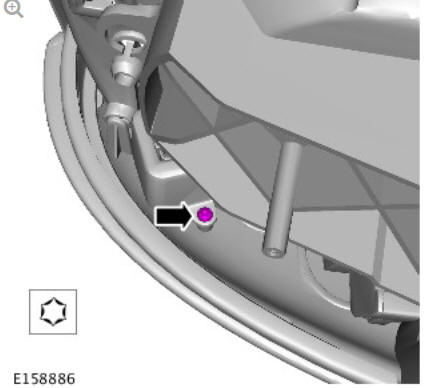

.jpg)
Torque: 0.5 Nm

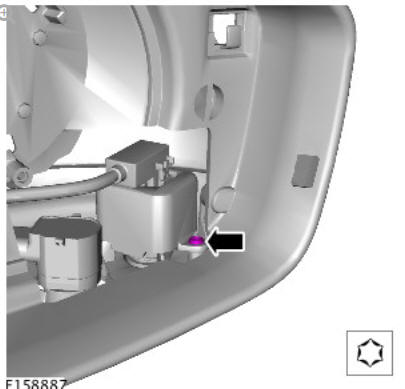

.jpg)
Torque: 0.5 Nm
CAUTION:
Take extra care not to damage the wiring harness clips.

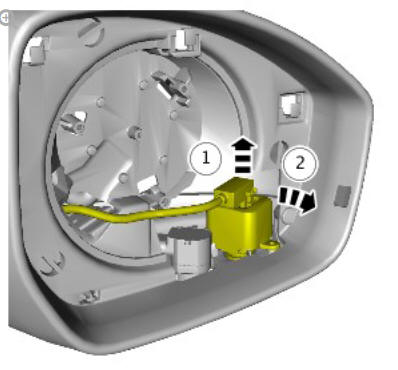

.jpg)
CAUTION:
Take extra care not to damage the wiring harness clips.

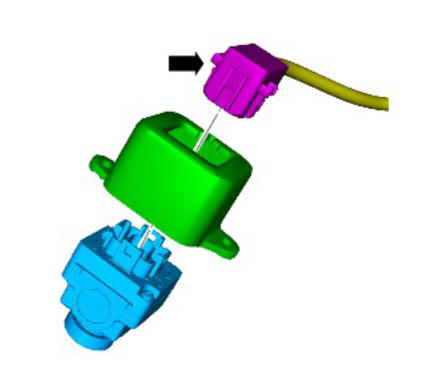

.jpg)
INSTALLATION
- To install, reverse the removal procedure.
- Following the replacement of a camera on these vehicles the calibration process is:
- Drive the vehicle for 5 to 10 minutes as much as possible in a straight line, up to 30kph / 19mph, during this time the camera will self-calibrate (do not have the camera functions turned on) to be carried out in normal daylight conditions.
- After completing the drive cycle camera operation can be checked by:
- Surround View Camera: To check calibration parked next to a kerb/line select camera view make sure a straight line is visible on screen in the 360 plan view
- Standalone Rear Camera To check calibration reverse straight into a marked parking slot and see trajectory overlays are parallel to the markings on the ground
