Land Rover Discovery: Rear Drive Axle- Differential - Vehicles without- Active Driveline Differential Support Insulator (G1775376) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle- Differential - Vehicles without- Active Driveline Differential Support Insulator (G1775376) / Removal and Installation

GENERAL EQUIPMENT

GENERAL EQUIPMENT

REMOVAL

NOTES:

  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.

Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

Disconnect the startup battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Remove the fuel tank.

Refer to: Fuel Tank (310-01B Fuel Tank and Lines - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Fuel Tank (310-01C Fuel Tank and Lines - GTDi 2.0L Petrol/GTDi 2.0L Petrol - SULEV, Removal and Installation).

Refer to: Fuel Tank (310-01C Fuel Tank and Lines - GTDi 2.0L Petrol/GTDi 2.0L Petrol - SULEV, Removal and Installation).

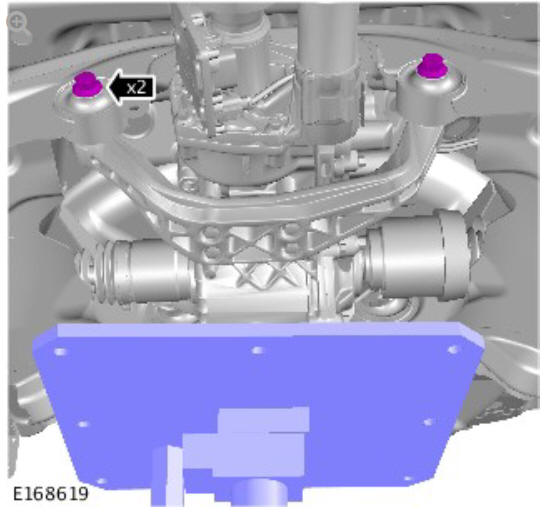

Support the rear differential using a transmission jack.

General Equipment: Transmission jack

CAUTION:

Discard the bolts.

Rear drive axle_differential - Vehicles without- Active driveline differential support insulator (G1775376) Removal and installation

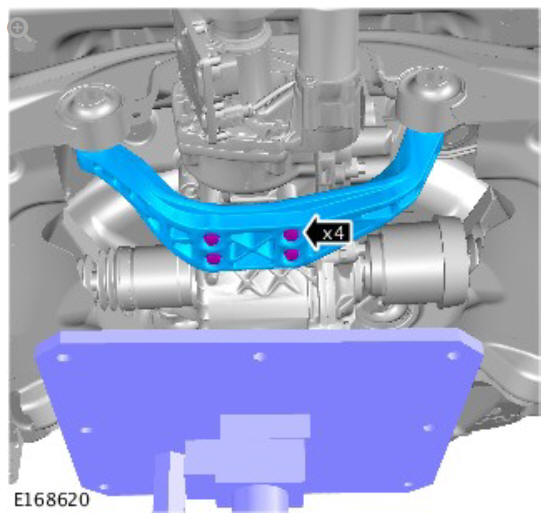

General Equipment: Transmission jack

CAUTION:

Discard the bolts.

Rear drive axle_differential - Vehicles without- Active driveline differential support insulator (G1775376) Removal and installation

General Equipment: Transmission jack

INSTALLATION

CAUTION:

Make sure that new bolts are installed.

Rear drive axle_differential - Vehicles without- Active driveline differential support insulator (G1775376) Removal and installation

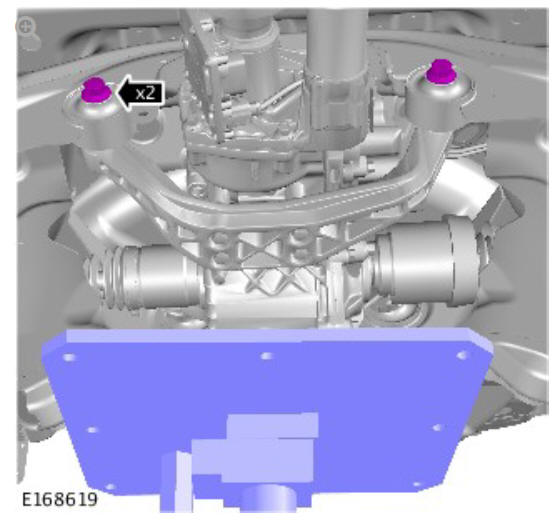

General Equipment: Transmission jack

Torque: 29 Nm

CAUTION:

Make sure that new bolts are installed.

Rear drive axle_differential - Vehicles without- Active driveline differential support insulator (G1775376) Removal and installation

General Equipment: Transmission jack

Torque: 175 Nm

Install the fuel tank.

Refer to: Fuel Tank (310-01B Fuel Tank and Lines - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Fuel Tank (310-01C Fuel Tank and Lines - GTDi 2.0L Petrol/GTDi 2.0L Petrol - SULEV, Removal and Installation).

Refer to: Fuel Tank (310-01C Fuel Tank and Lines - GTDi 2.0L Petrol/GTDi 2.0L Petrol - SULEV, Removal and Installation).

Connect the startup battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
