Land Rover Discovery: Rear Drive Halfshafts Inner Constant Velocity Joint Boot (G1791656) / Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Halfshafts Inner Constant Velocity Joint Boot (G1791656) / Rear Drive Halfshafts Inner Constant Velocity Joint Boot (G1791656) / Installation

Installation

CAUTION:

Extreme cleanliness must be exercised when handling these components.

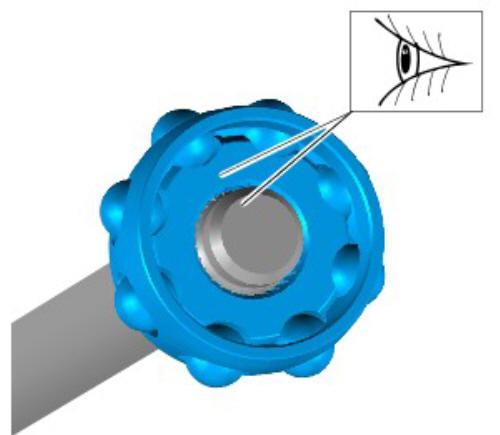

Clean and inspect the components for deterioration.

NOTE:

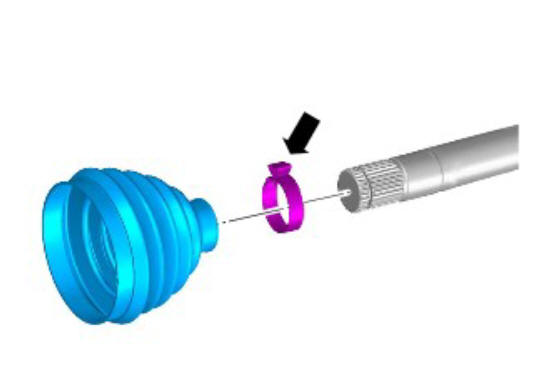

Make sure that new retaining clip and inner joint boot are to be installed.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Installation

NOTE:

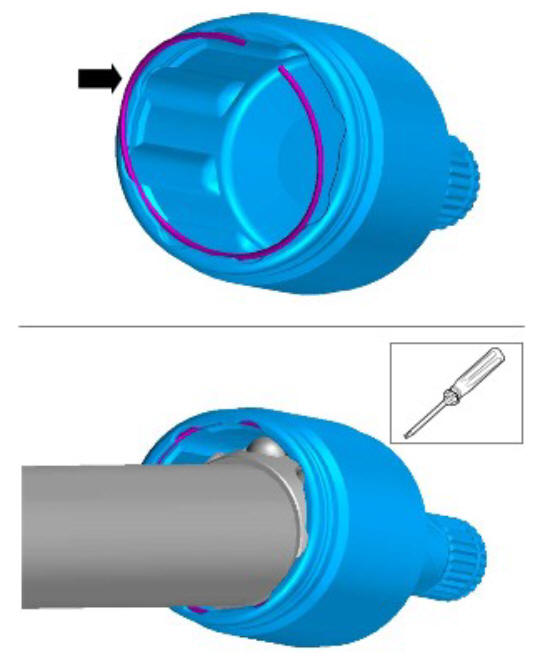

Make sure that the component is installed to the noted removal position.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Installation

NOTE:

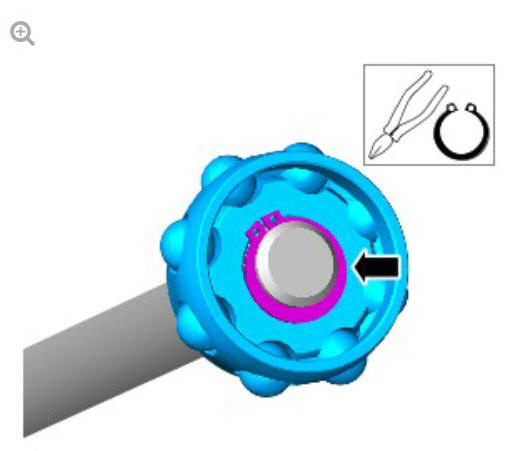

Make sure a new retaining ring is to be installed.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Installation

NOTE:

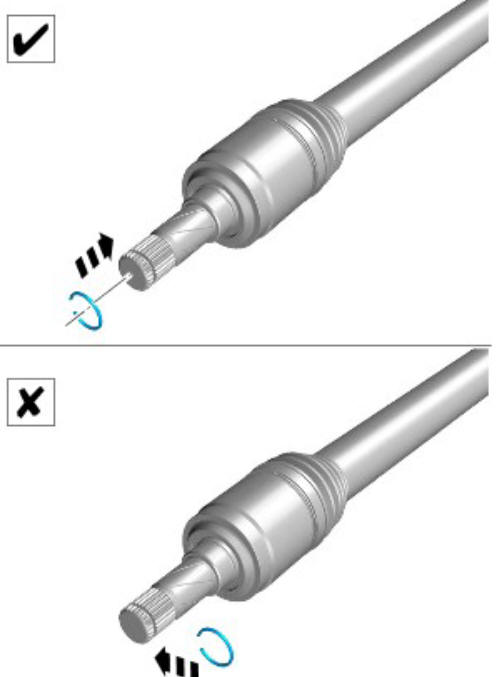

Make sure that the component is installed to the noted removal position.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Installation

CAUTION:

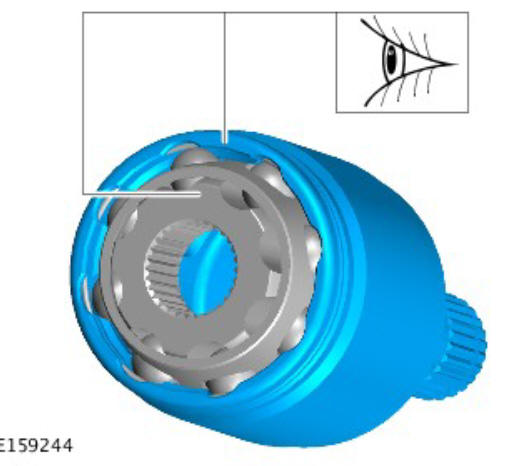

Make sure that the retaining ring is correctly located

Rear drive halfshafts inner constant velocity joint boot (G1791656) Installation

  • Pack the CV joint with the grease supplied.

NOTE:

Make sure a new retaining ring is to be installed.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Installation

NOTE:

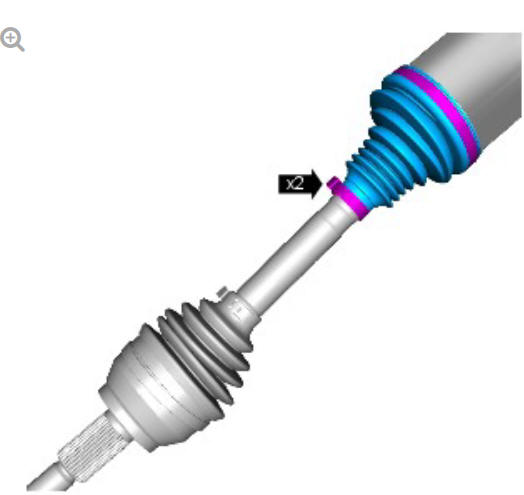

Make sure a new retaining ring is to be installed.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Installation

Refer to: Rear Halfshaft RH (205-05, Removal and Installation).

Refer to: Rear Halfshaft LH (205-05, Removal and Installation).
