Land Rover Discovery: Rear end Sheet Metal
Repairs Rear
Wheelhouse Outer (G1770944)
- Removal
Removal
NOTE:
The rear wheelhouse outer is installed in conjunction with:
- Rear bumper cover
- Side panel
- Quarter panel
- Quarter panel lower extension
- Inner quarter panel upper
- Fuel tank filler pipe
- Rocker panel
.23.jpg)

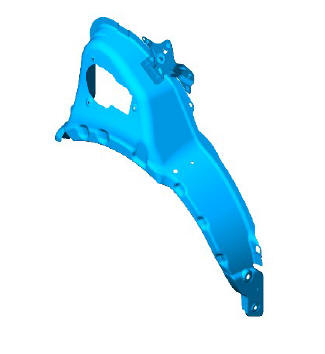

- The rear wheelhouse outer s serviced as indicated.
- Before commencing this procedure make sure that you are aware of
all Health and Safety requirements.
For additional information, refer to: Health and Safety Precautions
(100-00, Description and Operation).
- For further information on the methods, tools and fixings used in
this procedure refer to the body repairs - general information
section.
NOTES:
- For additional information, refer to: Rear Bumper Cover (501-19,
Removal and Installation).
- For additional information, refer to: Side Panel (501-29, Removal
and Installation).
- For additional information, refer to: Quarter Panel (501-30, Removal
and Installation).
- For additional information, refer to: Quarter Panel Lower Extension
(501-30, Removal and Installation).
- For additional information, refer to: Inner Quarter Panel Upper
(501-30, Removal and Installation).
NOTE:
Right hand only.
- For additional information, refer to: Fuel Tank Filler Pipe (310-01A,
Removal and Installation).
- For additional information, refer to: Rocker Panel (501-29, Removal
and Installation).
.24.jpg)

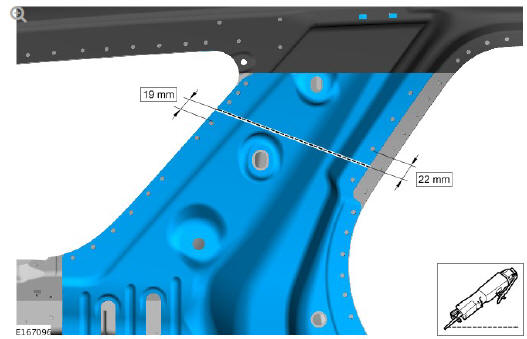

- Cut the inner quarter panel upper as indicated.
.25.jpg)

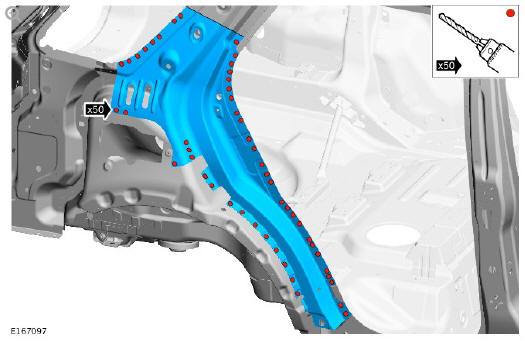

- Remove the spot welds as indicated.
- Carefully separate the joints and remove the inner quarter panel
upper.
.26.jpg)

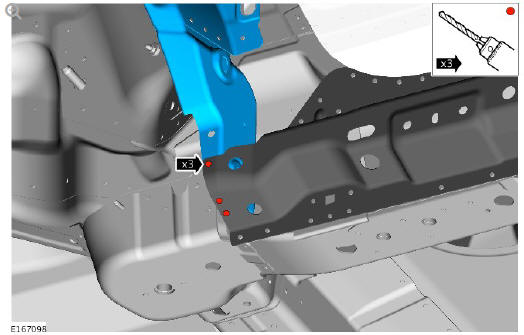

- Remove the spot welds as indicated.
.27.jpg)

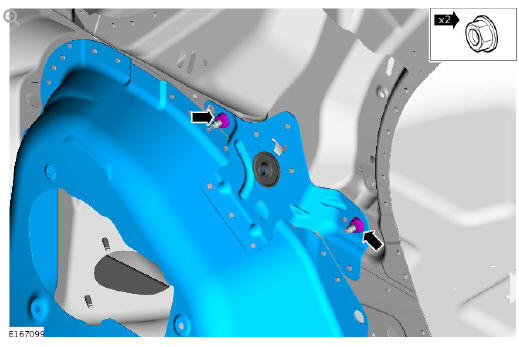

- Remove the retaining nuts as indicated.
.28.jpg)

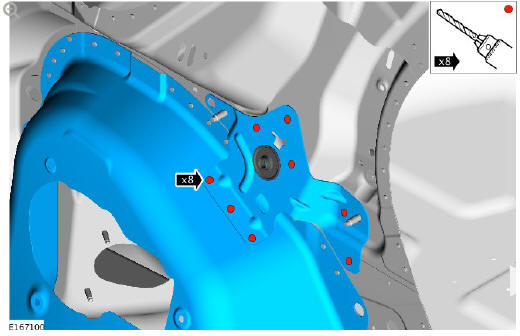

- Remove the spot welds and remove the bracket to reveal hidden
spot welds as indicated.
.29.jpg)

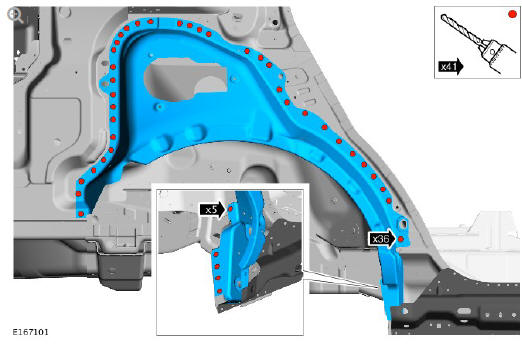

- Remove the spot welds as indicated.
- Carefully separate the joints and remove the rear wheelhouse outer.
