Land Rover Discovery: Rear Seat Backrest Cover (G1796021) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Seating / Rear Seat Backrest Cover (G1796021) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • LH illustration shown, RH is similar.

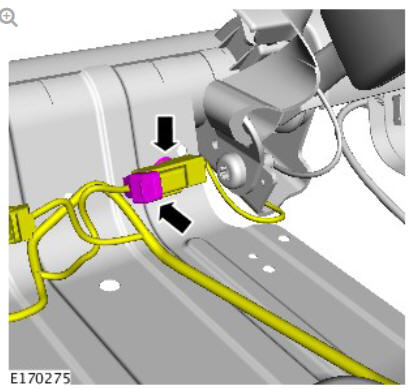

Refer to: Rear Seat (501-10 Seating, Removal and Installation).

NOTE:

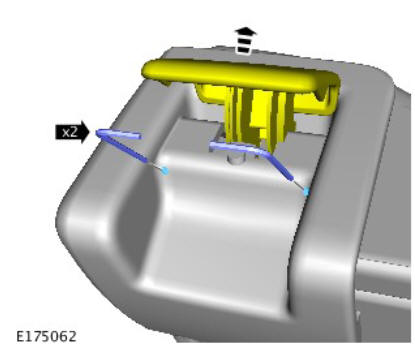

Insert two 3mm Allen keys where shown, to release the retainers.

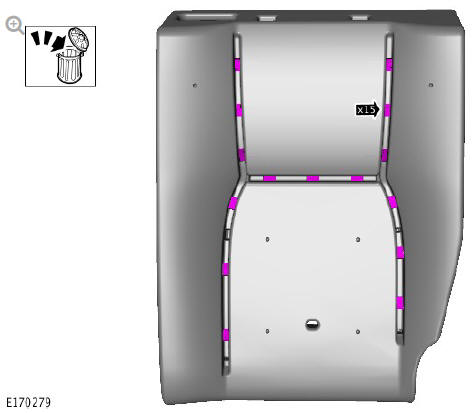

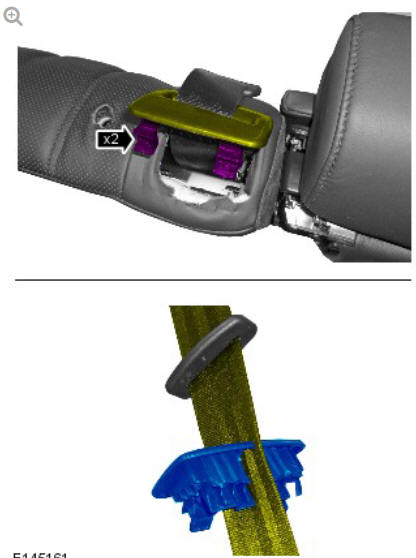

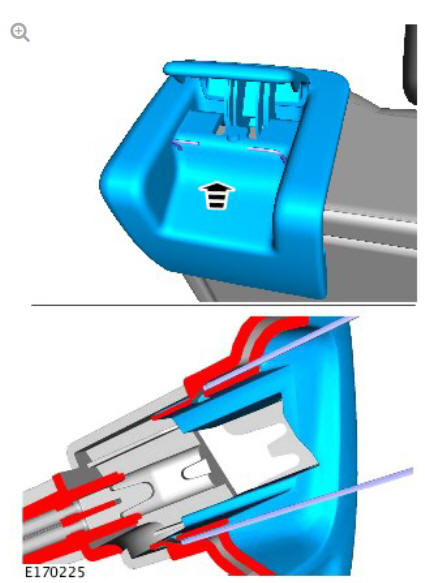

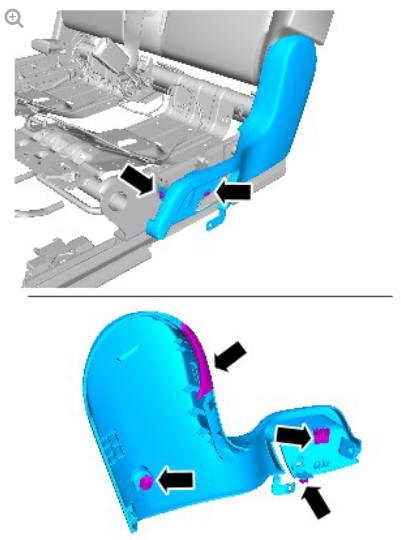

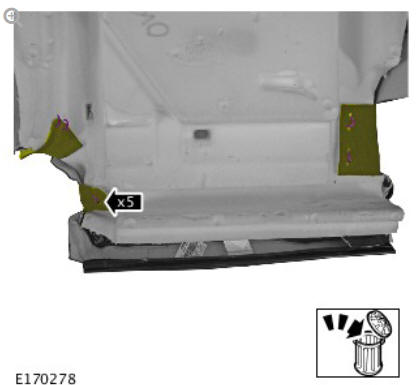

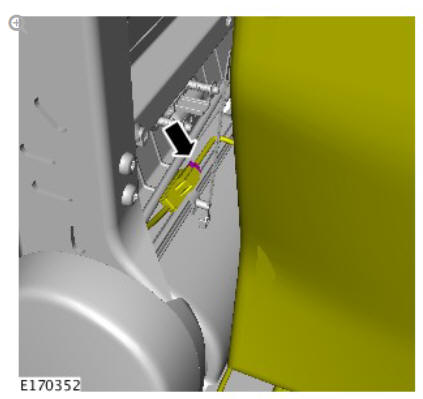

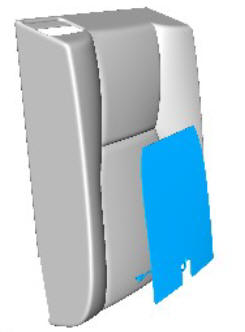

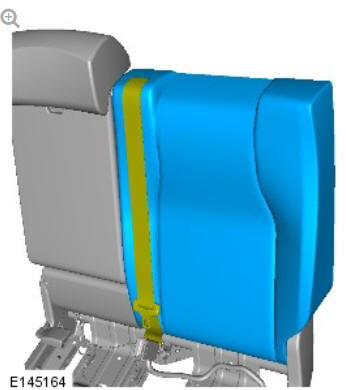

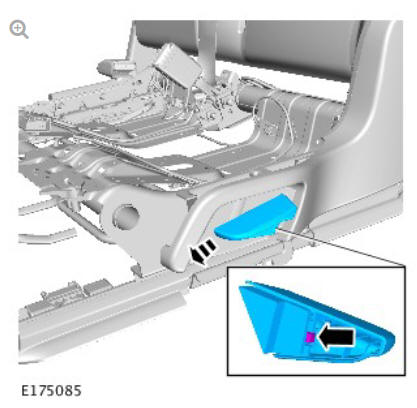

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

NOTE:

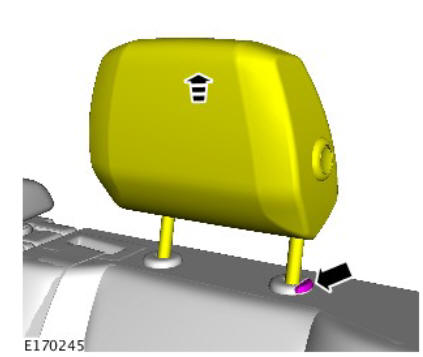

Raise the head restraint to its highest point.

Rear seat backrest cover (G1796021) removal and installation

CAUTION:

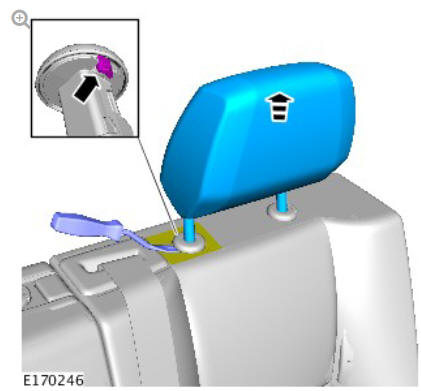

A suitable tool must be used during this step to avoid damage to the head restraint retaining clip.

Rear seat backrest cover (G1796021) removal and installation

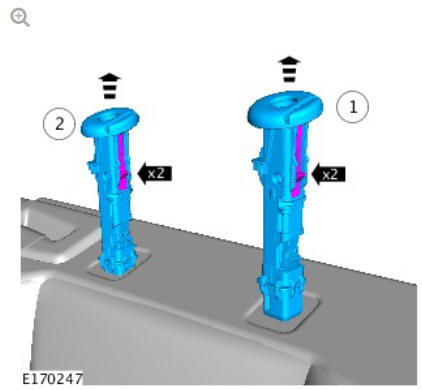

Remove the head restraint.

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

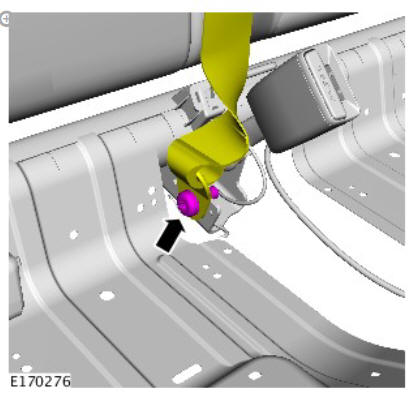

Torque: 40 Nm

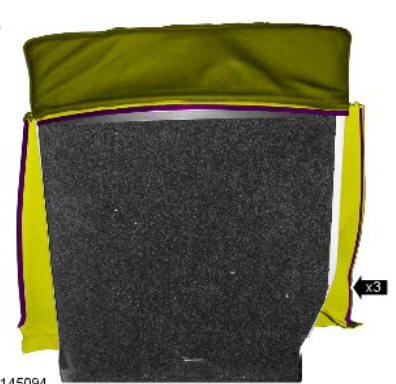

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

CAUTION:

Care must be taken not to damage the component.

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

Rear seat backrest cover (G1796021) removal and installation

INSTALLATION

NOTES:

  • Make sure that new hog rings are installed.

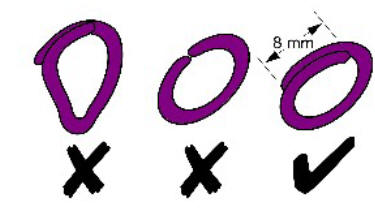

  • Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

Rear seat backrest cover (G1796021) removal and installation

CAUTION:

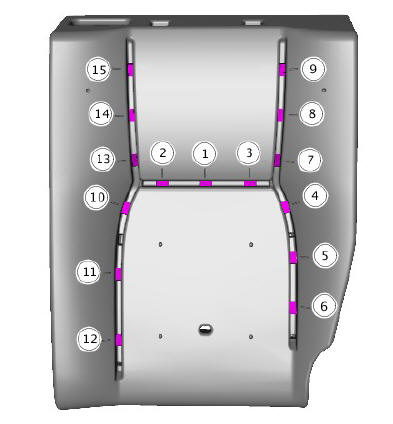

Make sure that new hog rings are installed in the sequence shown.

Rear seat backrest cover (G1796021) removal and installation

To install, reverse the removal procedure.

Rear seat backrest heater mat (G1796020) removal and installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Refer to: Rear Seat Backrest Cover (501-10 Seating, Removal and Installation).

CAUTION:

Care must be taken to avoid damaging the surrounding components.

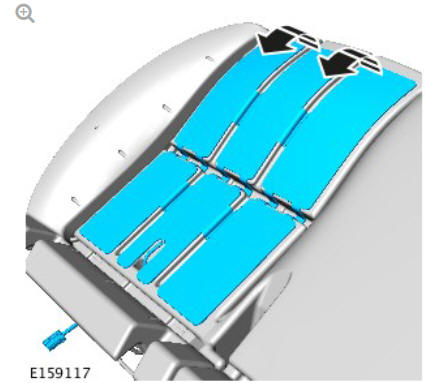

Rear seat backrest heater mat (G1796020) removal and installation

INSTALLATION

To install, reverse the removal procedure

Rear seat cushion heater mat (G1796019) removal and installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Rear Seat (501-10 Seating, Removal and Installation).

NOTE:

LH illustration shown, RH is similar.

Rear seat cushion heater mat (G1796019) removal and installation

INSTALLATION

To install, reverse the removal procedure.
