Land Rover Discovery: Torque Converter - Ingenium i4 2.0l Diesel (G1894240) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Automatic Transmission  Transaxle / Torque Converter - Ingenium i4 2.0l Diesel (G1894240) / Removal and Installation

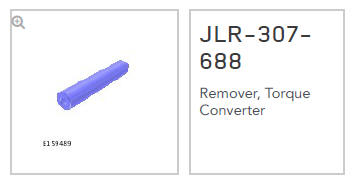

SPECIAL TOOL(S)

SPECIAL TOOL(S)

REMOVAL

WARNING:

Be prepared to collect escaping fluid.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Transmission - INGENIUM I4 2.0L Diesel (307-01 Automatic Transmission/Transaxle, Removal).

Torque Converter - Ingenium i4 2.0l Diesel (g1894240) Removal and Installation

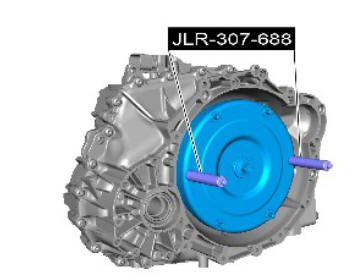

Special Tool(s): JLR-307-688

INSTALLATION

CAUTION:

Make sure that all the component mating faces are clean.

Torque Converter - Ingenium i4 2.0l Diesel (g1894240) Removal and Installation

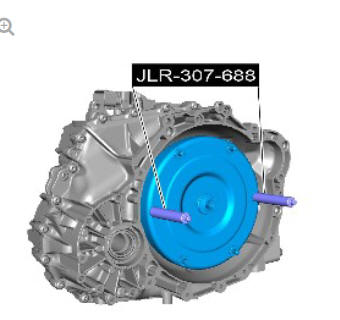

Special Tool(s): JLR-307-688

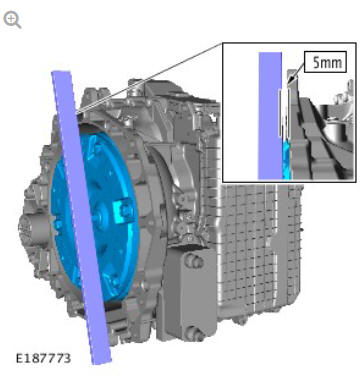

CAUTION:

Make sure the torque converter is fully located into the oil pump drive.

Torque Converter - Ingenium i4 2.0l Diesel (g1894240) Removal and Installation

Refer to: Transmission - INGENIUM I4 2.0L Diesel (307-01 Automatic Transmission/Transaxle, Installation).

Refer to: Transmission Fluid Level Check (307-01 Automatic Transmission/Transaxle, General Procedures).
