Land Rover Discovery: Selector Shaft Seal - Ingenium i4 2.0l Diesel (G1894392) / Removal and
Installation

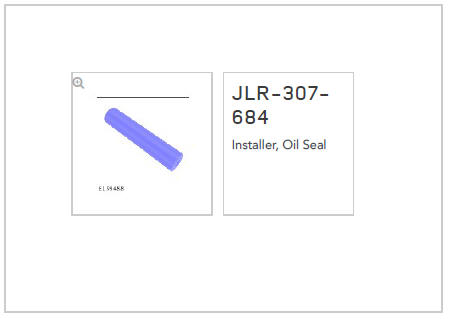

SPECIAL TOOL(S)
![Selector Shaft Seal - Ingenium i4 2.0l Diesel (g1894392) Removal and Installation](images/books/227/index452(3).jpg)
REMOVAL
NOTES:
- Some illustrations may show the transmission removed for clarity.
- Some variation in the illustrations may occur, but the essential
information is always correct.
Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering -
INGENIUM I4 2.0L Diesel, Removal and Installation).

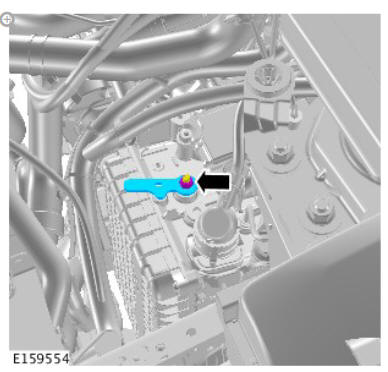

![Selector Shaft Seal - Ingenium i4 2.0l Diesel (g1894392) Removal and Installation](images/books/227/index453(3).jpg)
CAUTION:
Care must be taken when removing the seal to prevent
damage to the components.
![Selector Shaft Seal - Ingenium i4 2.0l Diesel (g1894392) Removal and Installation](images/books/227/index454(3).jpg)

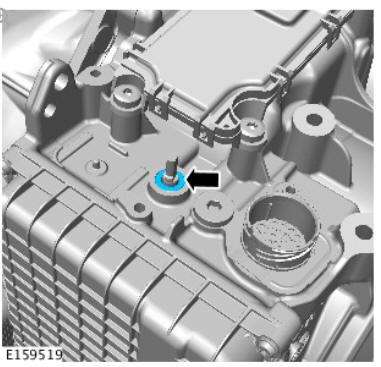

Using a suitable tool, remove and discard the oil seal.
INSTALLATION
CAUTIONS:
- Make sure that the mating faces are clean and free of
foreign material.
- Make sure that the seal is correctly located.
- Make sure a new oil seal is installed.
![Selector Shaft Seal - Ingenium i4 2.0l Diesel (g1894392) Removal and Installation](images/books/227/index455(3).jpg)
Special Tool(s): JLR-307-684
![Selector Shaft Seal - Ingenium i4 2.0l Diesel (g1894392) Removal and Installation](images/books/227/index456(3).jpg)

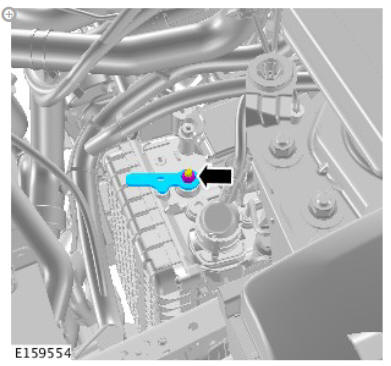

Torque: 10 Nm
Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering -
INGENIUM I4 2.0L Diesel, Removal and Installation).
Sensor Unit (G1948802) Removal and Installation
REMOVAL
CAUTIONS:
- Extreme cleanliness must be exercised when handling this
component.
- Make sure that the area around the component is clean and free of
foreign material.
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Removal steps in this procedure may contain installation details.
Remove the main control valve body.
Refer to: Main Control Valve Body - INGENIUM I4 2.0L Diesel (307-
01 Automatic Transmission/Transaxle, Removal and Installation).
Refer to: Main Control Valve Body - TD4 2.2L Diesel (307-01 Automatic
Transmission/Transaxle, Removal and Installation).
Refer to: Main Control Valve Body - GTDi 2.0L Petrol/GTDi 2.0L
Petrol - SULEV (307-01 Automatic Transmission/Transaxle, Removal
and Installation).

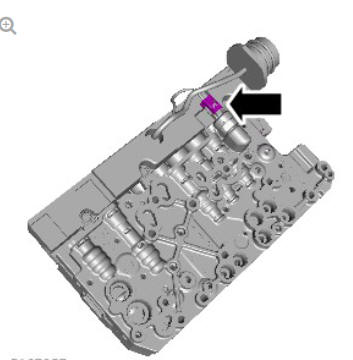

![Sensor Unit (G1948802) Removal and Installation](images/books/227/index457(3).jpg)
![Sensor Unit (G1948802) Removal and Installation](images/books/227/index458(3).jpg)

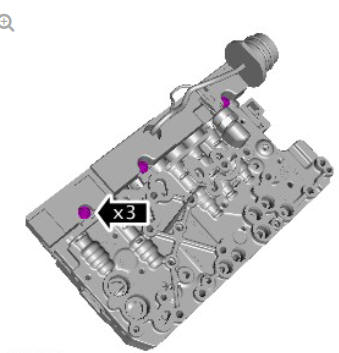

Torque: 6 Nm

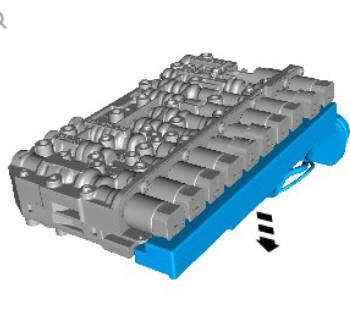

NOTE:
Note the fitted position of the sensor unit connectors, prior
to removal.
![Sensor Unit (G1948802) Removal and Installation](images/books/227/index459(3).jpg)
INSTALLATION
CAUTION:
Make sure that the wiring harness is correctly routed.
To install, reverse the removal procedure.
Specifications

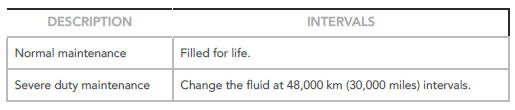

Maintenance
CAUTION:
Use only shell L12108 (ZF Lifeguard 8) Automatic transmission fluid.
Use of any other fluids may result in a transmission malfunction or
failure.
![Maintenance](images/books/227/index460(3).jpg)
Capacities
![Capacities](images/books/227/index461(3).jpg)
Lubricants, Fluids, Sealers and Adhesives
![Lubricants, Fluids, Sealers and Adhesives](images/books/227/index462(2).jpg)
![Lubricants, Fluids, Sealers and Adhesives](images/books/227/index463(3).jpg)

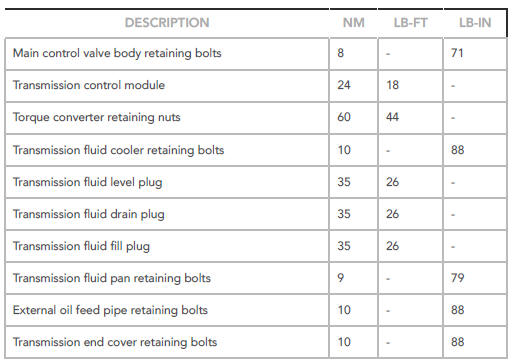

Torque Specifications
![Torque Specifications](images/books/227/index464(3).jpg)

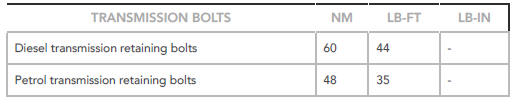

Torque Specifications
![Torque Specifications](images/books/227/index465(3).jpg)
