Land Rover Discovery: Main Control Valve Body Solenoids (G1948467) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Automatic Transmission  Transaxle / Main Control Valve Body Solenoids (G1948467) / Removal and Installation

REMOVAL

WARNING:

Be prepared to collect escaping fluids.

CAUTIONS:

  • Make sure that the mating faces are clean and free of foreign material.
  • Extreme cleanliness must be exercised when handling these components.

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Remove the main control valve body.

Refer to: Main Control Valve Body - INGENIUM I4 2.0L Diesel (307- 01 Automatic Transmission/Transaxle, Removal and Installation).

Refer to: Main Control Valve Body - TD4 2.2L Diesel (307-01 Automatic Transmission/Transaxle, Removal and Installation).

Refer to: Main Control Valve Body - GTDi 2.0L Petrol/GTDi 2.0L Petrol - SULEV (307-01 Automatic Transmission/Transaxle, Removal and Installation).

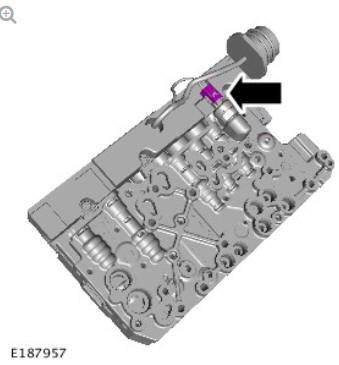

Main Control Valve Body Solenoids (G1948467) Removal and Installation

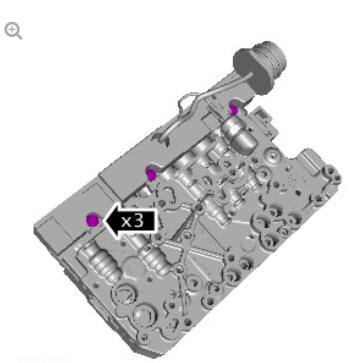

Main Control Valve Body Solenoids (G1948467) Removal and Installation

Torque: 6 Nm

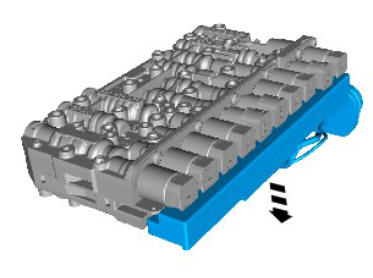

Main Control Valve Body Solenoids (G1948467) Removal and Installation

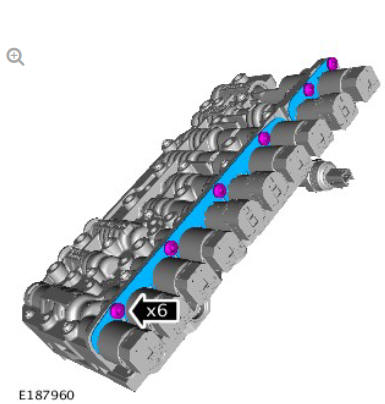

Main Control Valve Body Solenoids (G1948467) Removal and Installation

Torque: 6 Nm

NOTE:

Note the position of the components prior to removal.

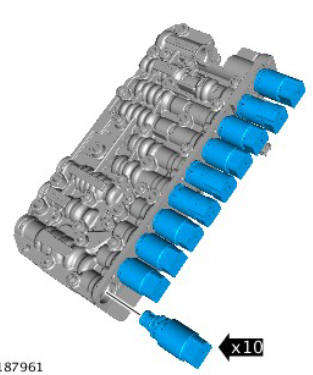

Main Control Valve Body Solenoids (G1948467) Removal and Installation

INSTALLATION

  1. To install reverse the removal procedure.
  2. Using the approved Land Rover diagnostic equipment, run the Automatic transmission valve block application.
