Land Rover Discovery: Transmission - Ingenium i4 2.0l
Diesel (G1887785) / Removal
REMOVAL

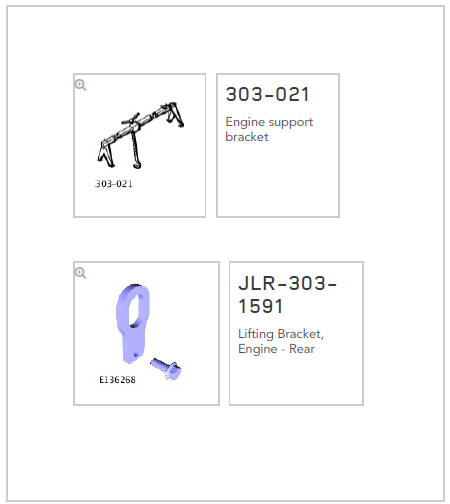

SPECIAL TOOL(S)
.jpg)
GENERAL EQUIPMENT
Transmission jack
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some illustrations may show the transmission removed for clarity.

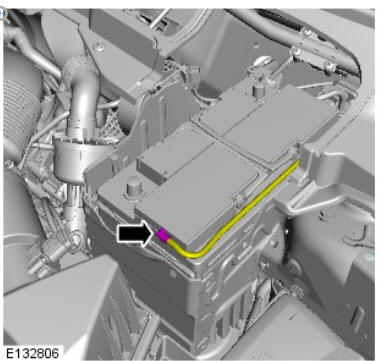

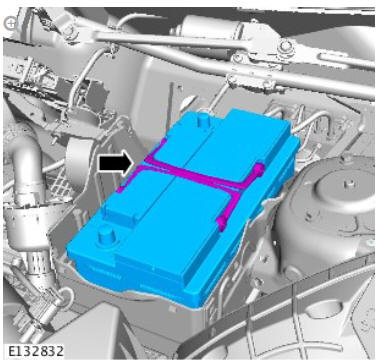

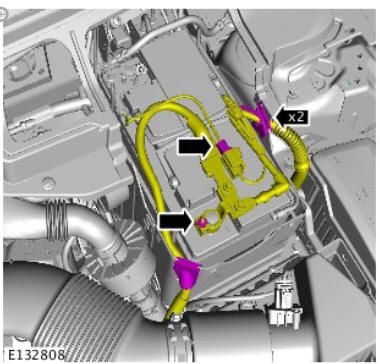

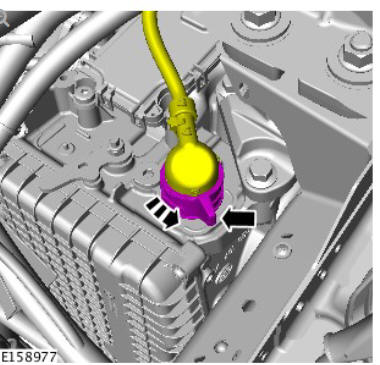

Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior
Trim and Ornamentation, Removal and Installation).
Refer to: Plenum Chamber (412-01 Climate Control, Removal and
Installation).
Refer to: Engine Undershield (501-02 Front End Body Panels,
Removal and Installation).
Refer to: Starter Motor (303-06B Starting System - INGENIUM I4
2.0L Diesel, Removal and Installation).
Refer to: Charge Air Cooler (303-12B Intake Air Distribution and
Filtering - INGENIUM I4 2.0L Diesel, Removal and Installation).

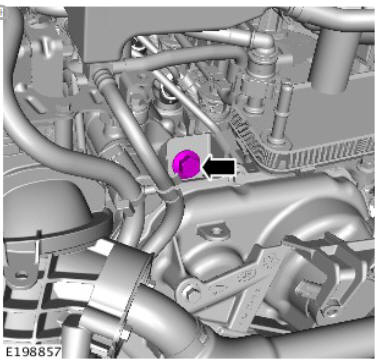

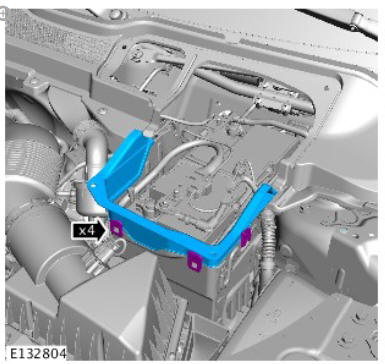

.jpg)

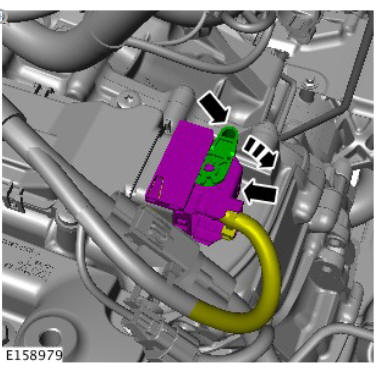

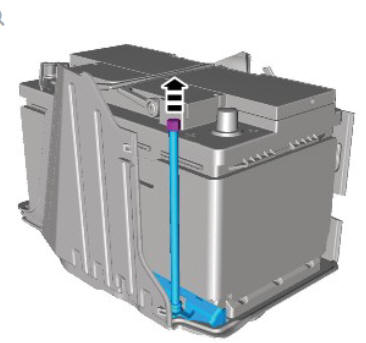

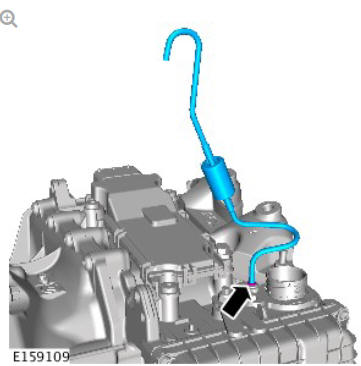

.jpg)

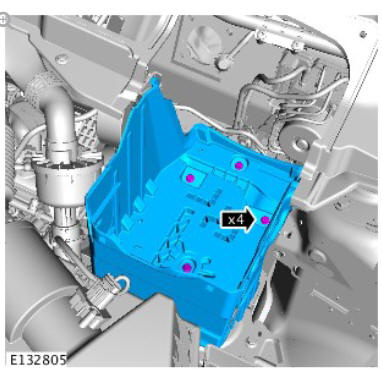

.jpg)
.jpg)

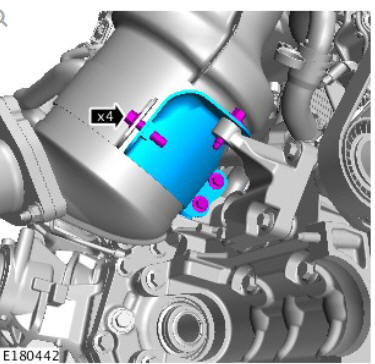

.jpg)
.jpg)

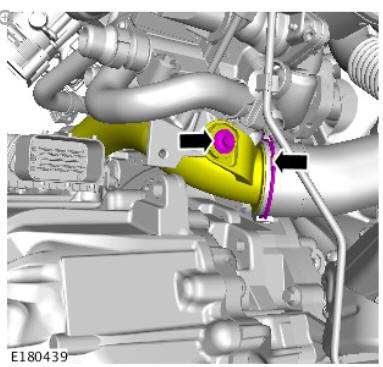

.jpg)
.jpg)
CAUTION:
Be prepared to collect escaping coolant.

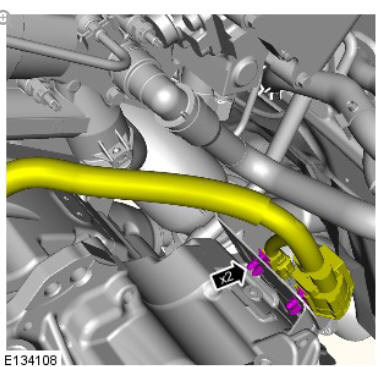

.jpg)

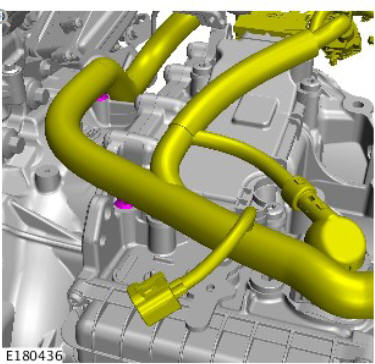

.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
- Repeat the above step for the other side.

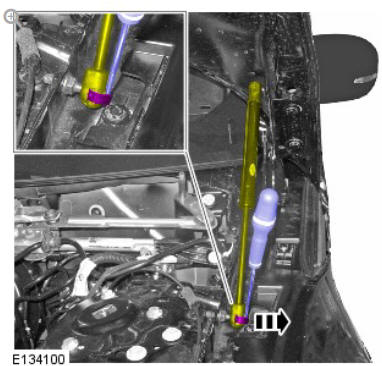

- Secure the hood at the highest position.

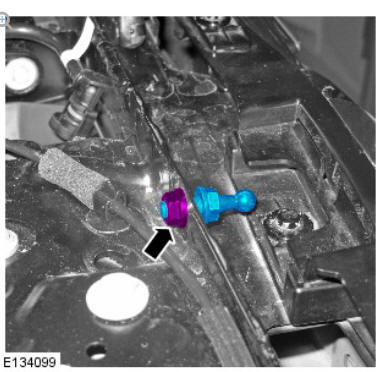

.jpg)
Repeat the above step for the other side.
.jpg)
.jpg)

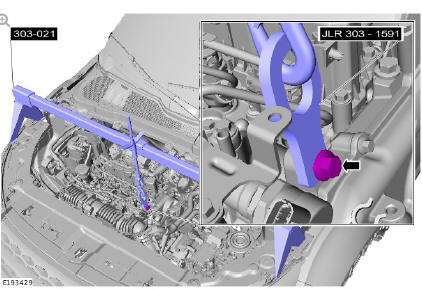

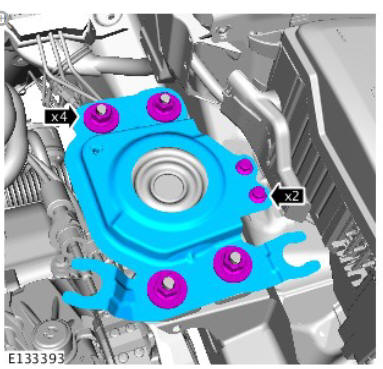

Support the engine.
Install the Special Tool(s): 303-021, JLR-303-1591
Torque: 50 Nm

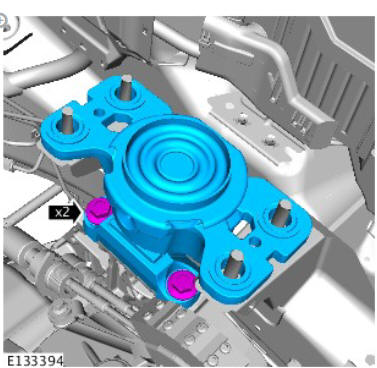

.jpg)
.jpg)
.jpg)
NOTE:
This step is only necessary when installing a new component.
Refer to: Transmission Fluid Drain and Refill (307-01 Automatic
Transmission/Transaxle, General Procedures).
Refer to: Front Subframe (502-00 Uni-Body, Subframe and
Mounting System, Removal and Installation).
CAUTION:
Discard the nut.
Refer to: Front Left Halfshaft (205-04 Front Drive Halfshafts,
Removal and Installation).
Refer to: Front Right Halfshaft - RHD AWD/LHD AWD (205-04 Front
Drive Halfshafts, Removal and Installation).
CAUTIONS:
- To avoid damage to the joint or gaiter, do not allow the
driveshaft to hang.
- Make sure that the driveshaft is supported with suitable
retaining straps.

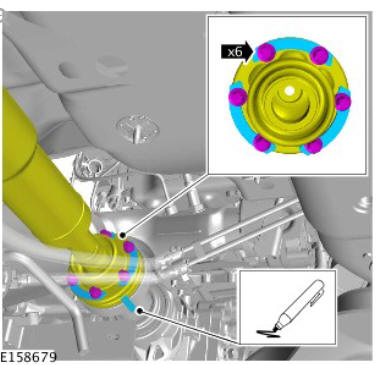

- Discard the bolts.
- Mark the components to aid installation.

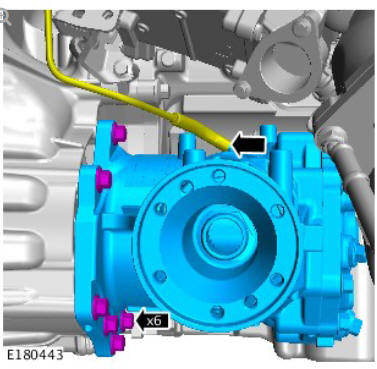

.jpg)

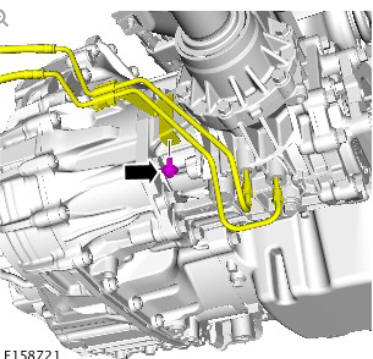

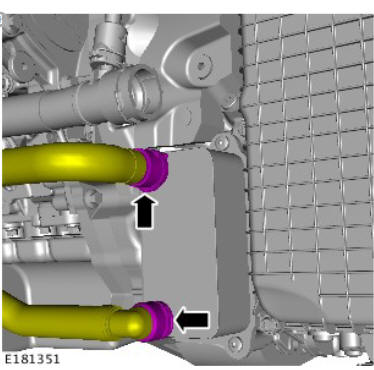

CAUTIONS:
- Be prepared to collect escaping fluids.
- Make sure that all openings are sealed. Use new blanking
caps.

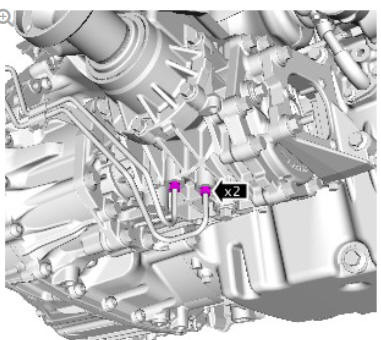

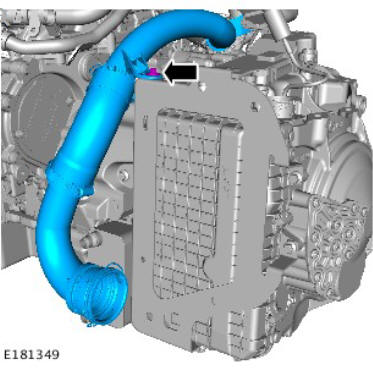

.jpg)
.jpg)
.jpg)
.jpg)
WARNING:
This step requires the aid of another technician.
CAUTION:
Be prepared to collect escaping fluids.
.jpg)
WARNING:
Make sure that the transmission is secured with suitable
retaining straps.

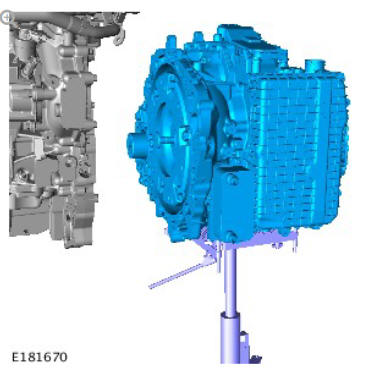

- Using a suitable hydraulic jack, support the transmission.
- General Equipment: Transmission jack

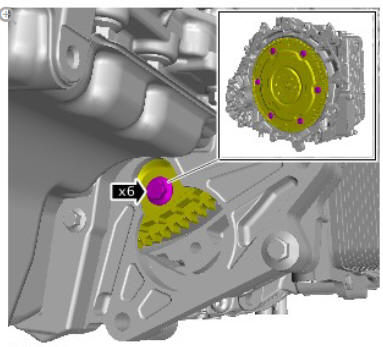

.jpg)

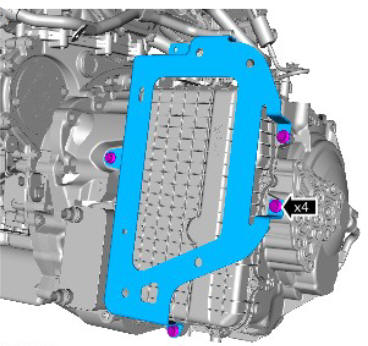

.jpg)
.jpg)

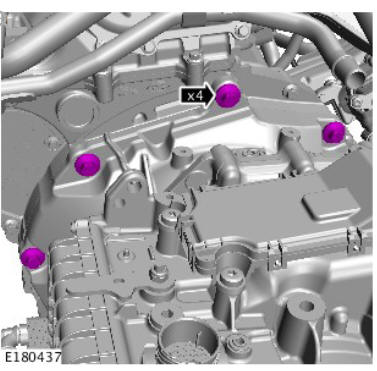

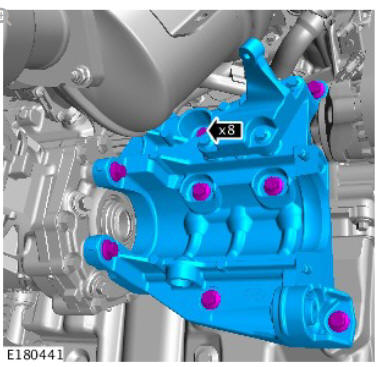

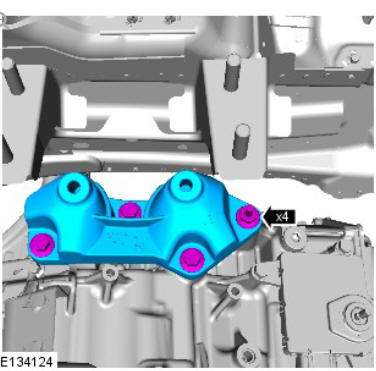

CAUTION:
Discard the bolts

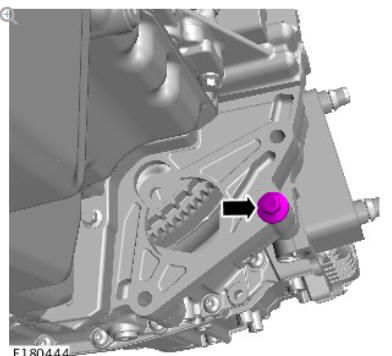

.jpg)

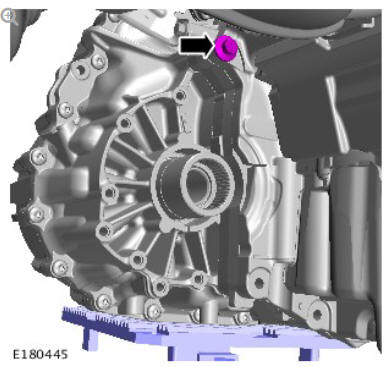

NOTE:
Using a suitable transmission jack support the differential
case.

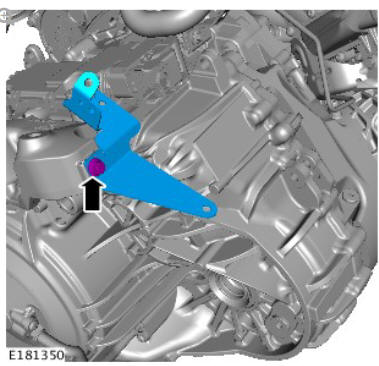

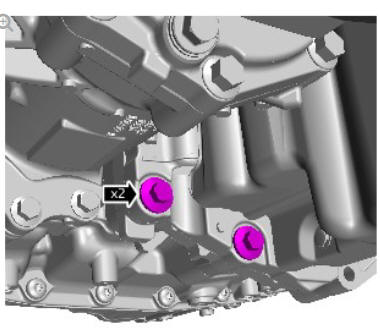

.jpg)

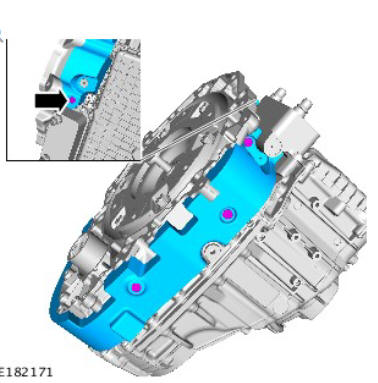

WARNING:
This step requires the aid of another technician.
CAUTIONS:
- Make sure that the dowels are still located on the engine
and not the transmission.
- On removal and installation of the transmission, make sure
that the transmission does not damage the brake pipe.
- Make sure that the torque converter remains in the
transmission.
.jpg)
NOTE:
Do not disassemble further if the component is removed for
access only.
.jpg)
.jpg)
.jpg)
