Land Rover Discovery: Uni-body, Subframe and Mounting System Rear Subframe Bushing (G1779466) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Frame and mounting / Uni-body, Subframe and Mounting System Rear Subframe Bushing (G1779466) / Removal and Installation

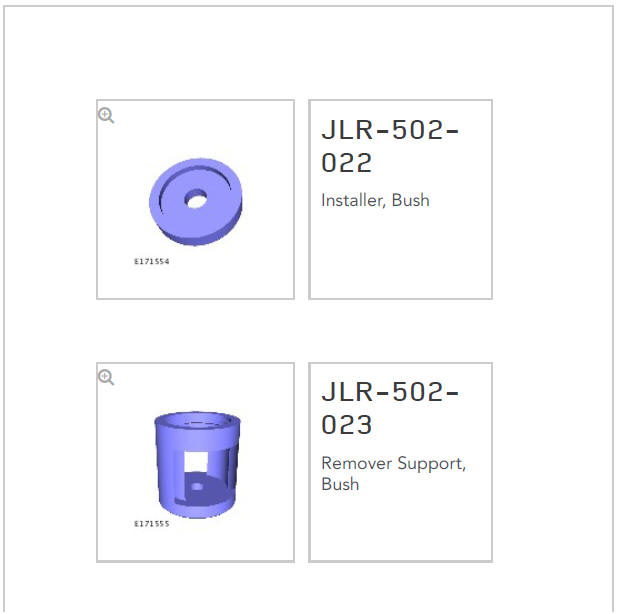

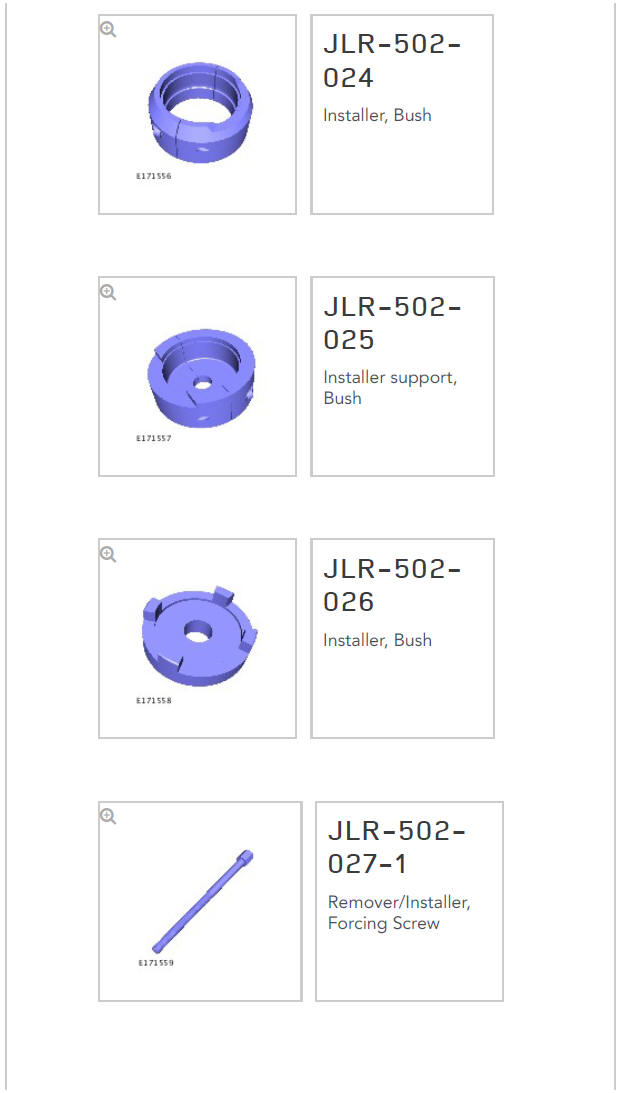

SPECIAL TOOL(S)

SPECIAL TOOL(S)

SPECIAL TOOL(S)

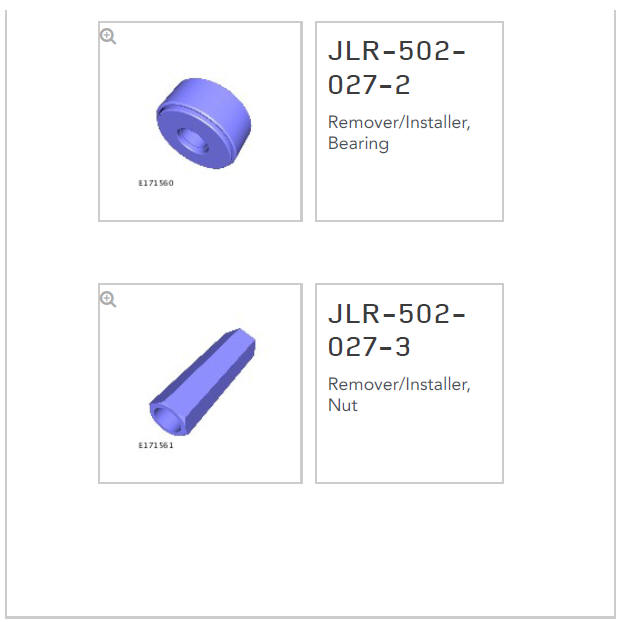

SPECIAL TOOL(S)

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.

Refer to: Rear Subframe - AWD (502-00, Removal and Installation).

Refer to: Rear Subframe - FWD (502-00, Removal and Installation).

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

CAUTION:

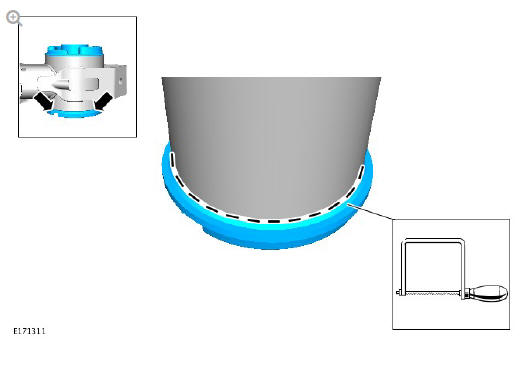

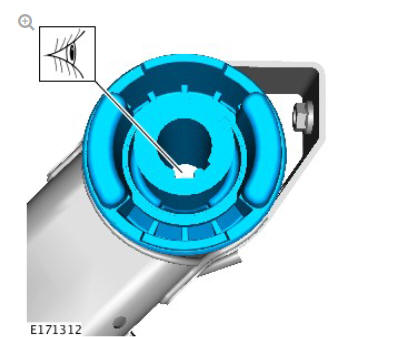

Note the orientation of the bush before removal.

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

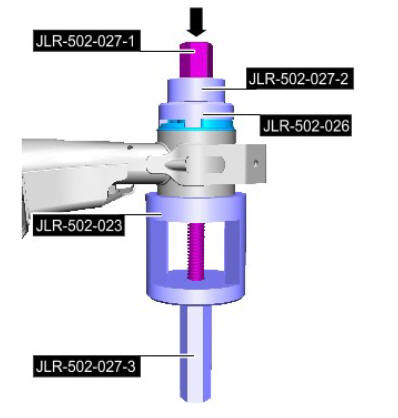

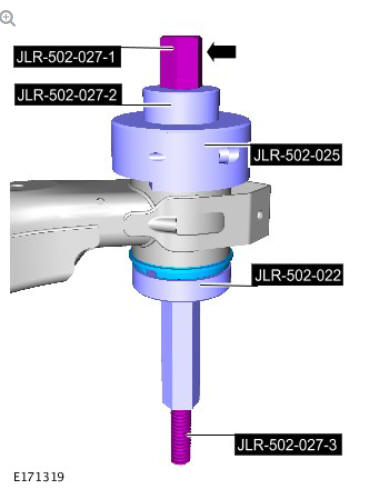

Special Tool(s): JLR-502-023, JLR-502-026, JLR-502-027-1, JLR-502- 027-2, JLR-502-027-3

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

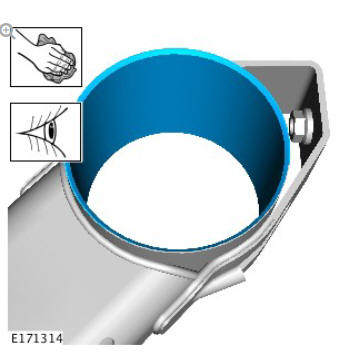

Clean and inspect the component for deterioration.

INSTALLATION

CAUTION:

Make sure that the component is correctly installed.

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

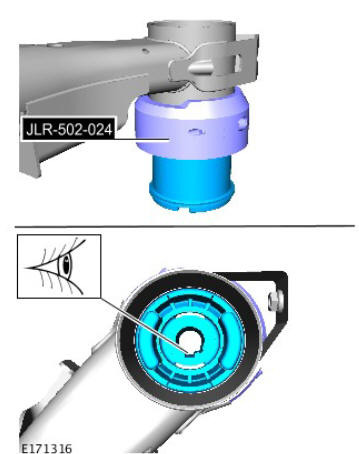

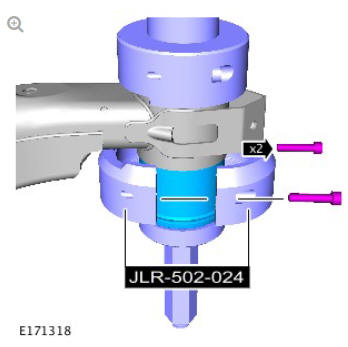

Special Tool(s): JLR-502-024

CAUTION:

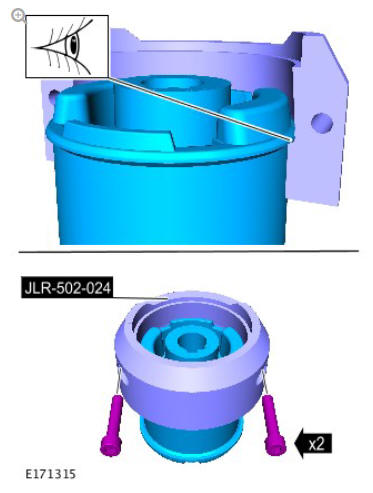

Make sure that the bush is installed to the position noted on removal.

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

Special Tool(s): JLR-502-024

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

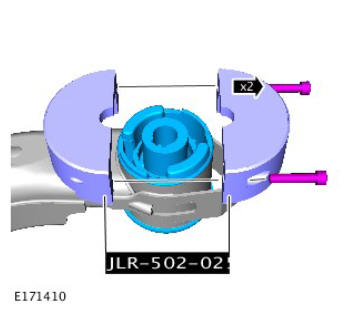

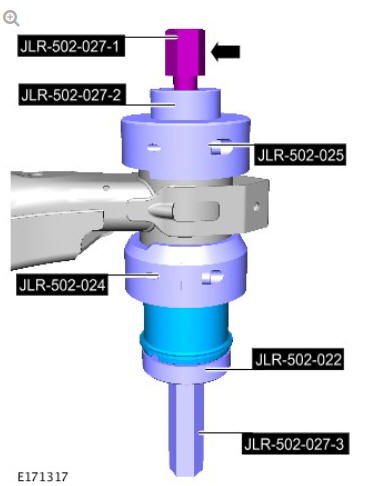

Special Tool(s): JLR-502-022, JLR-502-024, JLR-502-025, JLR-502- 027-1, JLR-502-027-2, JLR-502-027-3

NOTE:

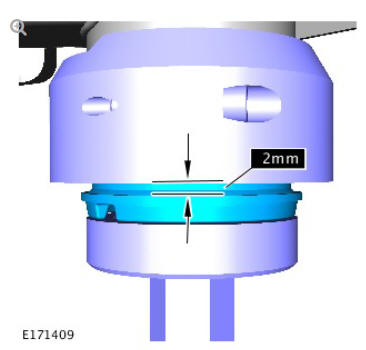

Leave a 2mm gap between the lip of the bush and the tool.

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

Special Tool(s): JLR-502-024

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

Special Tool(s): JLR-502-022, JLR-502-025, JLR-502-027-1, JLR-502- 027-2, JLR-502-027-3

Uni-body, subframe and mounting system rear subframe bushing (g1779466) removal and installation

Remove the special tools.

Refer to: Rear Subframe - AWD (502-00, Removal and Installation).

Refer to: Rear Subframe - FWD (502-00, Removal and Installation).

Uni-body, subframe and mounting system specifications

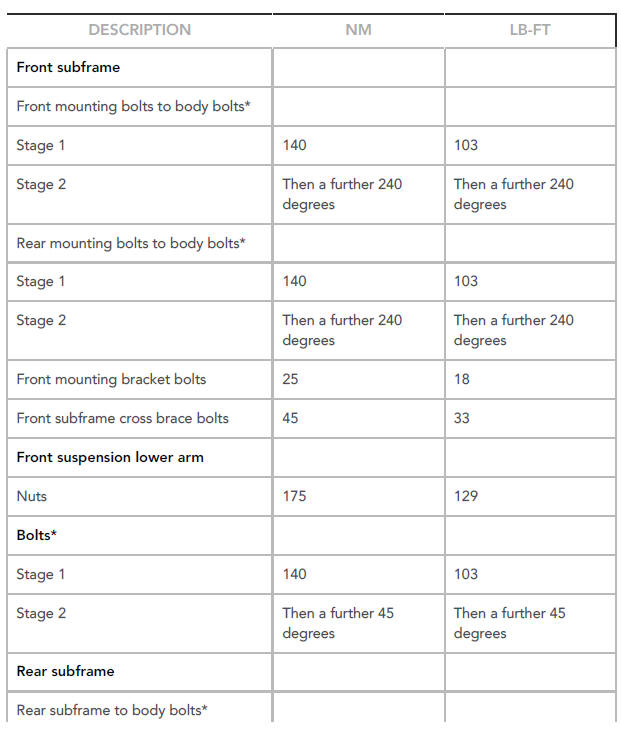

SPECIFICATIONS

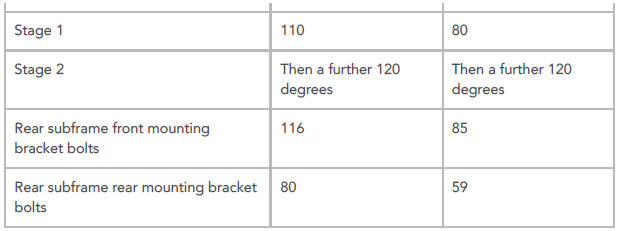

Uni-body, subframe and mounting system specifications

Uni-body, subframe and mounting system specifications
