Land Rover Discovery: AWD Transfer Case Rear Seal - Vehicles With- Active Driveline (G1660845)
/ Removal and Installation

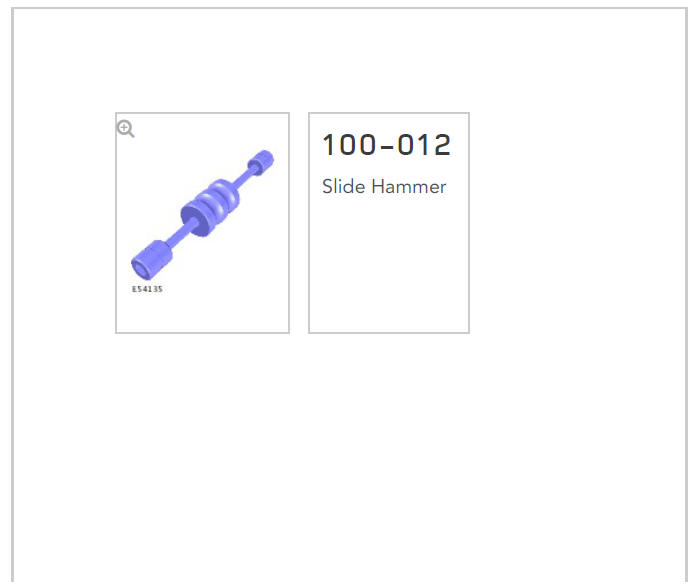

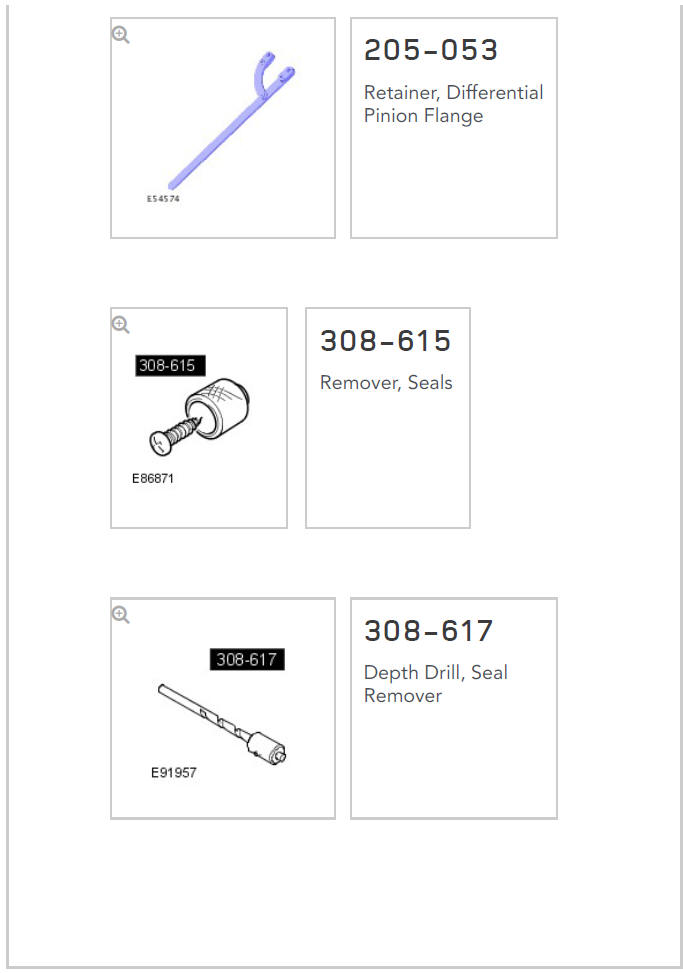

SPECIAL TOOL(S)
.jpg)
.jpg)
PART(S)
.jpg)
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
All vehicles
WARNING:
Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
Refer to: Engine Undershield (501-02 Front End Body Panels,
Removal and Installation).
Vehicles with diesel particulate filter (DPF)

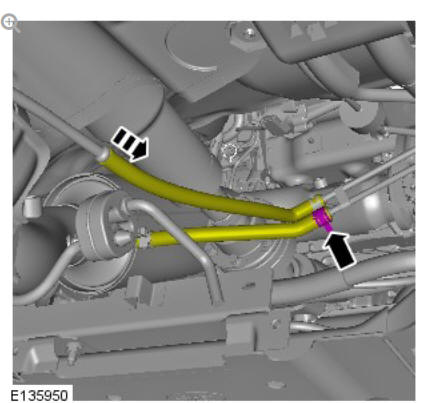

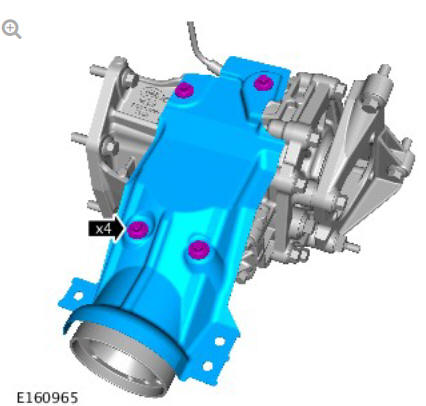

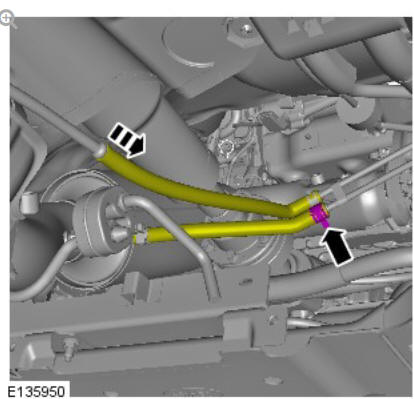

.jpg)
All vehicles
CAUTION:
Discard the bolts.

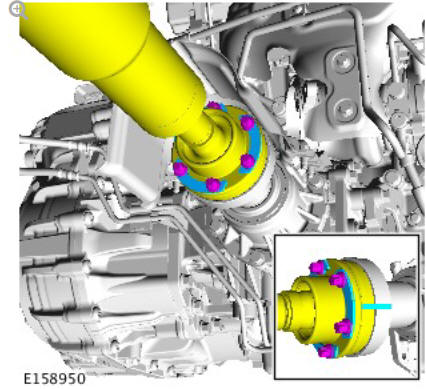

.jpg)
.jpg)
CAUTION:
This step must be carried out to make sure that the drive
pinion nut is correctly tightened on assembly.
.jpg)

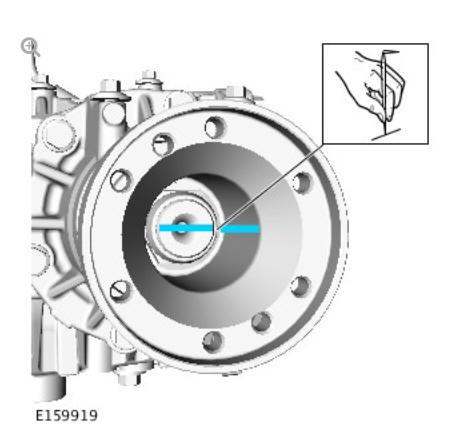

Accurately scribe a line to mark the drive pinion shaft to the drive
pinion nut and pinion flange.
.jpg)

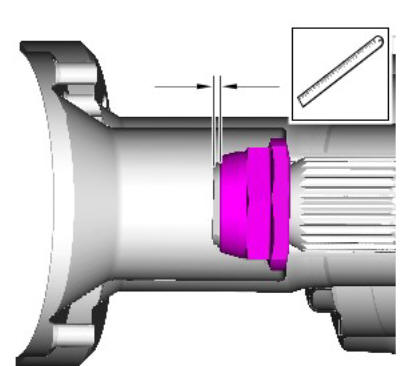

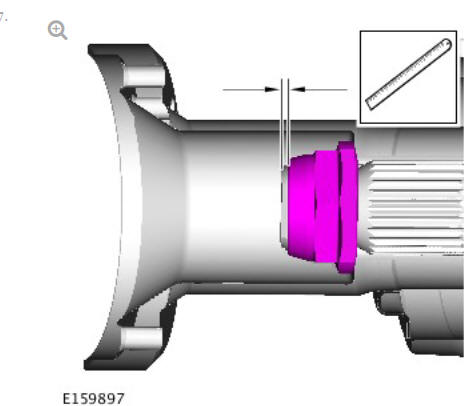

Measure the depth of the pinion nut on the pinion shaft.
NOTE:
Position cloth to collect fluid spillage.
.jpg)

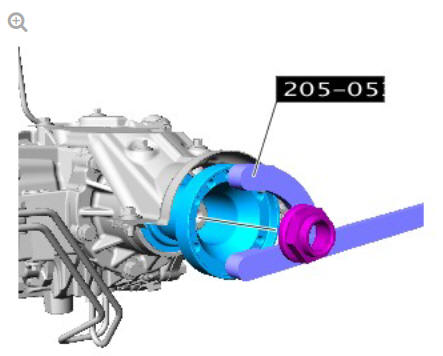

Special Tool(s): 205-053
.jpg)

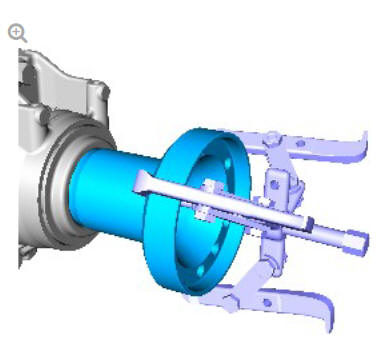

Using a suitable tool, remove the pinion flange.
.jpg)

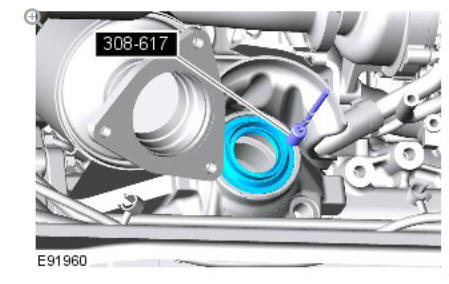

Special Tool(s): 308-617
CAUTIONS:
- Make sure that the area around the component is clean
and free of foreign material.
- Take extra care not to damage the mating faces.
.jpg)

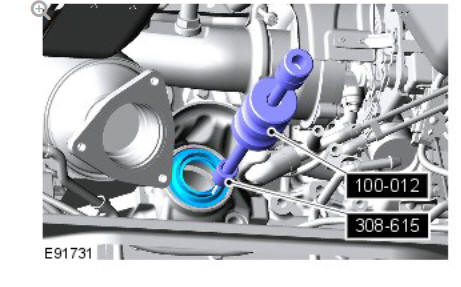

Special Tool(s): 308-615, 100-012
INSTALLATION
All vehicles

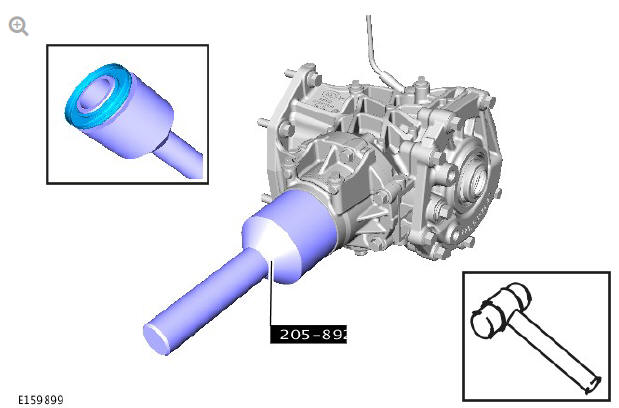

.jpg)
CAUTIONS:
- Make sure the drive pinion flange scribed marks are
aligned.
- Make sure the mark on the drive pinion nut is never
tightened short of the scribed mark on the drive pinion
shaft.
- Make sure the mark on the drive pinion nut is never
tightened past the scribed mark on the drive pinion shaft.
- If the nut is tightened passed the alignment marks do not
loosen it again.

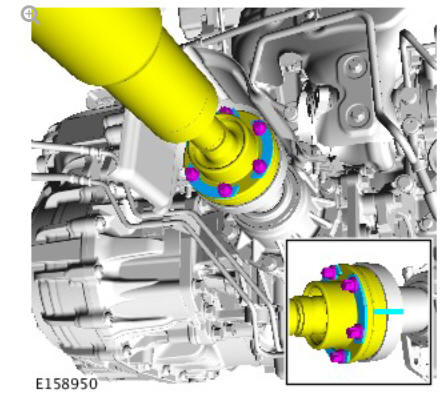

.jpg)
.jpg)
Make sure the pinion flange nut is installed to same the depth as
when removed..
.jpg)
Torque: 10 Nm
.jpg)
Make sure new Driveshaft bolts are installed.
Renew Part: Driveshaft to front output flange bolts.
Torque: 40 Nm
Vehicles with diesel particulate filter (DPF)
.jpg)
Check and top-up the transfer case fluid level.
Refer to: Engine Undershield (501-02 Front End Body Panels,
Removal and Installation).
