Land Rover Discovery: Body Closures Front Door (G1785716)/ Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Body / Body closures / Body Closures Front
Door (G1785716)/ Removal and Installation
REMOVA L
NOTES:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
- Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

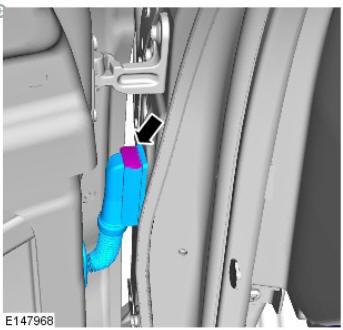

.1.jpg)
NOTES:
- This step requires the aid of another technician.
- Do not disassemble further if the component is removed for access only.

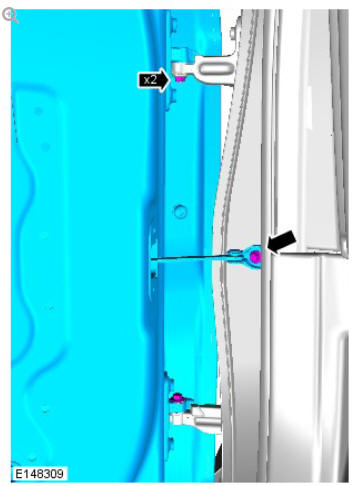

.2.jpg)
- Refer to: Exterior Mirror Glass (501-09 Rear View Mirrors, Removal and Installation).
- Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).
- Refer to: Front Door Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
- Refer to: Front Door Lower Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

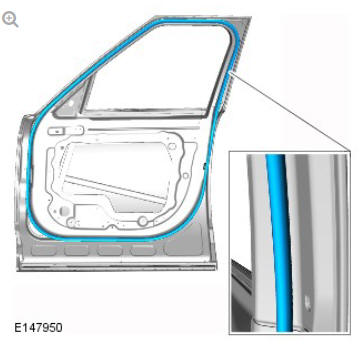

- CAUTIONS:
- Note the fitted position of the seal.
- Make sure that the area around the component is clean and free of foreign material.
.3.jpg)

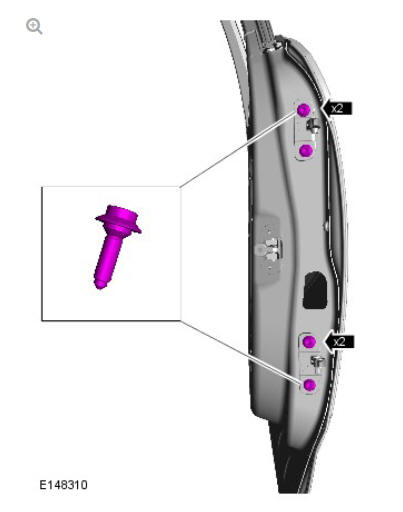

.4.jpg)
Torque: 35 Nm

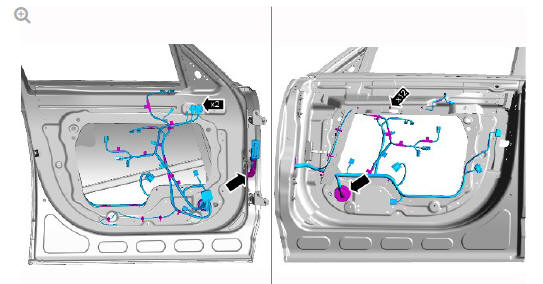

.5.jpg)

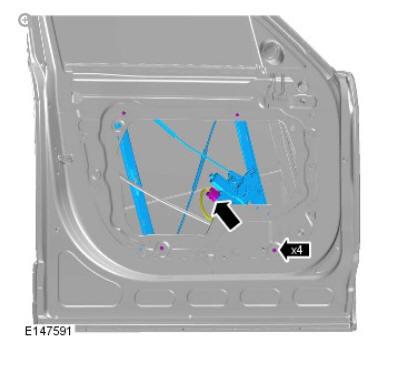

.6.jpg)
Torque: 8 Nm

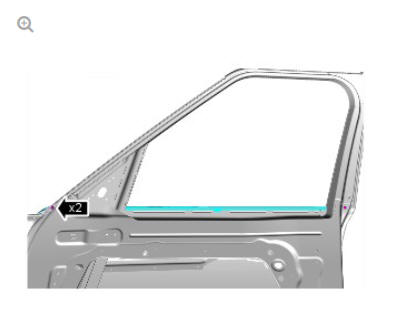

.7.jpg)
Torque: 3.5 Nm

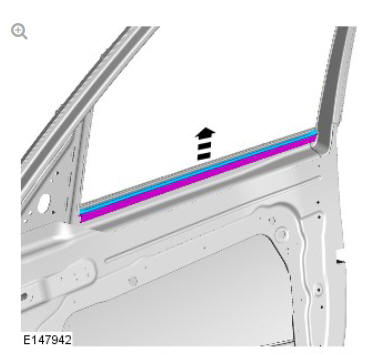

.8.jpg)

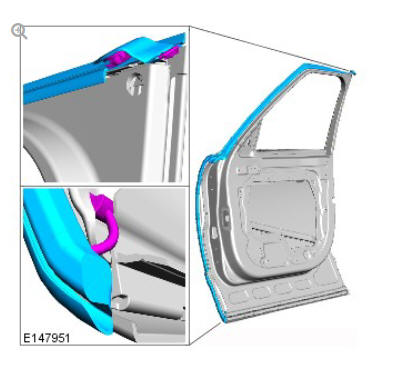

.9.jpg)

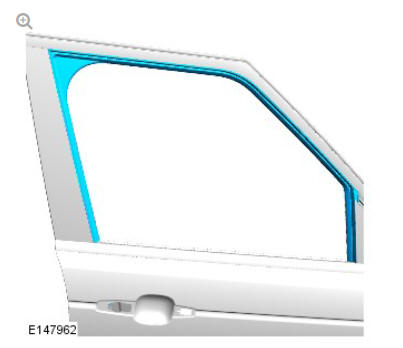

.10.jpg)

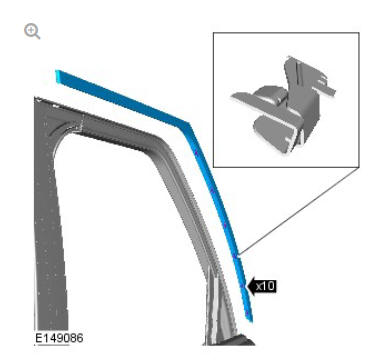

.11.jpg)

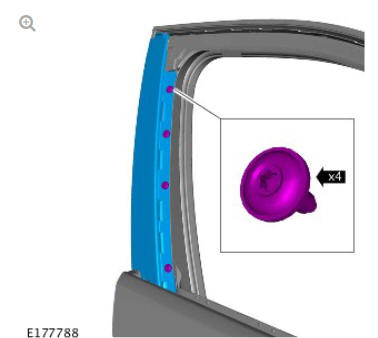

.12.jpg)
Torque: 3.5 Nm
INSTALLATION

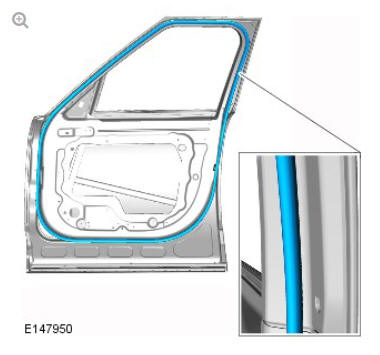

CAUTIONS:
- Note the fitted position of the seal.
- Install a new seal.
- Make sure that the area around the component is clean and free of foreign material.
.13.jpg)
To install, reverse the removal procedure.
