Land Rover Discovery: Driveshaft - Ingenium i4 2.0l Diesel, Vehicles with- active Driveline
(G1890848) - Installation
Installation
.jpg)
Torque: 25 Nm
NOTES:
- Do not tighten at this stage.
- This step requires the aid of another technician.
.jpg)
NOTE:
Do not tighten at this stage.
.jpg)
NOTES:
- Do not tighten at this stage.
- If equipped.

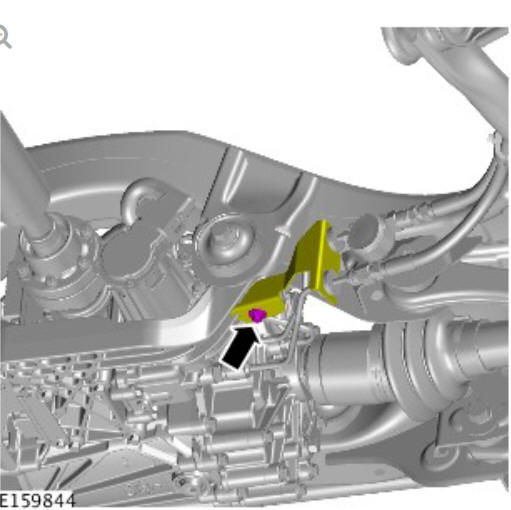

.jpg)
NOTE:
If equipped.

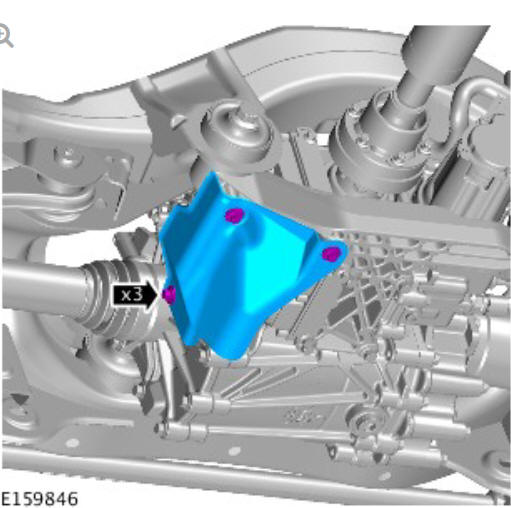

.jpg)
.jpg)

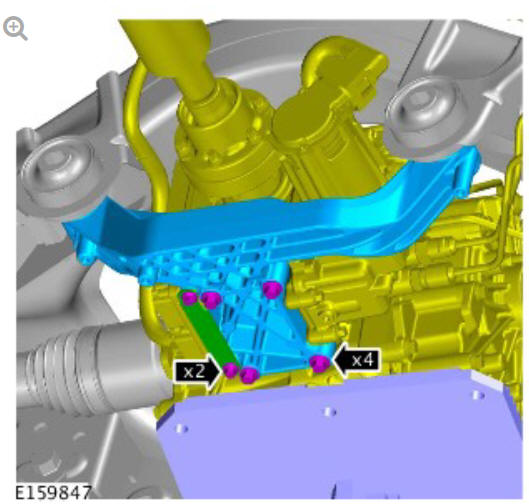

Torque:
M8 29 Nm
M6 10 Nm
CAUTION:
Make sure that new bolts are installed.
.jpg)

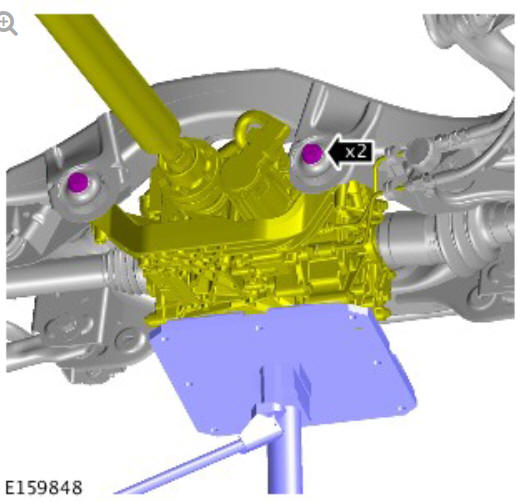

- Renew Part: Differential case front bolts.
Torque: 175 Nm
- Remove the transmission jack.
CAUTIONS:
- The component must be aligned with the installation
markings.
- Make sure that new bolts are installed.
NOTE:
Tighten the retaining bolts working diagonally.
.jpg)

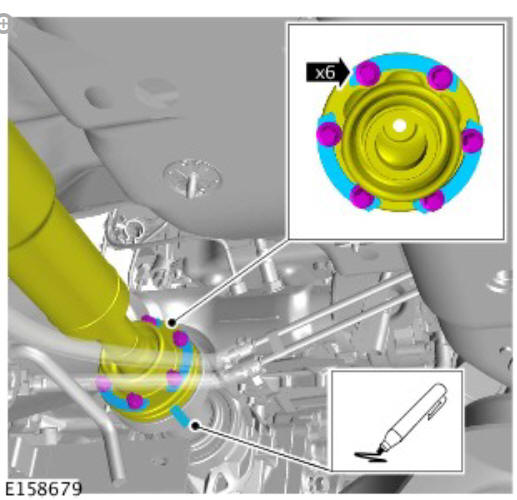

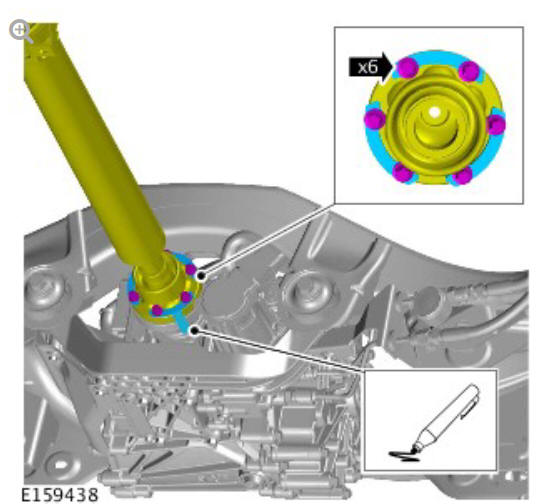

Renew Part: Driveshaft to rear differential bolts.
Torque: 40 Nm
CAUTIONS:
- The component must be aligned with the installation
markings.
- Make sure that new bolts are installed.
NOTE:
Tighten the retaining bolts working diagonally.
.jpg)

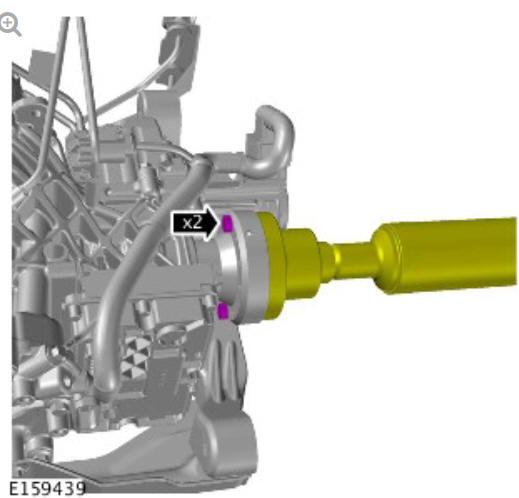

Renew Part: Driveshaft to front output flange bolts.
Torque: 40 Nm

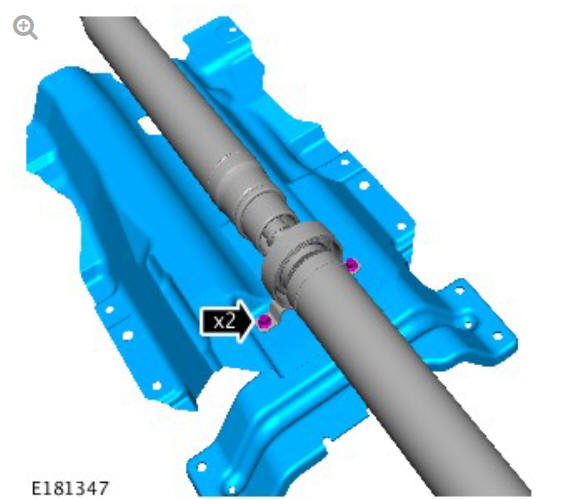

CAUTION:
Make sure the center bearing mount is not under tension.

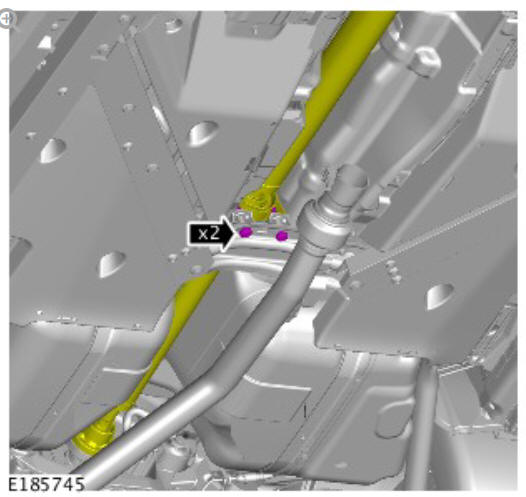

.jpg)

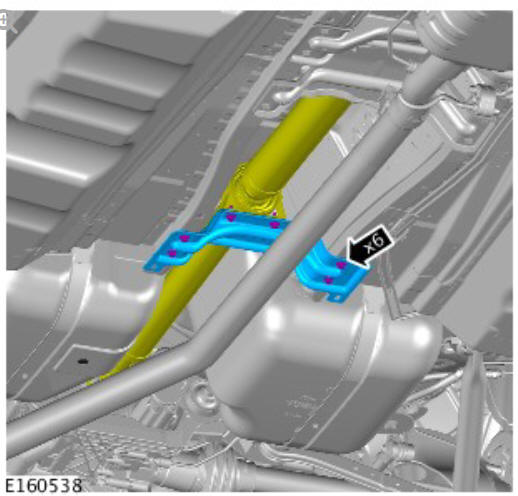

Torque:
M8 bolt 24 Nm
M8 nut 25 Nm
CAUTION:
Make sure the center bearing mount is not under tension.

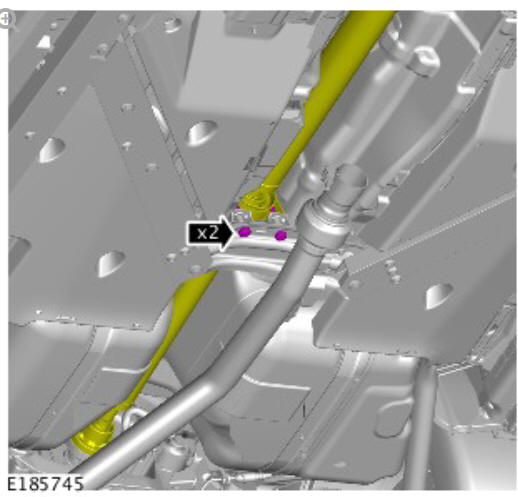

.jpg)
Torque: 24 Nm
CAUTION:
Make sure the center bearing mount is not under tension.
NOTE:
If equipped.

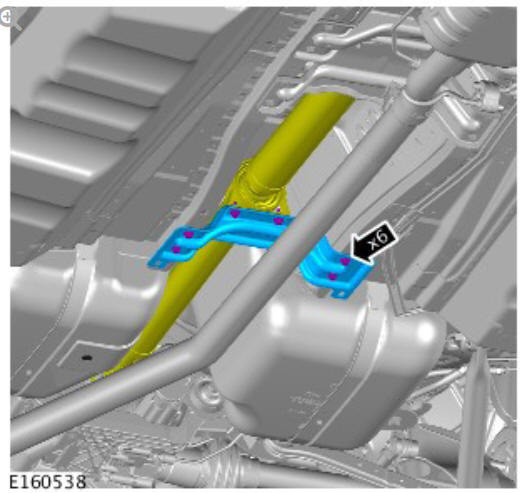

.jpg)
Torque: 24 Nm

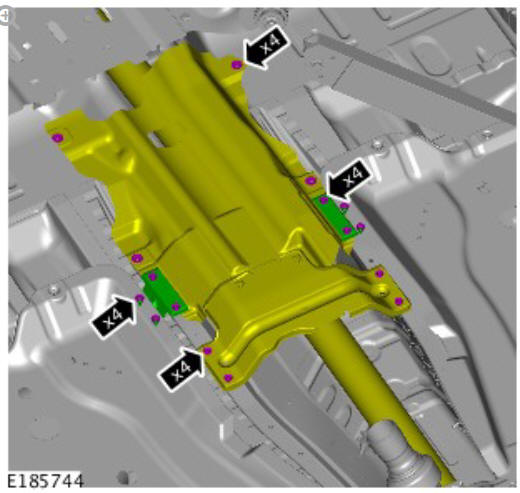

.jpg)
Torque: 10 Nm

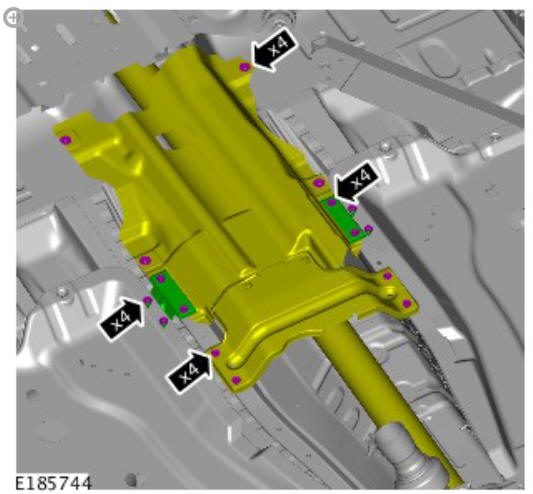

.jpg)
Torque: 10 Nm
Refer to: Diesel Particulate Filter - Vehicles With: Diesel Exhaust
Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal
and Installation).
Refer to: Diesel Particulate Filter - Vehicles Without: Diesel Exhaust
Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal
and Installation).
Refer to: Exhaust System (309-00C Exhaust System - INGENIUM I4
2.0L Diesel, Removal and Installation).
