Land Rover Discovery: Front Row Passenger
Seat Cushion
Heater Element -
Vehicles with- power Seats
(G1780412) / Removal and Installation
REMOVAL
WARNINGS:
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Removal steps in this procedure may contain installation details.
Refer to: Front Seat Cushion Cover - Vehicles With: Power Seats
(501-10, Removal and Installation).

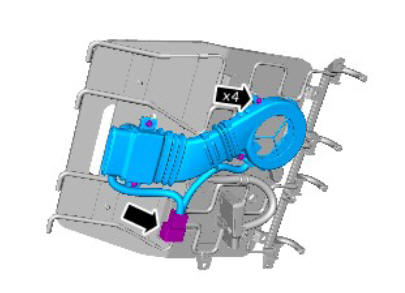

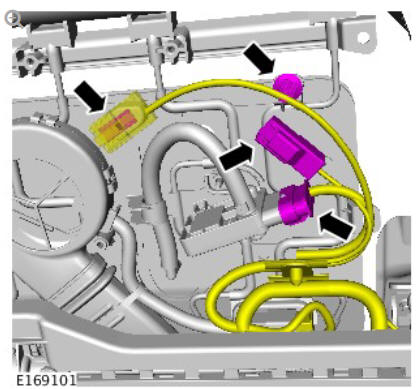

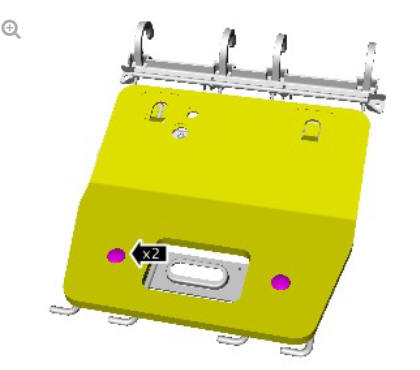

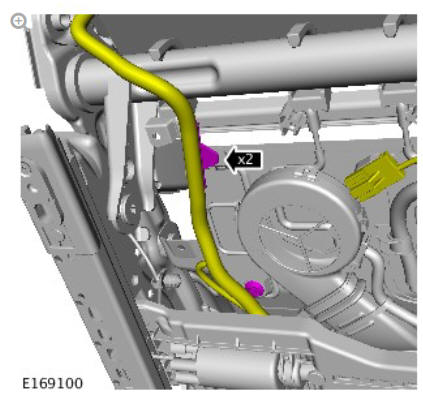

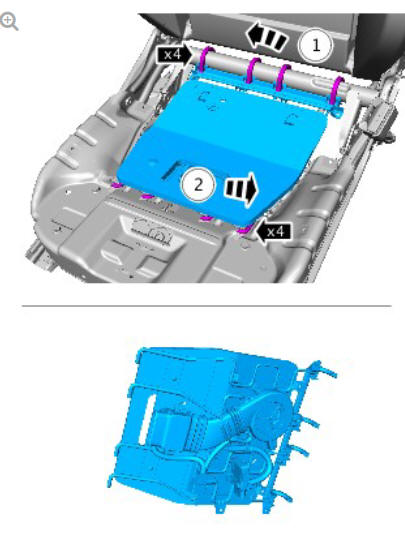

.42.jpg)
.43.jpg)
.44.jpg)
.45.jpg)
.46.jpg)
CAUTIONS:
- Note the installed position of the component prior to
removal.
- It is essential that the sensor is installed in the correct
orientation as shown.

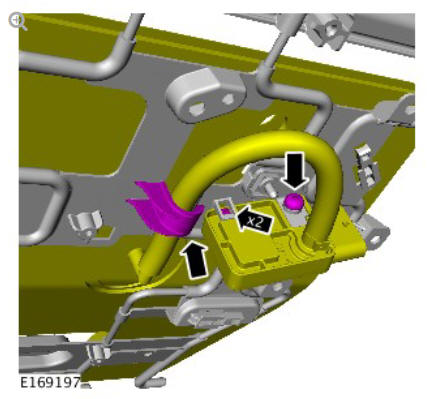

.47.jpg)
.48.jpg)
.49.jpg)

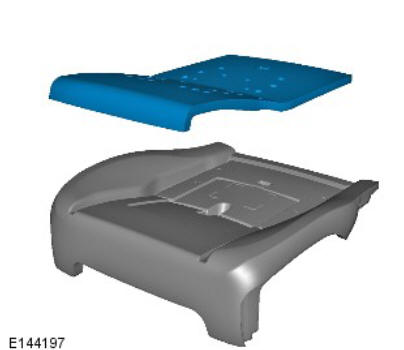

.50.jpg)
INSTALLATION
WARNING:
The front passenger seat occupant classification sensor is
available only as a service kit. No attempt should be made to
install individual components. Failure to follow this instruction
may result in personal injury.

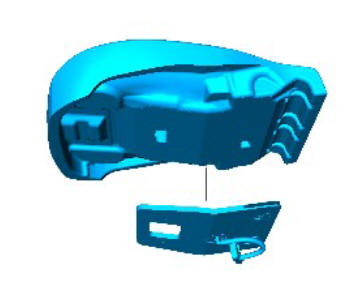

.51.jpg)
To install, reverse the removal procedure.
NOTE:
Make sure that the front seats are empty during this process.
- If a new service kit is installed, configure the occupant
classification sensor using the approved Land Rover diagnostic
tool and clear any DTCs.
- If a repair has been carried out, reset the occupant
classification sensor using the approved Land Rover diagnostic
tool and clear any DTCs.
Front Row Passenger
Seat Cushion
Heater Element -
Vehicles with- power Seats
(G1780413) / Removal and Installation
REMOVAL
WARNINGS:
- To avoid accidental deployment and possible personal injury,
the
backup power supply must be depleted before repairing or
replacing any air bag supplemental restraint system (SRS)
components. To deplete the backup power supply energy,
disconnect the battery ground cable and wait one minute. Failure
to follow this instruction may result in personal injury.
- Never probe the electrical connectors of air bag modules or any
other supplemental restraint system component. Failure to follow
this instruction may result in personal injury.
CAUTION:
The front passenger seat occupant classification sensor is available
only as a service kit. No attempt should be made to replace individual
components. Failure to follow this instruction may result in personal
injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
- Refer to: Standard Workshop Practices (100-00 General
Information, Description and Operation).
- Refer to: Occupant Classification Sensor (501-20B, Removal and
Installation).
INSTALLATION
- To install, reverse the removal procedure.
