REMOVAL

WARNINGS:

  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
  • Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
  • Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
  • Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component.

    Failure to follow this instruction may result in personal injury.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

Vehicles with power seats

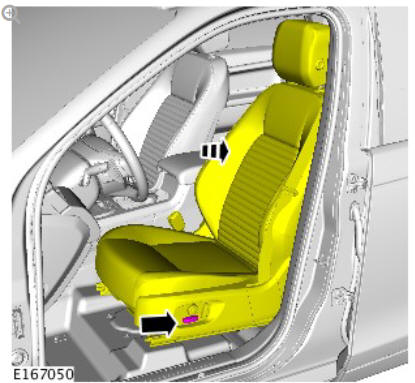

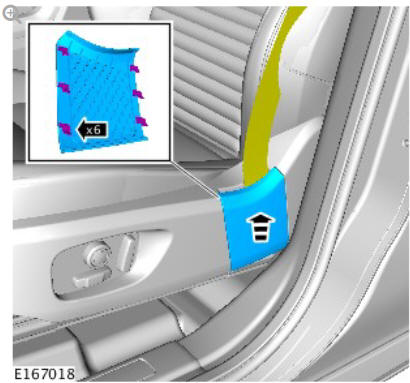

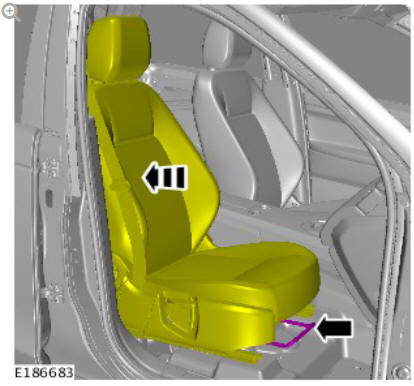

Front row seat - vehicles with- power seats (G1780390) removal and installation

Front row seat - vehicles with- power seats (G1780390) removal and installation

Vehicles without power seats

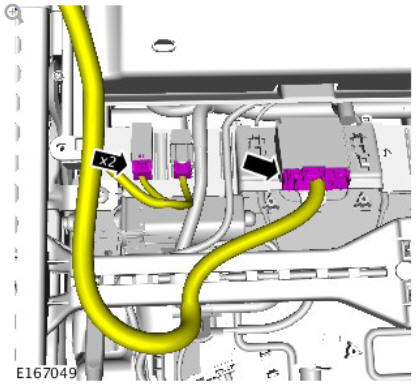

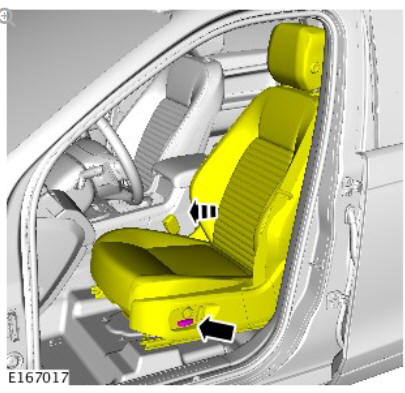

Front row seat - vehicles with- power seats (G1780390) removal and installation

Front row seat - vehicles with- power seats (G1780390) removal and installation

All vehicles

CAUTION:

Passengers side only.

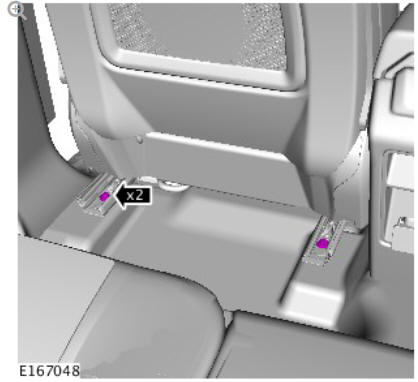

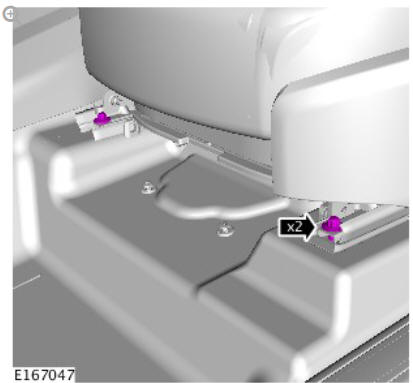

Front row seat - vehicles with- power seats (G1780390) removal and installation

Torque: 40 Nm

CAUTION:

Drivers side only.

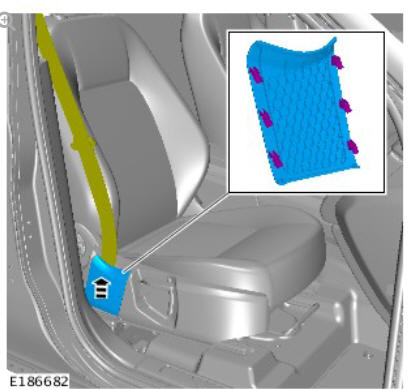

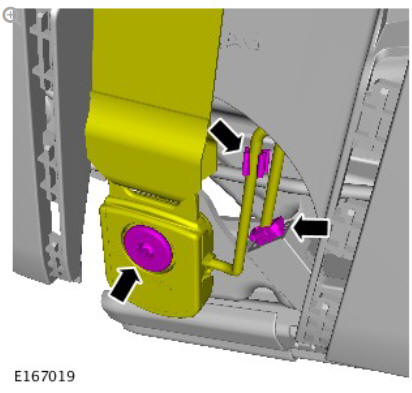

Front row seat - vehicles with- power seats (G1780390) removal and installation

Torque: 40 Nm

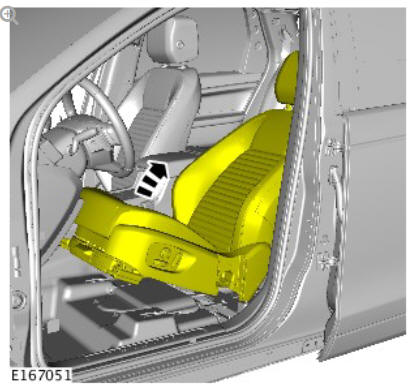

Front row seat - vehicles with- power seats (G1780390) removal and installation

Torque: 40 Nm

Vehicles with power seats

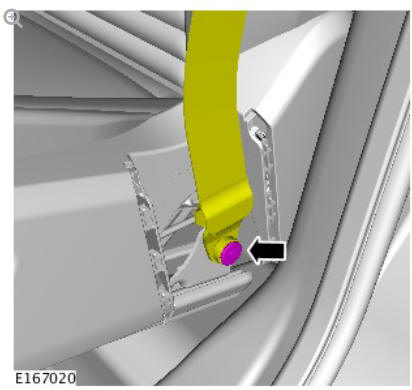

Front row seat - vehicles with- power seats (G1780390) removal and installation

Vehicles without power seats

Front row seat - vehicles with- power seats (G1780390) removal and installation

All vehicles

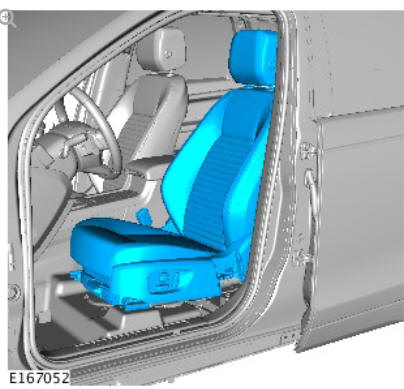

Front row seat - vehicles with- power seats (G1780390) removal and installation

Torque: 40 Nm

Vehicles with power seats

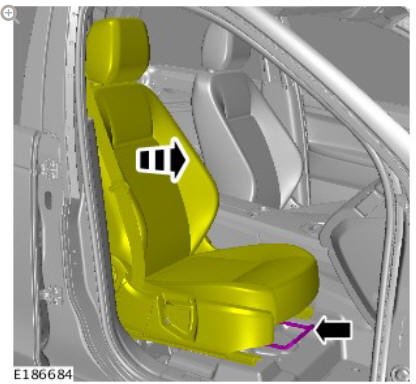

Front row seat - vehicles with- power seats (G1780390) removal and installation

Vehicles without power seats

Front row seat - vehicles with- power seats (G1780390) removal and installation

All vehicles

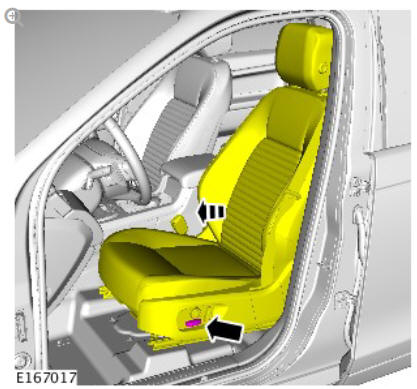

Front row seat - vehicles with- power seats (G1780390) removal and installation

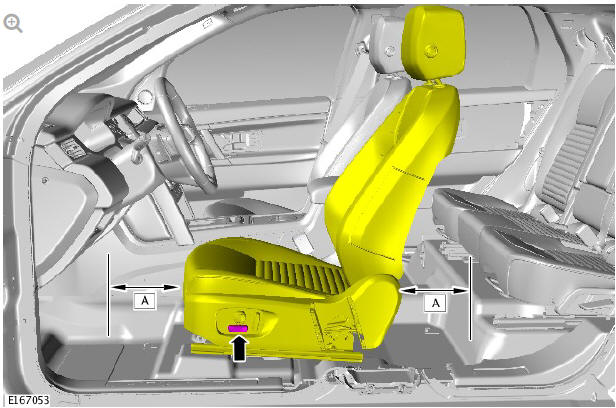

Reposition the front seat to the central position.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Vehicles with power seats

Front row seat - vehicles with- power seats (G1780390) removal and installation

Vehicles without power seats

Front row seat - vehicles with- power seats (G1780390) removal and installation

All vehicles

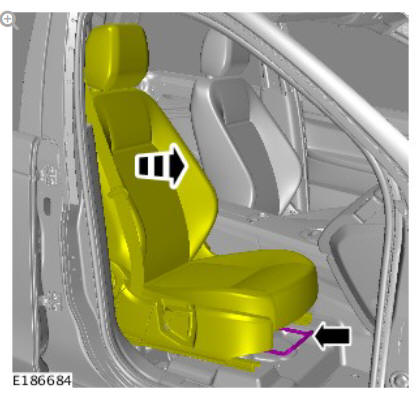

Front row seat - vehicles with- power seats (G1780390) removal and installation

Vehicles with power seats

WARNING:

This step requires the aid of another technician

CAUTIONS:

  • Protect the surrounding paintwork to avoid damage.
  • Protect the surrounding trim to avoid damage.

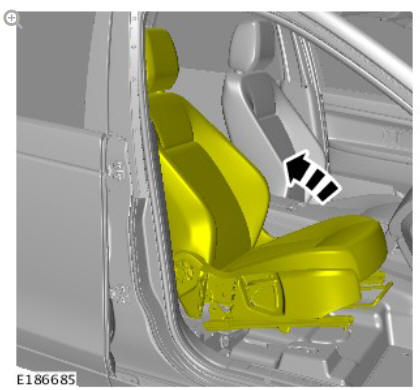

Front row seat - vehicles with- power seats (G1780390) removal and installation

Vehicles without power seats

WARNING:

This step requires the aid of another technician.

CAUTIONS:

  • Protect the surrounding paintwork to avoid damage.
  • Protect the surrounding trim to avoid damage.

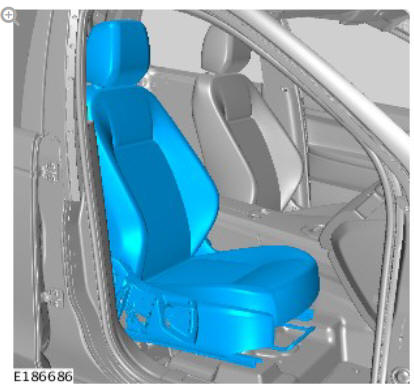

Front row seat - vehicles with- power seats (G1780390) removal and installation

INSTALLATION

To install, reverse the removal procedure.
