Land Rover Discovery: Fuel Charging and Controls - Ingenium i4 2.0l Diesel Throttle Body (G1875961) / Removal and Installation
REMOVAL
CAUTION:
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
Remove the air cleaner.
Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - INGENIUM I4 2.0L Diesel, Removal and Installation).
.jpg)

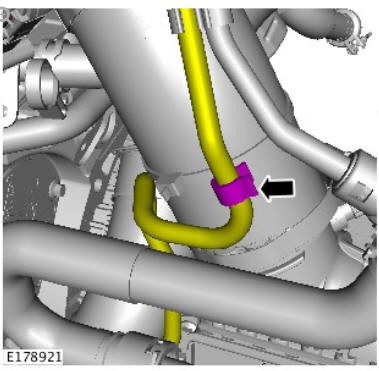

Detach the hose from the charge air cooler pipe.
.jpg)

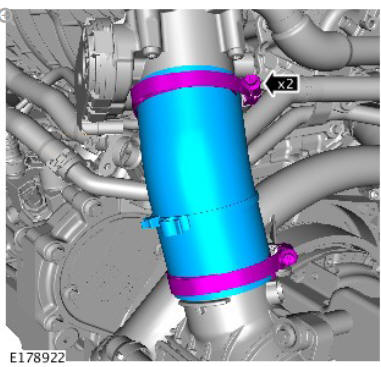

Remove the charge air cooler pipe.
.jpg)

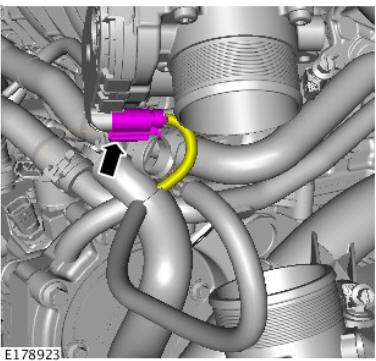

Disconnect the throttle body electrical connector
CAUTION:
Make sure that the mating faces are clean and free of foreign material.
NOTE:

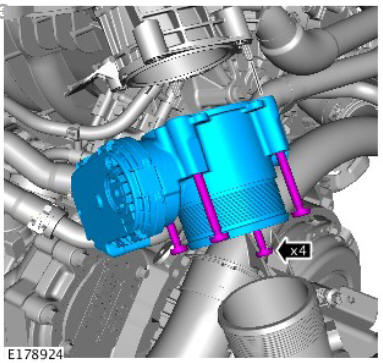

Note the orientation of the locating pegs for correct installation of the throttle body.
.jpg)
INSTALLATION
CAUTIONS:
- Make sure that the mating faces are clean and free of foreign material.

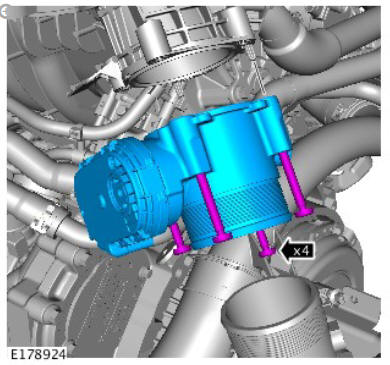

- Tighten the retaining screws evenly and progressively in the sequence shown.
NOTE:
Make sure that the throttle body is installed in the correct orientation as noted on the removal step.
.jpg)
Torque: 12 Nm
.jpg)

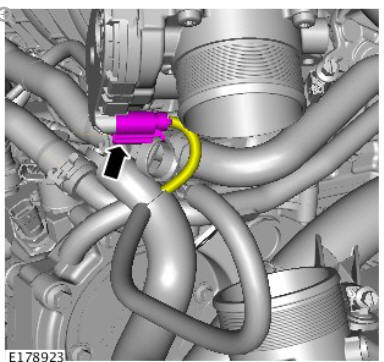

Connect the throttle body electrical connector.
.jpg)

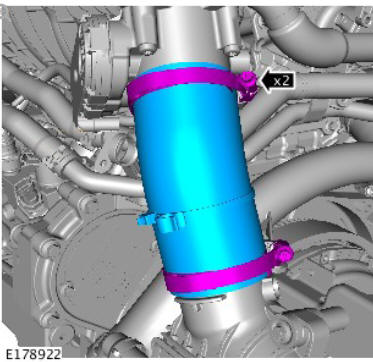

Install the charge air cooler pipe.
Torque: 5.4 Nm
.jpg)
Attach the hose to the charge air cooler pipe.
Install the air cleaner.
Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - INGENIUM I4 2.0L Diesel, Removal and Installation).
If a new component has been installed, configure using Land Rover approved diagnostic equipment.
