REMOVAL

NOTES:

  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Secondary Bulkhead Centre Panel - INGENIUM I4 2.0L Diesel (501-02 Front End Body Panels, Removal and Installation).

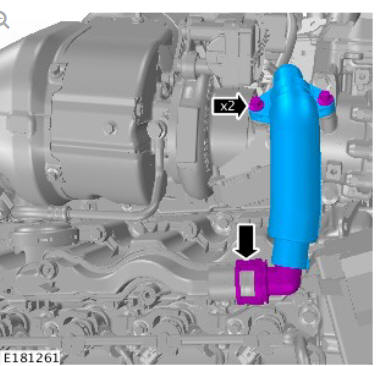

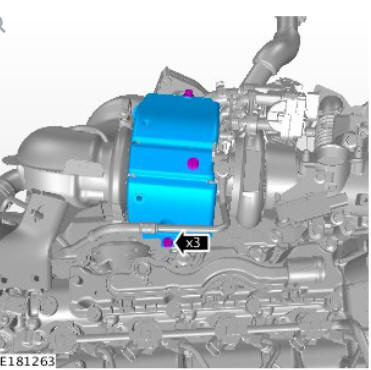

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 10 Nm

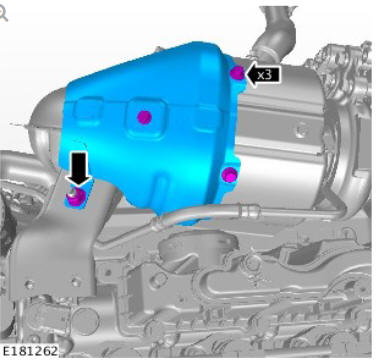

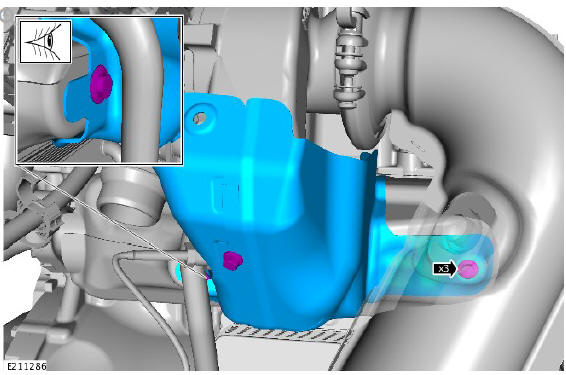

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 8 Nm

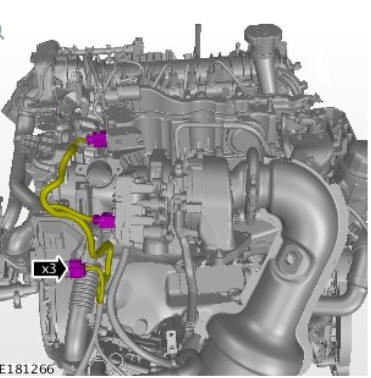

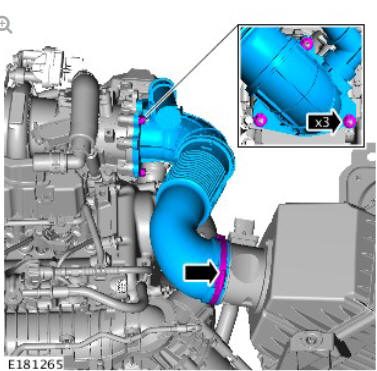

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 8 Nm

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 8 Nm

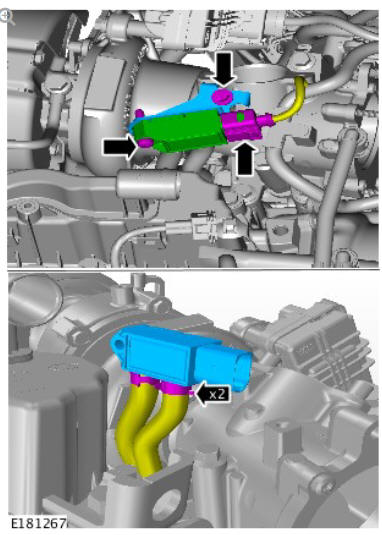

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 10 Nm

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 10 Nm

CAUTIONS:

  • Make sure that new sealing washers are installed.
  • Be prepared to collect escaping oil.

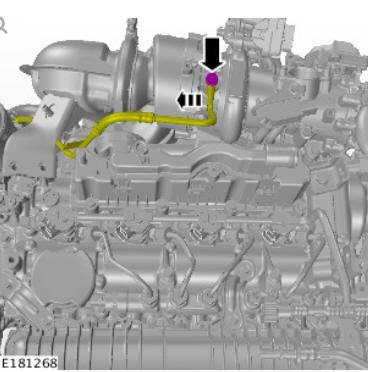

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 18 Nm

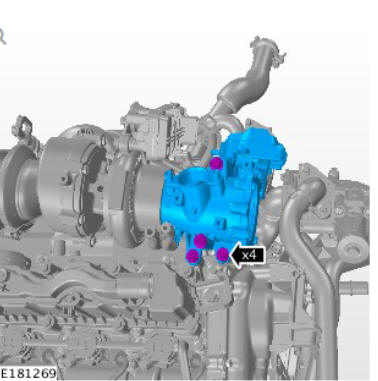

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 25 Nm

CAUTIONS:

  • Make sure that the gasket is correctly located.
  • Install a new gasket.

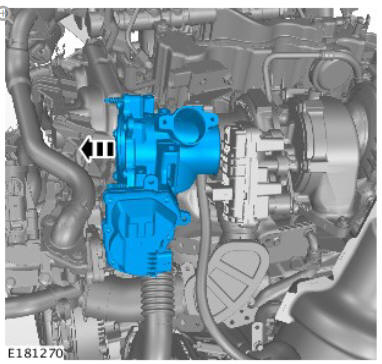

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

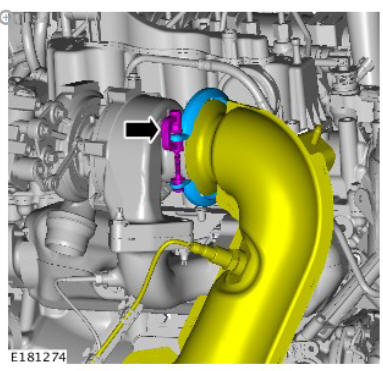

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 12 Nm

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 10 Nm

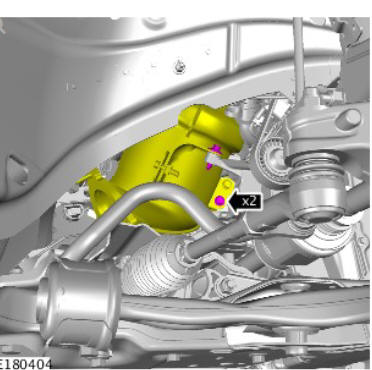

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Release the catalytic converter securing bolts to allow the assembly to be repositioned.

Torque: 24 Nm

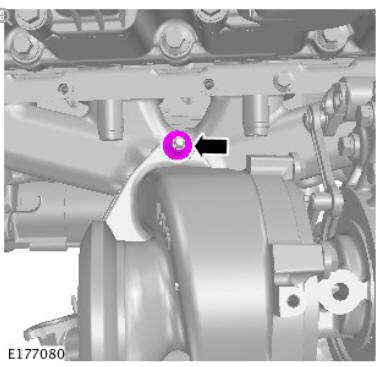

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 28 Nm

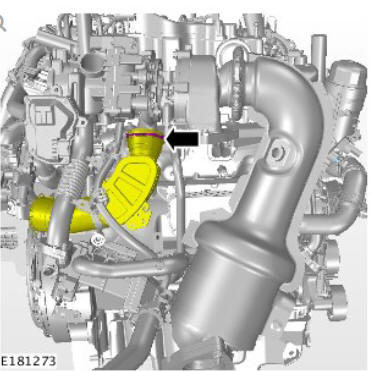

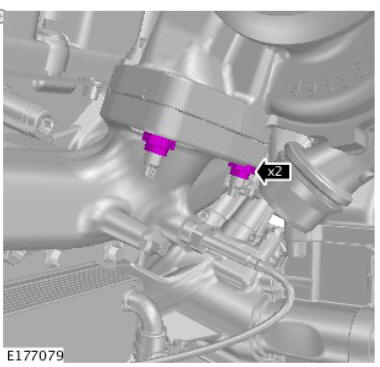

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

Torque: 28 Nm

CAUTIONS:

  • Install a new gasket.
  • Make sure that the gasket is correctly located.

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

CAUTIONS:

  • Make sure that new sealing washers are installed.
  • Be prepared to collect escaping oil.

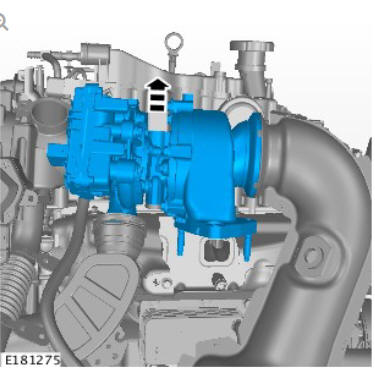

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger (G1875964) Removal and Installation

INSTALLATION

To install reverse the removal procedure.
