REMOVAL

NOTES:

  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Cooling System Draining, Filling and Bleeding (303-03B Engine Cooling - INGENIUM I4 2.0L Diesel, General Procedures).

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

Refer to: Accessory Drive Belt (303-05B Accessory Drive - INGENIUM I4 2.0L Diesel, Removal and Installation).

CAUTION:

Be prepared to collect escaping fluids.

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Supply Tube (G1875966) / Removal and Installation

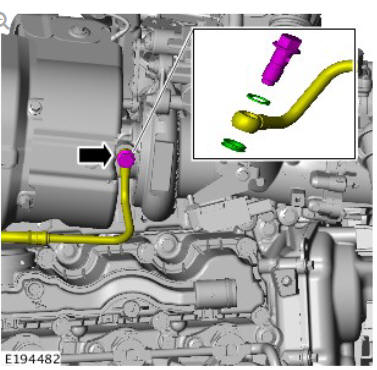

CAUTION:

Be prepared to collect escaping oil.

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Supply Tube (G1875966) / Removal and Installation

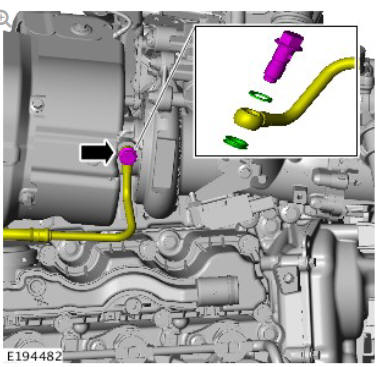

CAUTION:

Be prepared to collect escaping oil.

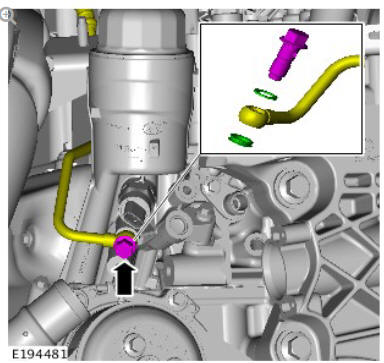

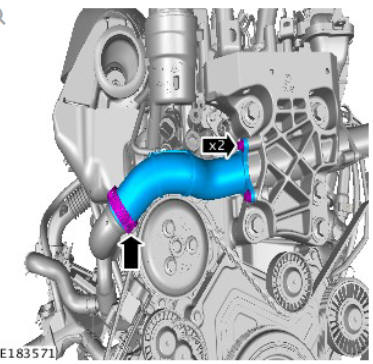

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Supply Tube (G1875966) / Removal and Installation

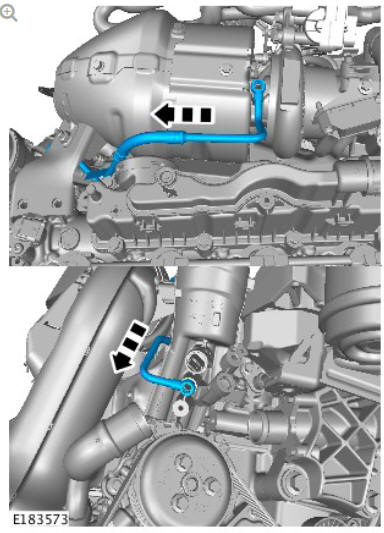

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Supply Tube (G1875966) / Removal and Installation

INSTALLATION

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Supply Tube (G1875966) / Removal and Installation

CAUTION:

Make sure that new sealing washers are installed.

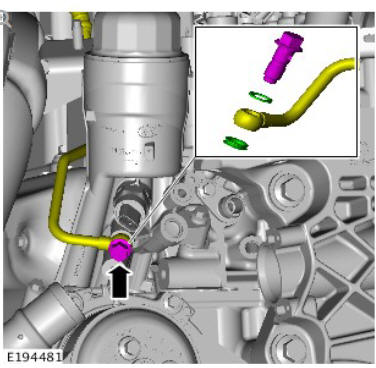

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Supply Tube (G1875966) / Removal and Installation

Torque: 18 Nm

CAUTION:

Make sure that new sealing washers are installed

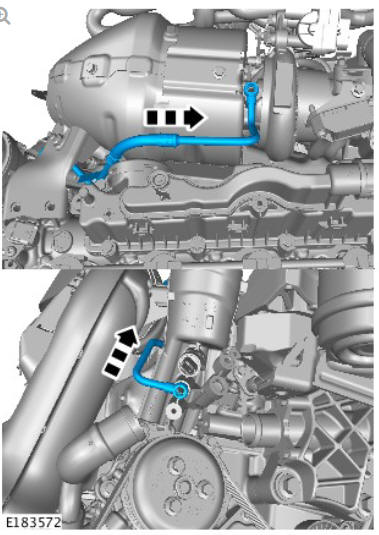

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Supply Tube (G1875966) / Removal and Installation

Torque: 18 Nm

CAUTION:

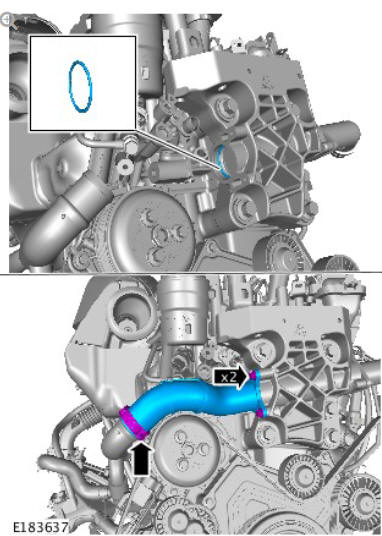

Inspect the O-rings, replace if damaged.

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Supply Tube (G1875966) / Removal and Installation

Torque: 10 Nm

Refer to: Accessory Drive Belt (303-05B Accessory Drive - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

Refer to: Cooling System Draining, Filling and Bleeding (303-03B Engine Cooling - INGENIUM I4 2.0L Diesel, General Procedures).
