Land Rover Discovery: Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Return Hose (G1875965) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Return Hose (G1875965) / Removal and Installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Refer to: Secondary Bulkhead Centre Panel - INGENIUM I4 2.0L

Diesel (501-02 Front End Body Panels, Removal and Installation).

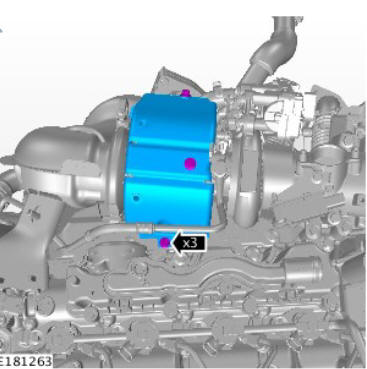

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Return Hose (G1875965) Removal and Installation

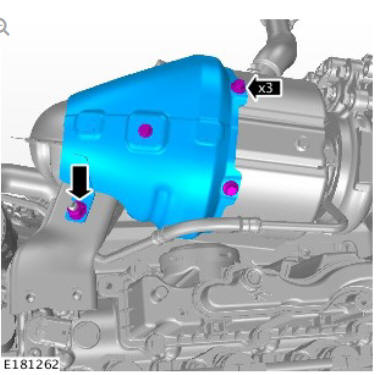

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Return Hose (G1875965) Removal and Installation

CAUTION:

Be prepared to collect escaping oil.

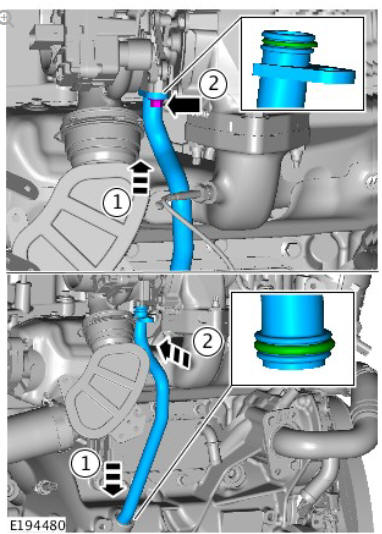

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Return Hose (G1875965) Removal and Installation

INSTALLATION

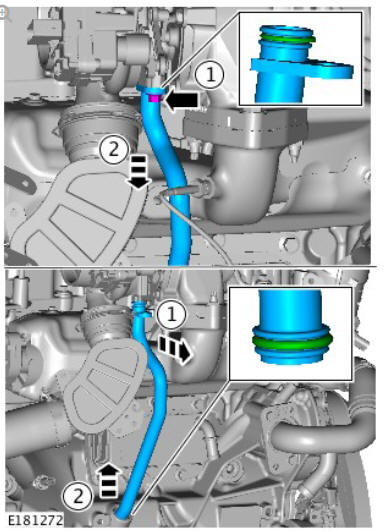

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Return Hose (G1875965) Removal and Installation

Inspect the O-rings, replace if damaged.

Torque: 12 Nm

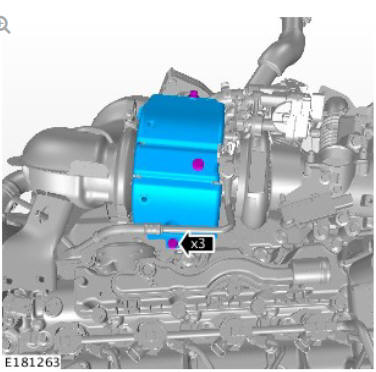

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Return Hose (G1875965) Removal and Installation

Torque: 8 Nm

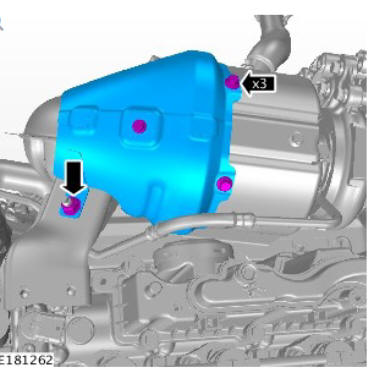

Fuel Charging and Controls - Turbocharger - Ingenium i4 2.0l Diesel Turbocharger Oil Return Hose (G1875965) Removal and Installation

Refer to: Secondary Bulkhead Centre Panel - INGENIUM I4 2.0L Diesel (501-02 Front End Body Panels, Removal and Installation).

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
