Land Rover Discovery: Crankshaft Rear Seal (G1875871) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine - Ingenium i4 2.0l Diesel / Crankshaft Rear Seal (G1875871) / Removal and Installation

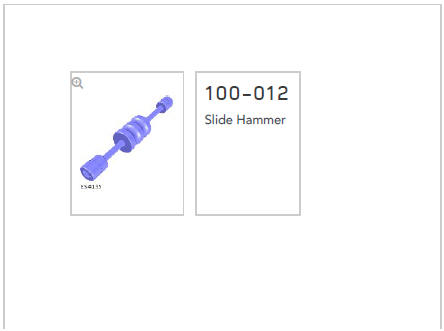

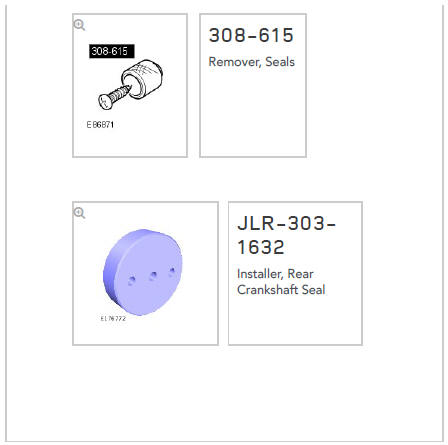

SPECIAL TOOL(S)

SPECIAL TOOL(S)

SPECIAL TOOL(S)

PART(S)

PART(S)

REMOVAL

All vehicles

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Raise and support the vehicle.

Vehicles with automatic transmission

Refer to: Flexplate (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Vehicles with manual transmission

Refer to: Flywheel (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Crankshaft Rear Seal (G1875871) / Removal and Installation

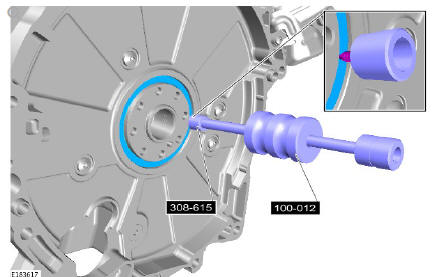

Remove and discard the rear crankshaft oil seal.

Special Tool(s): 100-012, 308-615

INSTALLATION

All vehicles

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

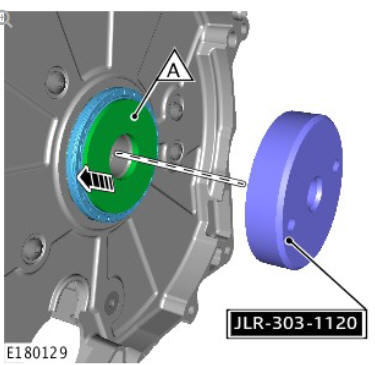

The component labelled A in the illustration is a alignment spacer provided with a new seal.

Crankshaft Rear Seal (G1875871) / Removal and Installation

Position the new seal and spacer (A) onto the back of the crankshaft and partially install the seal on the crankshaft using the special tool

Special Tool(s): JLR-303-1632

Renew Part: Crankshaft rear seal.

Crankshaft Rear Seal (G1875871) / Removal and Installation

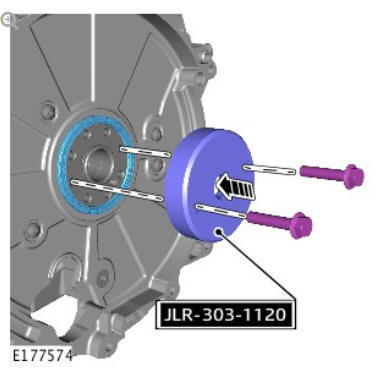

Remove seal spacer and using the special tool fully install the seal into its fitted position by installing the fixings.

Special Tool(s): JLR-303-1632

CAUTION:

Make sure the seal is installed correctly.

Crankshaft Rear Seal (G1875871) / Removal and Installation

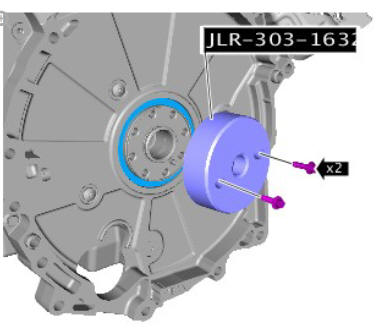

Remove the special tool.

Special Tool(s): JLR-303-1632

Vehicles with automatic transmission

Refer to: Flexplate (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Vehicles with manual transmission

Refer to: Flywheel (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Connect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Cylinder Head (G1875877) / Removal and Installation

REMOVAL

Refer to: Cylinder Head Gasket (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Cylinder Head Gasket (303-01C, Removal and Installation).

Refer to: Valves (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

INSTALLATION

Refer to: Valves (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Cylinder Head Gasket (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Cylinder Head Gasket (303-01C, Removal and Installation).
