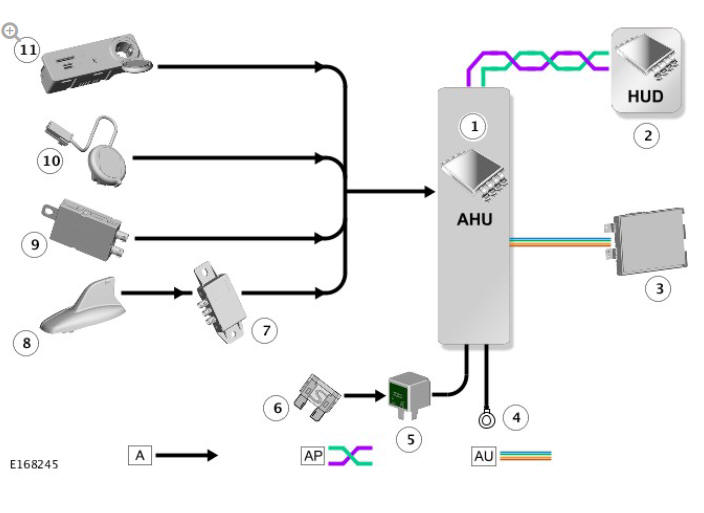

CONTROL DIAGRAM - AUDIO HEAD UNIT ( AHU ) INCONTROL TOUCH AUDIO SYSTEMS

NOTE:

A = Hardwired; I = CVBS; AP = Medium speed CAN Comfort systems; AU = APIX2

CONTROL DIAGRAM - AUDIO HEAD UNIT ( AHU ) INCONTROL TOUCH AUDIO SYSTEMS

  1. Audio Head Unit (AHU)
  2. Head-Up Display (HUD) control module
  3. Touch Screen (TS)
  4. Ground
  5. Relay - located in Quiescent Current Control Module (QCCM)
  6. Fuse - located in QCCM
  7. GPS signal splitter - if fitted
  8. Roof pod - GPS antenna
  9. FM / TMC / DAB-III antenna amplifier
  10. Microphone
  11. Portable audio interface panel

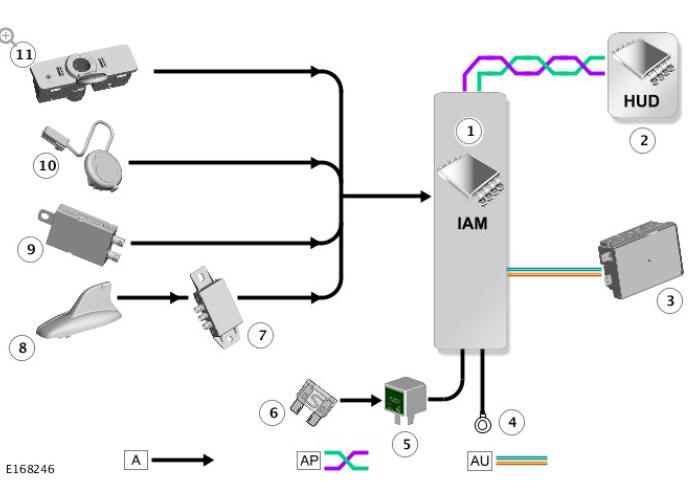

CONTROL DIAGRAM - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS

NOTE:

A = Hardwired; I = CVBS; P = MOST; Q = GVIF; AE = LVDS; AP = Medium speed CAN Comfort systems

CONTROL DIAGRAM - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS

  1. Integrated Audio Module (IAM)
  2. Head-Up Display (HUD) control module
  3. Touch Screen (TS)
  4. Ground
  5. Relay - located in Quiescent Current Control Module (QCCM)
  6. Fuse - located in QCCM
  7. GPS signal splitter - if fitted
  8. Roof pod - GPS antenna
  9. FM / TMC / DAB-III antenna amplifier
  10. Microphone
  11. Portable audio interface panel

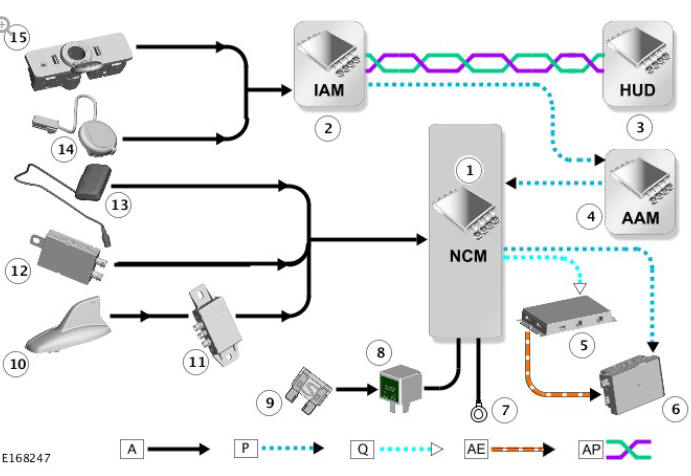

CONTROL DIAGRAM - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS - JAPAN

Control Diagram - Japan

NOTE:

A = Hardwired; I = CVBS; P = MOST; Q = GVIF; AE = LVDS; AP = Medium speed CAN Comfort systems

CONTROL DIAGRAM - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS - JAPAN

  1. Navigation Control module (NCM)
  2. Integrated Audio Module (IAM)
  3. Head-Up Display (HUD) control module
  4. Audio Amplifier Module (AAM)
  5. Navigation Interface Module (NIM)
  6. Touch Screen (TS)
  7. Ground
  8. Relay - located in Quiescent Current Control Module (QCCM)
  9. Fuse - located in QCCM
  10. Rood pod - GPS antenna
  11. GPS signal splitter - if fitted
  12. FM / VICS / DAB-III antenna amplifier
  13. VIC Beacon antenna
  14. Microphone
  15. Portable audio interface panel

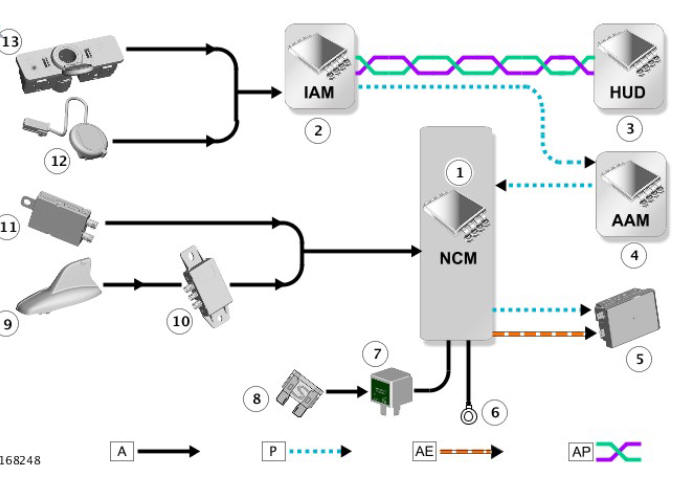

CONTROL DIAGRAM - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS - CHINA / INDIA

NOTE:

A = Hardwired; I = CVBS; P = MOST; Q = GVIF; AE = LVDS; AP = Medium speed CAN Comfort systems

CONTROL DIAGRAM - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS - CHINA / INDIA

  1. Navigation Control Module (NCM)
  2. Integrated Audio Module (IAM)
  3. Head-Up Display (HUD) control module
  4. Audio Amplifier Module (AAM)
  5. Touch Screen (TS)
  6. Ground
  7. Relay - located in Quiescent Current Control Module (QCCM)
  8. Fuse - located in QCCM
  9. Roof pod - GPS antenna
  10. GPS signal splitter - if fitted
  11. FM / TMC / DAB-III antenna amplifier
  12. Microphone
  13. Portable audio interface panel
