Land Rover Discovery: Navigation System

Land Rover Discovery (2009–2016) Service Manual / Electrical / Information and Entertainment System / Navigation System

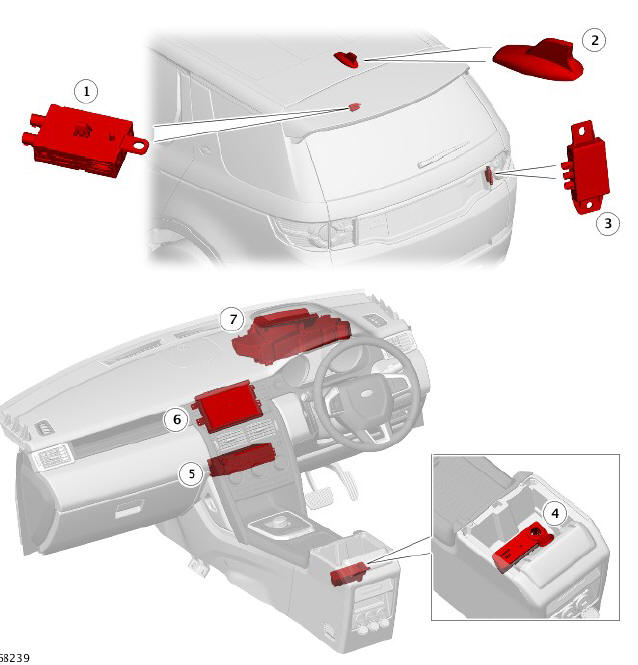

COMPONENT LOCATION - INCONTROL TOUCH AUDIO SYSTEMS

COMPONENT LOCATION - INCONTROL TOUCH AUDIO SYSTEMS

  1. FM / Traffic Message Channel (TMC) / DAB-III antenna amplifier
  2. Roof pod - GPS antenna
  3. Global Positioning System (GPS) signal splitter - only vehicles with telematics system
  4. Portable audio interface panel
  5. Audio Head Unit (AHU)
  6. Touch Screen (TS)
  7. Head Up Display (HUD) control module

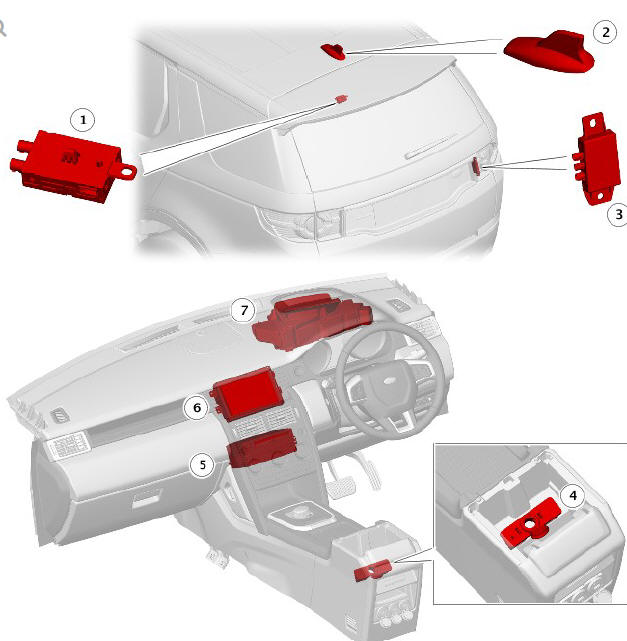

COMPONENT LOCATION - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS

COMPONENT LOCATION - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS

  1. FM / TMC / DAB-III antenna amplifier
  2. Roof pod - GPS antenna
  3. GPS signal splitter - only vehicles with telematics system
  4. Portable audio interface panel
  5. Integrated Audio Module (IAM)
  6. Touch Screen (TS)
  7. HUD control module

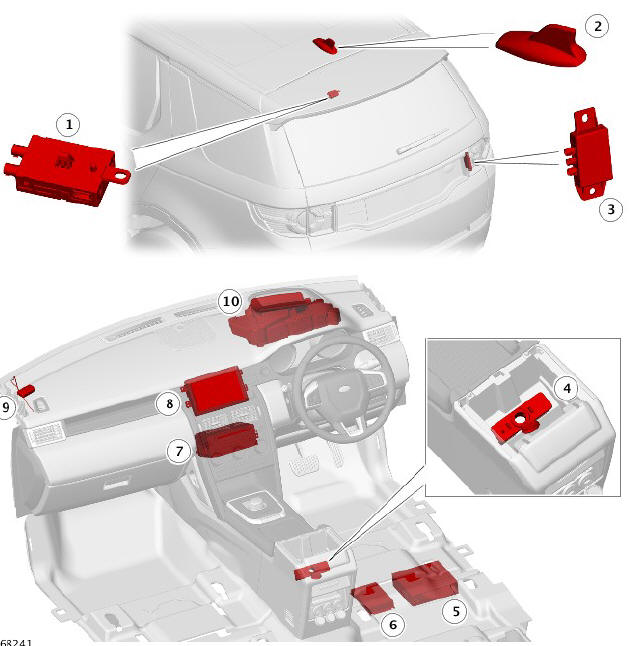

COMPONENT LOCATION - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS - JAPAN

COMPONENT LOCATION - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS - JAPAN

  1. FM / TMC / DAB-III antenna amplifier
  2. Roof pod - GPS antenna
  3. GPS signal splitter - only vehicles with telematics system
  4. Portable audio interface panel
  5. Navigation Control Module (NCM)
  6. Navigation Interface Module (NIM)
  7. Integrated Audio Module (IAM)
  8. Touch Screen (TS)
  9. Vehicle Information and Communication System (VICS) beacon antenna
  10. HUD control module

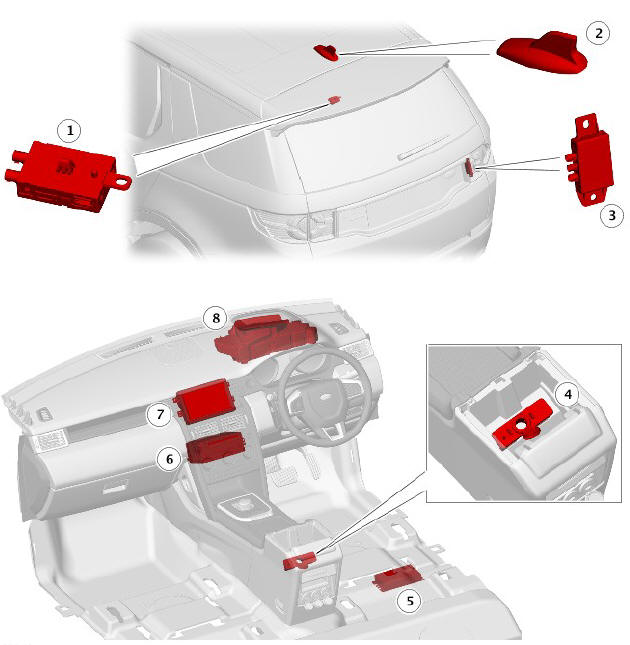

COMPONENT LOCATION - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS - CHINA

COMPONENT LOCATION - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIO SYSTEMS - CHINA

  1. FM / TMC / DAB-III antenna amplifier
  2. Roof pod - GPS antenna
  3. GPS signal splitter - only vehicles with telematics system
  4. Portable audio interface panel
  5. Navigation Control Module (NCM)
  6. Integrated Audio Module (IAM)
  7. Touch Screen (TS)
  8. HUD control module

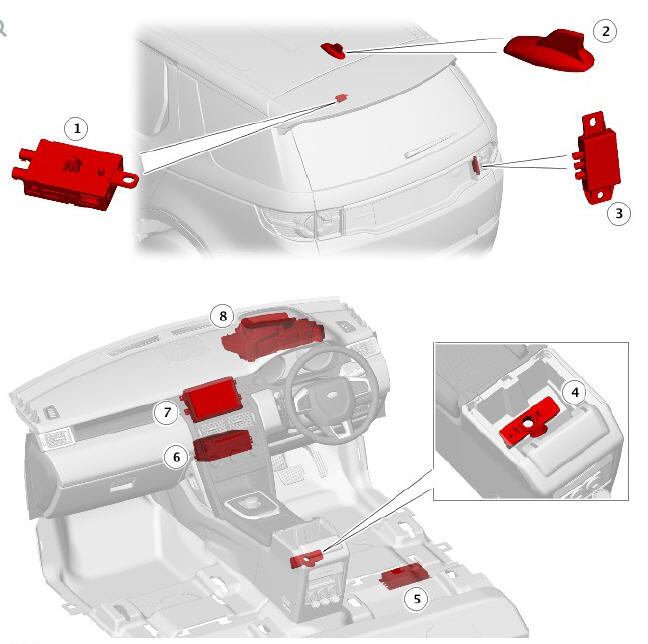

COMPONENT LOCATION - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIOSYSTEMS - INDIA / ASIA

COMPONENT LOCATION - INCONTROL TOUCH PLUS AND INCONTROL TOUCH PLUS WITH MERIDIAN SURROUND AUDIOSYSTEMS - INDIA / ASIA

  1. FM / TMC / DAB-III antenna amplifier
  2. Roof pod - GPS antenna
  3. GPS signal splitter - only vehicles with telematics system
  4. Portable audio interface panel
  5. Navigation Control Module (NCM)
  6. Audio Head Unit (AHU)
  7. Touch Screen (TS)
  8. HUD control module
