Land Rover Discovery: Information and Entertainment Display (G1785534) / Removal and
Installation
REMOVAL
CAUTION:
Use a suitable trim tool.
NOTE:
Removal steps in this procedure may contain installation details.
Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
Refer to: Floor Console Upper Section (501-12 Instrument Panel
and Console, Removal and Installation).
NOTE:
Repeat the step for the other side.

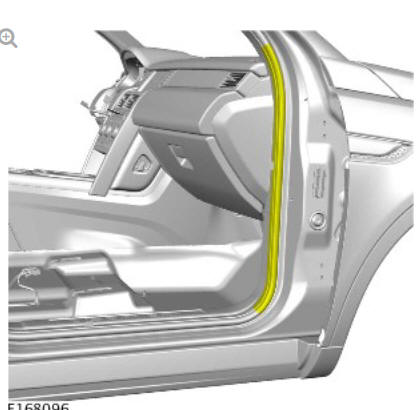

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index38(3).jpg)

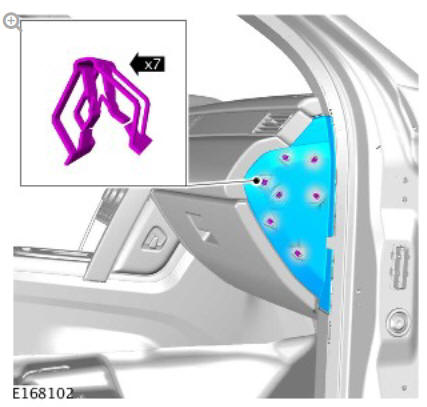

NOTE:
Repeat the step for the other side.
![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index39(2).jpg)
NOTE:
Repeat the step for the other side.

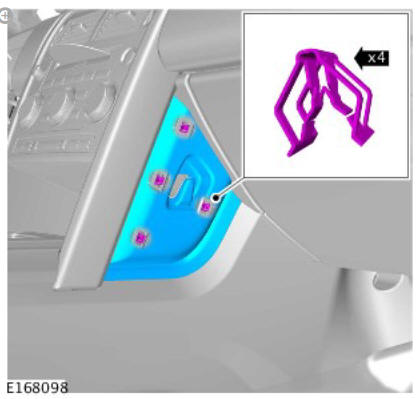

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index310(3).jpg)
NOTE:
Repeat the step for the other side.

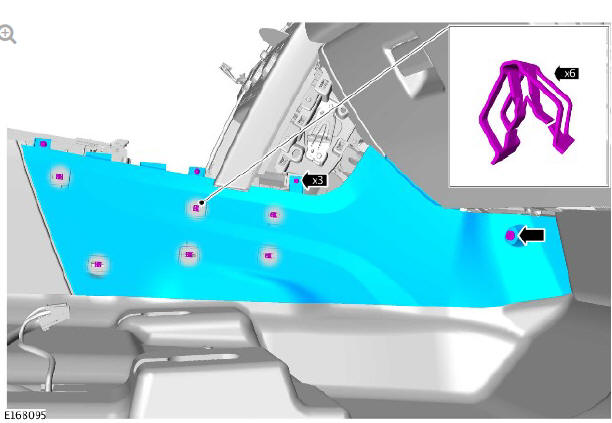

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index311(3).jpg)
Torque: 1.5 Nm
NOTE:
Repeat the step for the other side.

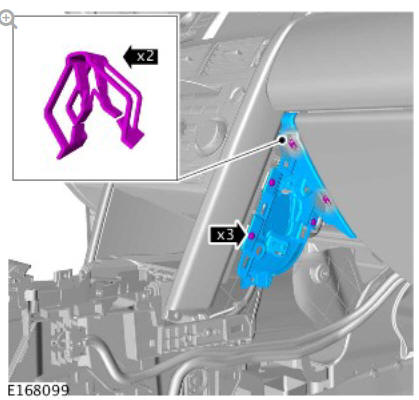

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index312(3).jpg)
Torque: 1.5 Nm

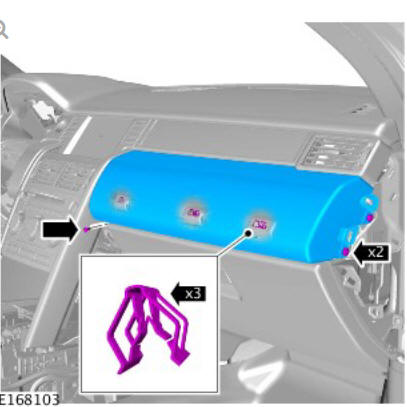

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index313(3).jpg)
Torque: 6 Nm

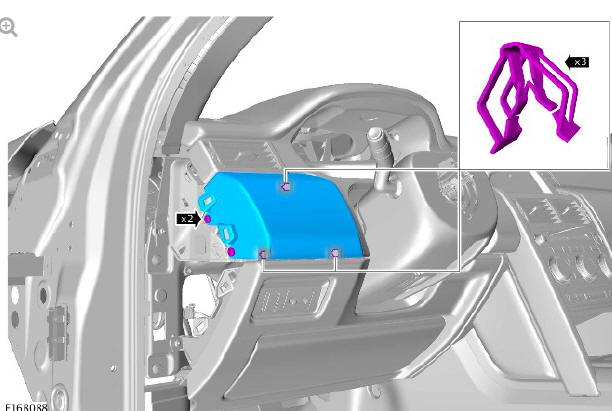

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index314(2).jpg)
Torque: 6 Nm
NOTE:
Repeat the step for the other side.

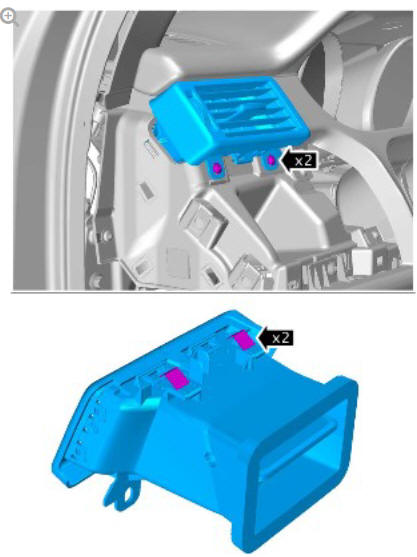

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index315(2).jpg)
Torque: 1.5 Nm

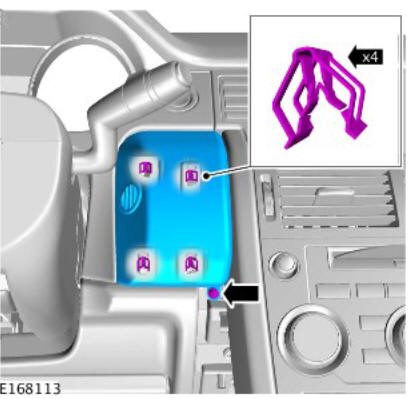

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index316(3).jpg)
Torque: 1.5 Nm

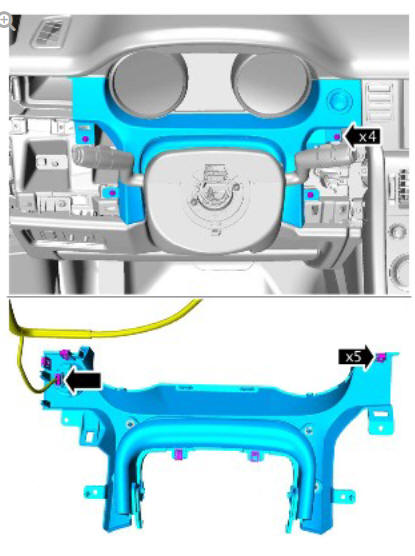

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index317(3).jpg)
Torque: 1.5 Nm
CAUTION:
Extreme care must be taken when removing and installing
the trim. Excessive force may result in damage to the
component.
NOTE:
Repeat the step for the other side.

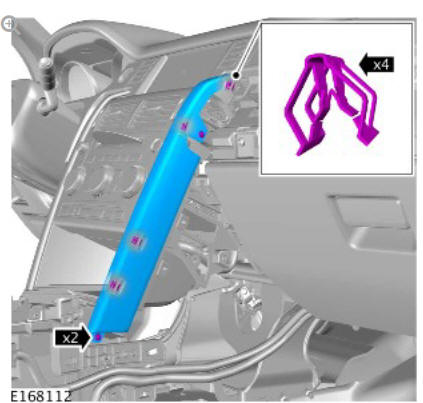

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index318(3).jpg)
Torque: 1.5 Nm

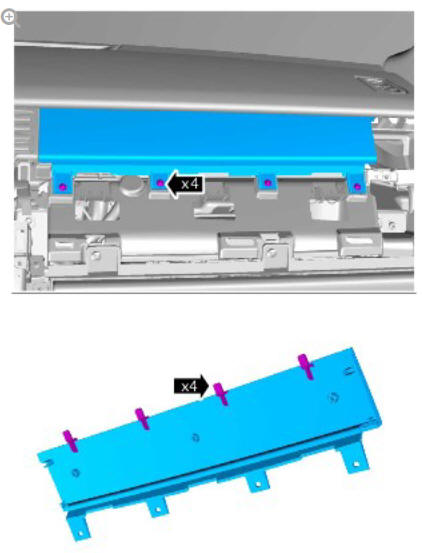

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index319(3).jpg)
Torque: 1.5 Nm

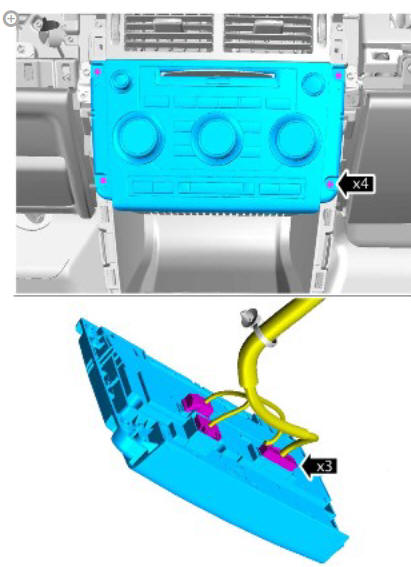

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index320(3).jpg)
Torque: 1.5 Nm

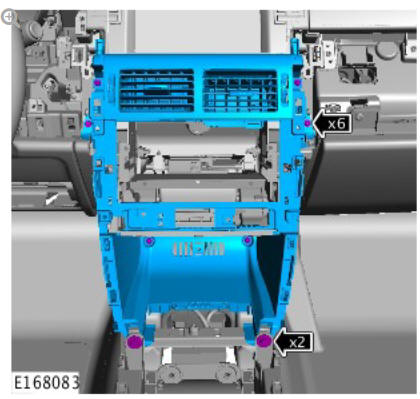

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index321(3).jpg)
Torque:
Screws 6 Nm
M6 bolts 10 Nm

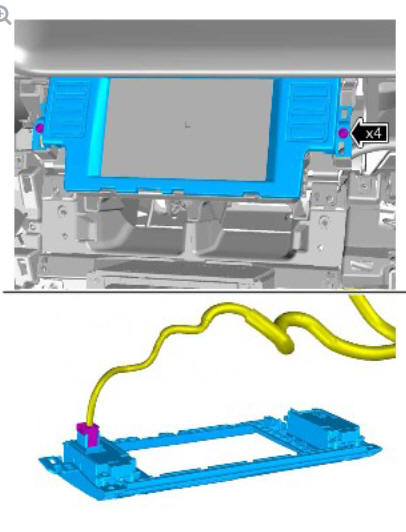

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index322(2).jpg)
Torque: 1.5 Nm

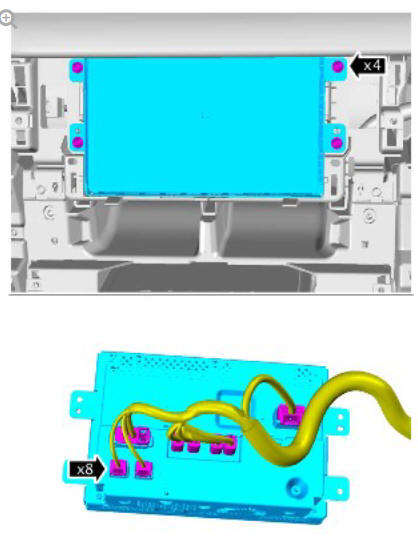

![Information and Entertainment Display (G1785534) / Removal and Installation](images/books/227/index323(3).jpg)
Torque: 6 Nm
INSTALLATION
- To install, reverse the removal procedure.
- If a new component has been installed, configure using Land Rover
approved diagnostic equipment.
Information and entertainment system specifications

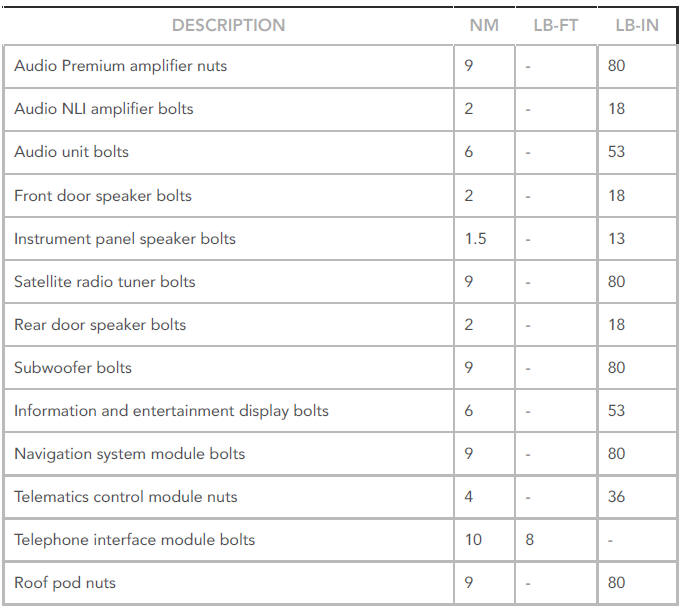

Torque Specifications
![Information and entertainment system specifications](images/books/227/index324(3).jpg)
