Land Rover Discovery: Glass, Frames and Mechanisms / Description and operation - Component location

Land Rover Discovery (2009–2016) Service Manual / Body / Glass, Frames and Mechanisms / Glass, Frames and Mechanisms / Description and operation / Glass, Frames and Mechanisms / Description and operation - Component location

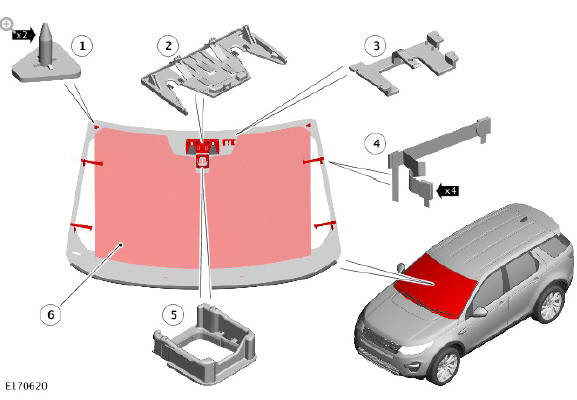

Component location - sheet 1 of 6

Component location - sheet 1 of 6

  1. Windshield locator pin
  2. Mounting bracket
  3. Demist sensor bracket
  4. Windshield heater element connectors (where fitted)
  5. Rain/Light sensor bracket
  6. Windshield heater element

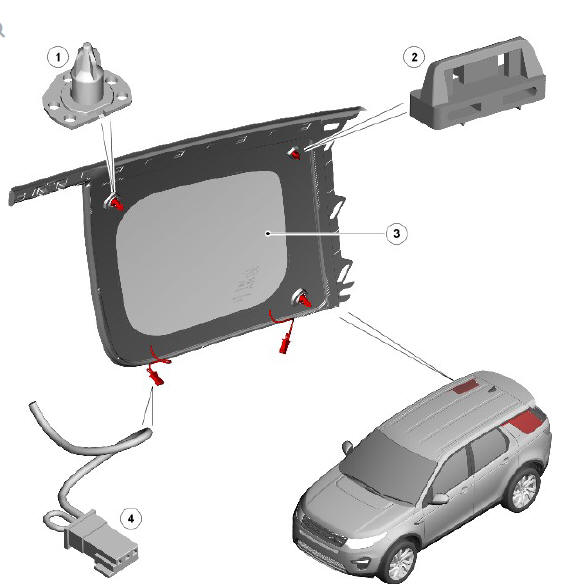

COMPONENT LOCATION - SHEET 2 OF 5

COMPONENT LOCATION - SHEET 2 OF 5

  1. Locator
  2. Locator
  3. Rear quarter window
  4. Antenna amplifier connections

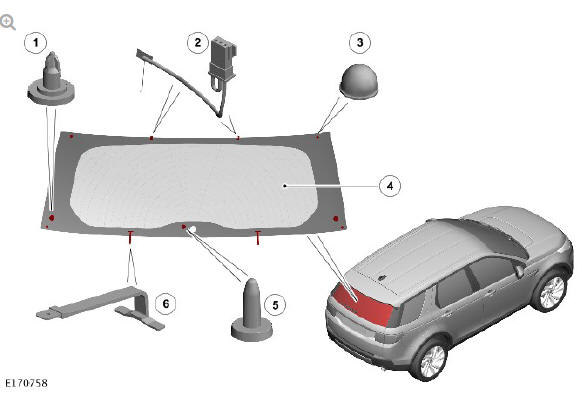

COMPONENT LOCATION - SHEET 3 OF 5

COMPONENT LOCATION - SHEET 3 OF 5

  1. Locator
  2. Radio Frequency (RF) filter and Antenna connections
  3. Spacer
  4. Heated Rear Window
  5. Locator
  6. Rear window heater element connectors

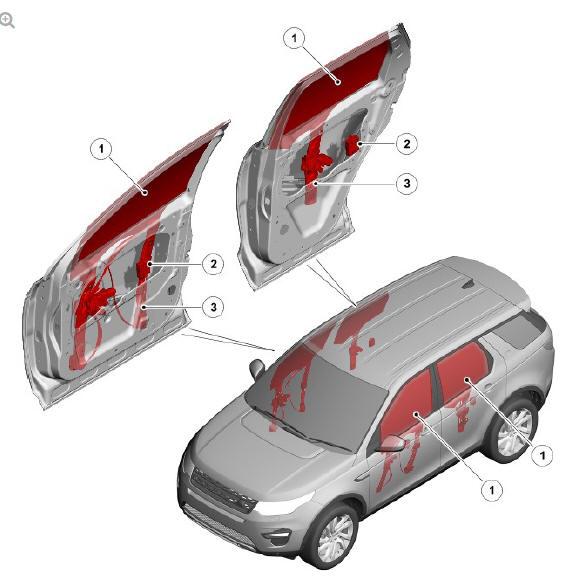

COMPONENT LOCATION - SHEET 4 OF 5

COMPONENT LOCATION - SHEET 4 OF 5

  1. Door glass
  2. Door Modules
  3. Door glass regulators

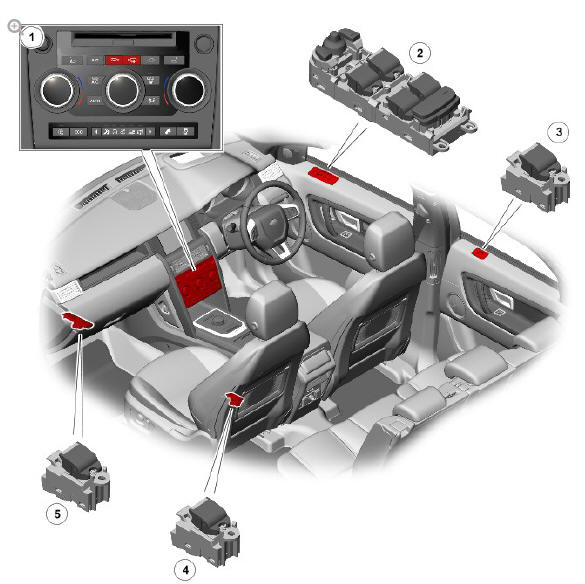

COMPONENT LOCATION - SHEET 5 OF 5

COMPONENT LOCATION - SHEET 5 OF 5

  1. Integrated control panel
  2. Driver door switchpack
  3. Right rear door switchpack
  4. Passenger door switchpack
  5. Left rear door switchpack

Description and operation - Overview

DOOR WINDOW MECHANISMS

Operation of the window lift system is controlled by the CJB (central junction box) in conjunction with the driver door module and the front passenger door module. The door modules are mounted in the door of their respective windows. Door modules are also mounted in both rear doors, and communicate with the front door modules over the Medium Speed (MS) CAN body bus.

The window lift system features one shot up and down operation, plus an anti-trap feature for all door windows.

FIXED GLASS

The laminated windshield is bonded and sealed to the body aperture using PU (polyurethane) adhesive.

The toughened rear window is also bonded and sealed to the tailgate aperture using PU adhesive. A single heating element is printed on the inner surface of the rear window.
