Land Rover Discovery: Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Instrument and Warning Systems / Parking Aid / Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.

Refer to: Front Row Seat - Vehicles With: Power Seats (501-10 Seating, Removal and Installation).

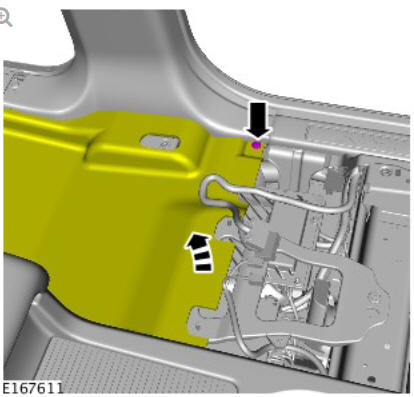

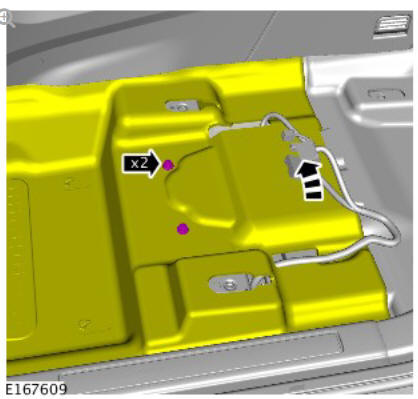

Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

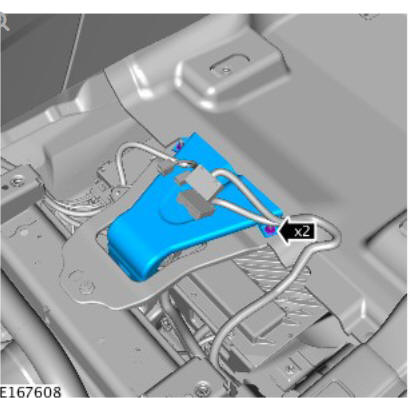

Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

Torque: 10 Nm

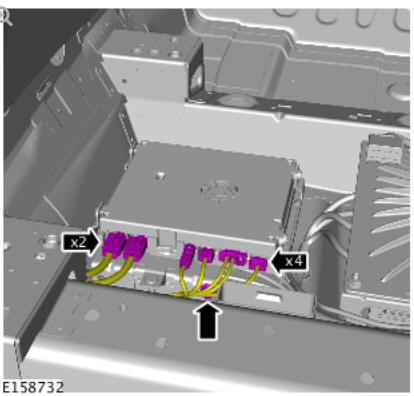

Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

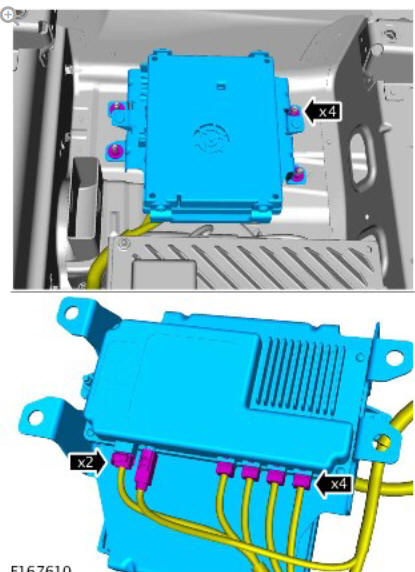

Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

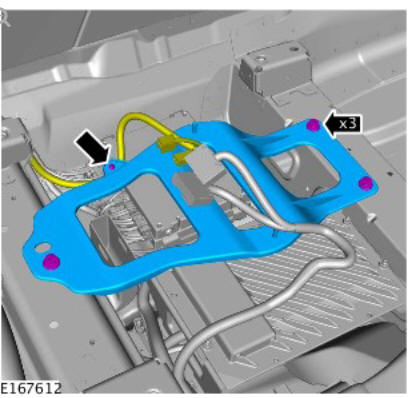

Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

Torque: 10 Nm

NOTE:

Do not disassemble further if the component is removed for access only.

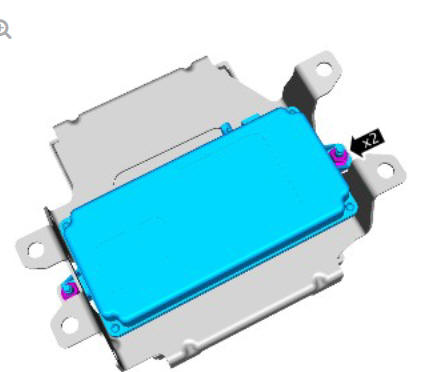

Parking Aid Parking Aid Camera Module (G1780353) / Removal and Installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new camera control module is installed it must be configured with the latest level software using Land Rover approved diagnostic equipment.
  • Turn the ignition off.
  • Wait for a minimum of 10 seconds.
  • Turn the ignition on.
