Land Rover Discovery: Rear Drive Axle - Differential - Vehicles with- Active Driveline Electric Hydraulic Pump (G1781303) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle - Differential - Vehicles with- Active Driveline Electric Hydraulic Pump (G1781303) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

NOTE:

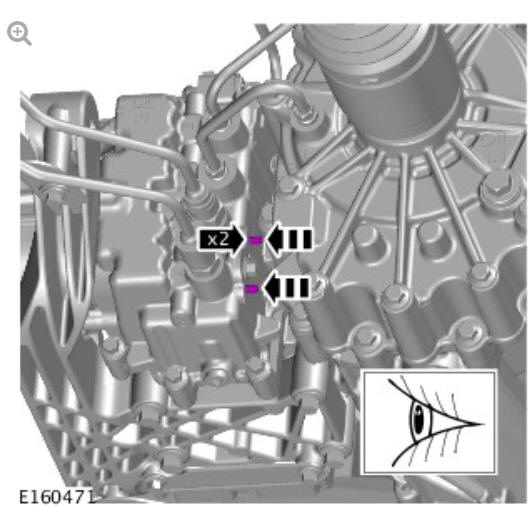

Before disconnect any components of the active driveline hydraulic system, the two pipe port closing valve must be closed manually as illustrated.

Rear drive axle_differential - Vehicles with- Active driveline electric hydraulic pump (G1781303) removal and installation

CAUTION:

Be prepared to collect escaping fluids.

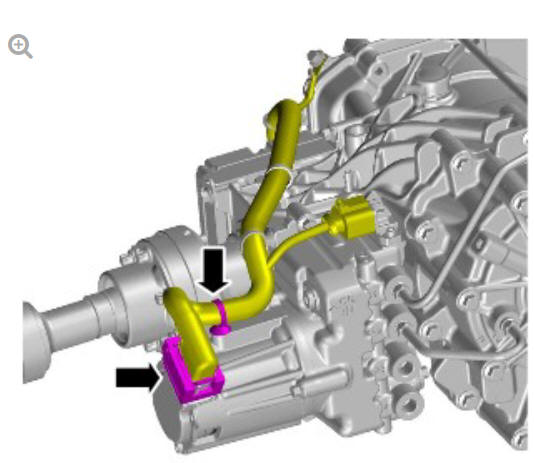

Rear drive axle_differential - Vehicles with- Active driveline electric hydraulic pump (G1781303) removal and installation

Torque: 16 Nm

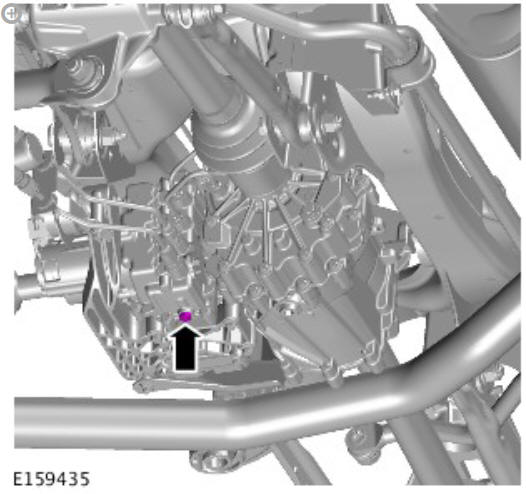

Rear drive axle_differential - Vehicles with- Active driveline electric hydraulic pump (G1781303) removal and installation

CAUTION:

Remove and discard the o-ring seals.

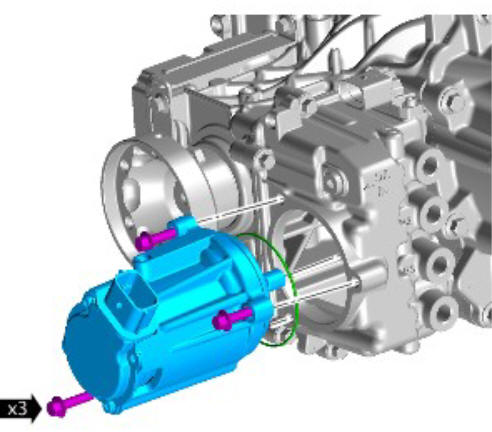

Rear drive axle_differential - Vehicles with- Active driveline electric hydraulic pump (G1781303) removal and installation

Torque: 10 Nm

INSTALLATION

To install, reverse the removal procedure.

Refer to: Hydraulic System Draining, Filling and Bleeding (205-02B Rear Drive Axle/Differential - Vehicles With: Active Driveline, General Procedures).
