Land Rover Discovery: Transmission Fluid Pan - Ingenium i4 2.0l Diesel (G1894395) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Automatic Transmission  Transaxle / Transmission Fluid Pan - Ingenium i4 2.0l Diesel (G1894395) / Removal and Installation

REMOVAL

WARNING:

Be prepared to catch escaping fluid.

CAUTION:

Extreme cleanliness must be exercised when handling this component.

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Refer to: Charge Air Cooler (303-12C, Removal and Installation).

Refer to: Cooling System Partial Draining and Vacuum Filling (303- 03A Engine Cooling - TD4 2.2L Diesel, General Procedures).

Refer to: Transmission Fluid Drain and Refill (307-01 Automatic Transmission/Transaxle, General Procedures).

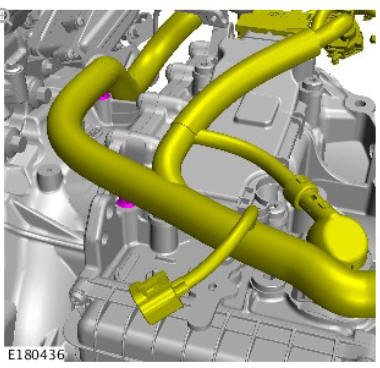

Transmission Fluid Pan - Ingenium i4 2.0l Diesel (g1894395) Removal and Installation

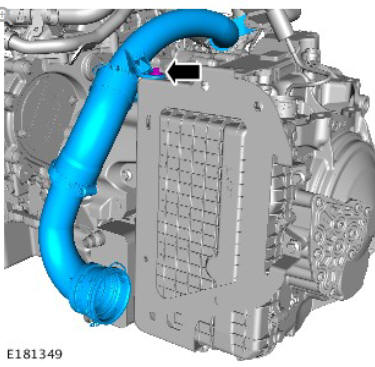

Transmission Fluid Pan - Ingenium i4 2.0l Diesel (g1894395) Removal and Installation

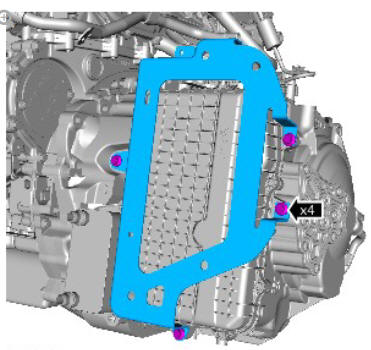

Transmission Fluid Pan - Ingenium i4 2.0l Diesel (g1894395) Removal and Installation

CAUTION:

Care must be taken when handling the component. Do not place on a surface with the seal faced down. Failure to follow this instruction may damage the component.

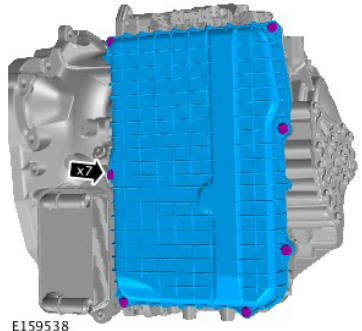

Transmission Fluid Pan - Ingenium i4 2.0l Diesel (g1894395) Removal and Installation

INSTALLATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

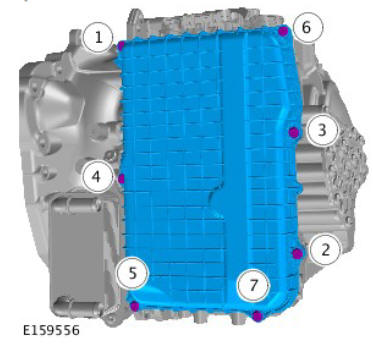

Transmission Fluid Pan - Ingenium i4 2.0l Diesel (g1894395) Removal and Installation

Tighten the bolts in the sequence illustrated.

Torque: 9 Nm

NOTE:

This step is only required if previously removed.

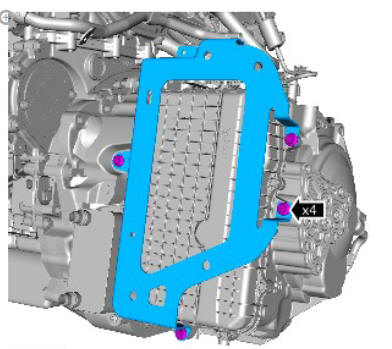

Transmission Fluid Pan - Ingenium i4 2.0l Diesel (g1894395) Removal and Installation

Torque: 10 Nm

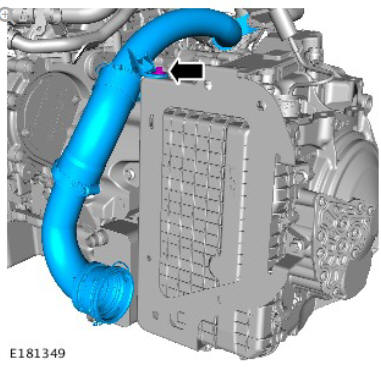

Transmission Fluid Pan - Ingenium i4 2.0l Diesel (g1894395) Removal and Installation

Torque: 8 Nm

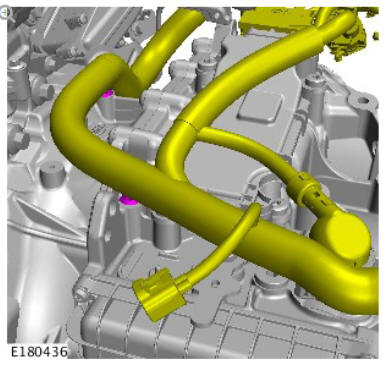

Transmission Fluid Pan - Ingenium i4 2.0l Diesel (g1894395) Removal and Installation

Refer to: Charge Air Cooler (303-12C, Removal and Installation).

Refer to: Transmission Fluid Drain and Refill (307-01 Automatic Transmission/Transaxle, General Procedures).

Refer to: Cooling System Partial Draining and Vacuum Filling (303- 03A Engine Cooling - TD4 2.2L Diesel, General Procedures).

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
