Land Rover Discovery: Electronic Engine Controls
- Ingenium i4 2.0l Diesel
Camshaft Position
Sensor (G1875922)
/ Removal and Installation
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.

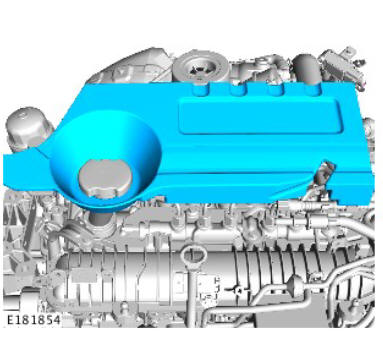

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior
Trim and Ornamentation, Removal and Installation).

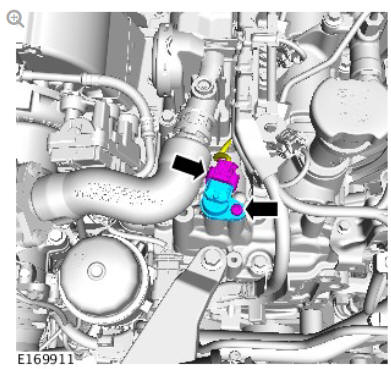

.jpg)
.jpg)
INSTALLATION
CAUTIONS:
- During the installation, make sure that all components are
clean and free from foreign material.
- Do not use excessive force to install the component.
NOTE:
Lubricate the O-ring seal with clean engine oil.

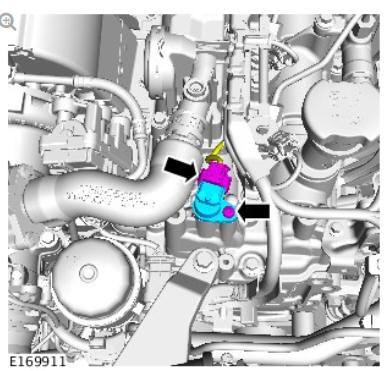

.jpg)
Torque: 8 Nm
.jpg)

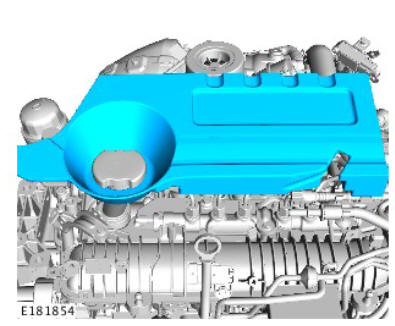

Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (501-05 Interior
Trim and Ornamentation, Removal and Installation).
Electronic Engine Controls
- Ingenium i4 2.0l Diesel
Cylinder Block
Temperature Sensor
(g1881168)/ Removal and Installation
PART(S)
.jpg)
REMOVAL
CAUTION:
Removal steps in this procedure contains installation details.
NOTE:
Some variation in the illustrations may occur, but the essential
information is always correct.
- Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
- Refer to: Radiator (303-03B Engine Cooling - INGENIUM I4 2.0L
Diesel, Removal and Installation).

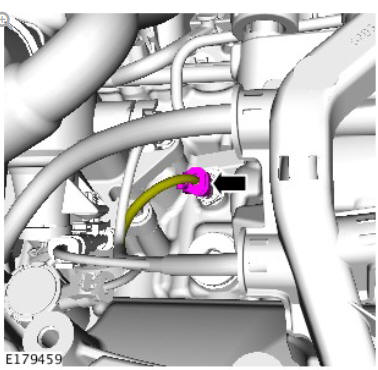

.jpg)
CAUTION:
Discard the cylinder block temperature sensor.

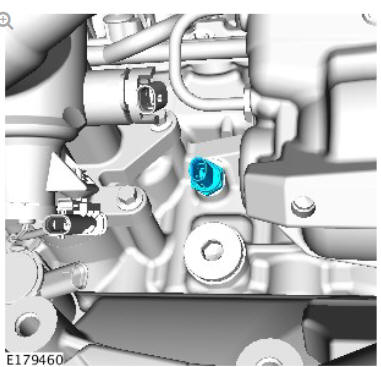

.jpg)
Renew Part: Engine block temperature sensor.
Torque: 10 Nm
INSTALLATION
CAUTION:
A new cylinder block temperature sensor must be installed.
To install, reverse the removal procedure.
