Land Rover Discovery: Electronic Engine Controls - Ingenium i4 2.0l Diesel Cylinder Head Temperature Sensor (G1875924)/ Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Electronic Engine Controls  - Ingenium i4 2.0l Diesel / Electronic Engine Controls - Ingenium i4 2.0l Diesel Cylinder Head Temperature Sensor (G1875924)/ Removal and Installation

PART(S)

Electronic Engine Controls - Ingenium i4 2.0l Diesel Cylinder Head Temperature Sensor (G1875924)/ Removal and Installation

REMOVAL

CAUTION:

Be prepared to collect escaping coolant.

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

CAUTION:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Cooling System Partial Draining and Vacuum Filling (303- 03B Engine Cooling - INGENIUM I4 2.0L Diesel, General Procedures).

Refer to: Coolant Expansion Tank (303-03B Engine Cooling - INGENIUM I4 2.0L Diesel, Removal and Installation).

Refer to: Engine Mount (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

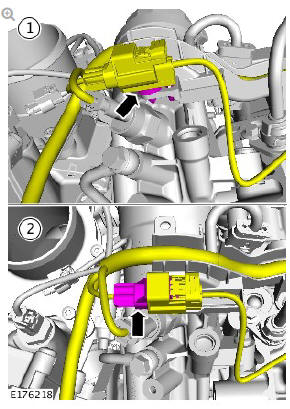

Electronic Engine Controls - Ingenium i4 2.0l Diesel Cylinder Head Temperature Sensor (G1875924)/ Removal and Installation

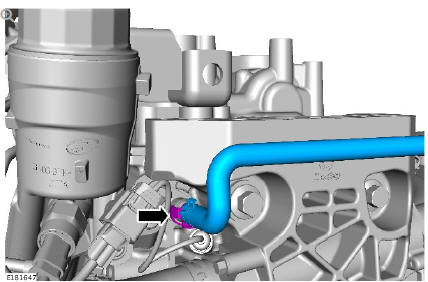

Electronic Engine Controls - Ingenium i4 2.0l Diesel Cylinder Head Temperature Sensor (G1875924)/ Removal and Installation

CAUTION:

Discard the cylinder head temperature sensor.

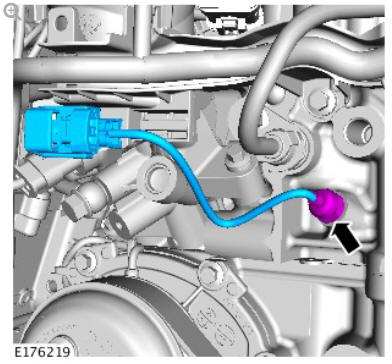

Electronic Engine Controls - Ingenium i4 2.0l Diesel Cylinder Head Temperature Sensor (G1875924)/ Removal and Installation

Torque: 10 Nm

INSTALLATION

CAUTION:

A new cylinder head temperature sensor must be installed.

To install, reverse the removal procedure.

Renew Part: Cylinder head temperature sensor.

Electronic Engine Controls - Ingenium i4 2.0l Diesel Diesel Particulate Filter Differential Pressure Sensor (G1890699) / Removal and Installation

REMOVAL

WARNING:

Observe due care when working near a hot exhaust system.

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

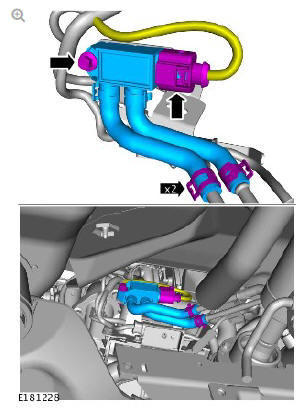

Electronic Engine Controls - Ingenium i4 2.0l Diesel Diesel Particulate Filter Differential Pressure Sensor (G1890699) / Removal and Installation

Torque: 6 Nm

INSTALLATION

To install, reverse the removal procedure.

NOTE:

This step is only necessary when installing a new component.

  1. Using the diagnostic tool, clear diagnostic trouble codes (DTCs) from the engine control module (ECM).
  2. Using the data logger, check the engine oil temperature.
  3. Make sure the selector lever is in the 'P' position.
  4. Start and run the engine.

    Make sure that the engine oil is at a minimum temperature of 50 degrees C.

  5. Allow the engine to idle for 2 minutes and 30 seconds.
  6. Make sure that the engine cooling fan is not running.
  7. Turn off the ignition.
  8. Wait for 30 seconds.
  9. Repeat steps 4 to 9, a further 5 times.
  10. Disconnect the diagnostic tool.
