Land Rover Discovery (2009–2016) Service Manual / Electrical / Information and Entertainment System / Video System

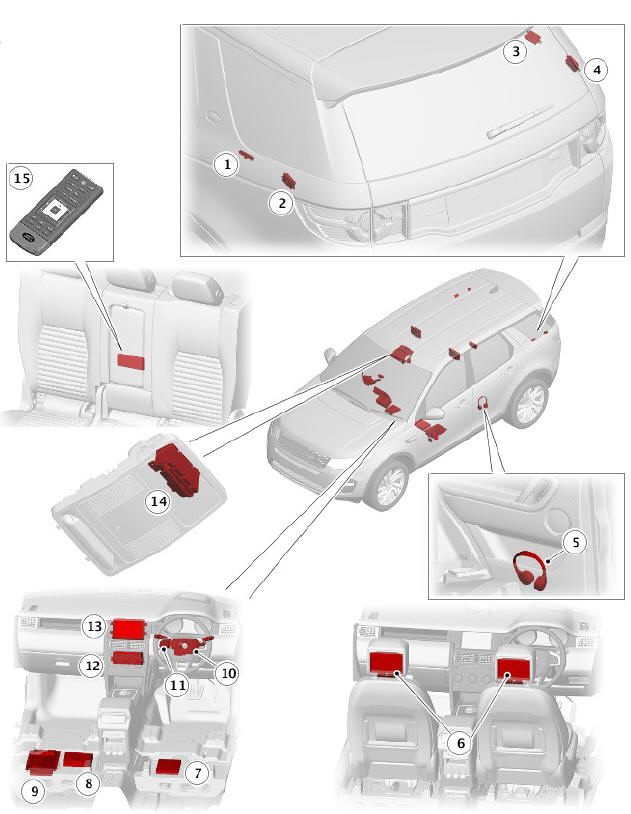

COMPONENT LOCATION

Video System

  1. TV antenna amplifier/Fuel Fired Booster Heater (FFBH) receiver
  2. Frequency Modulation (FM) antenna amplifier
  3. Television (TV) antenna amplifier
  4. Amplitude Modulation (AM)/Frequency Modulation (FM) antenna amplifier
  5. Wireless headphones
  6. Rear Seat Entertainment (RSE) screen (2 off)
  7. RSE Control Module (RSECM)
  8. Television Control Module (TVCM)
  9. Audio Amplifier Module (AAM)
  10. Clockspring
  11. Left steering wheel switchpack
  12. Integrated Audio Module (IAM)
  13. Touch Screen (TS)
  14. Headphone transmitter
  15. RSE remote control

OVERVIEW

Rear Seat Entertainment (RSE) is only available on vehicles with InControl Touch Plus and InControl Touch Plus with Meridian Surround audio systems.

The fiber optic, Media Oriented System Transport (MOST) based system provides video and audio entertainment for the front and rear seat occupants. The system allows rear seat occupants to view Digital Versatile Disc (DVD) video and Television (TV) on two Rear Seat Entertainment (RSE) screens, listen to audio output via the vehicle speakers or wireless headphones or display video images on the RSE screens from an external source, such as a video player or games console.

TV and DVD video images can also be displayed on the Touch Screen (TS) if the vehicle is below a predetermined speed threshold or has dual-view TS fitted (where market regulations allow).

The system comprises the following components:

  • RSECM
  • TVCM
  • Three TV Antennas
  • Three TV antenna amplifiers
  • Two RSE screens
  • RSE remote control
  • Headphone transmitter
  • Wireless headphones
  • Audio Visual Input/Output (AVIO) panel.

The RSE system also uses other components which form part of the audio system as follows:

  • Touch Screen (TS)
  • Integrated Audio Module (IAM)
  • Audio amplifier Module (AAM)
  • Vehicle speakers.
  • For additional information, refer to: Audio System (415-01 Information and Entertainment System, Description and Operation).

DESCRIPTION

Touch screen (TS)
