Land Rover Discovery: Camshafts (G1875875) / Removal and Installation

SPECIAL TOOL(S)

Camshafts (G1875875) / Removal and Installation

PART(S)

PART(S)

PART(S)

REMOVAL

NOTE:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

NOTE:

All vehicles.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

CAUTIONS:

  • Be prepared to collect escaping fuel.
  • Make sure that all openings are sealed. Use new blanking caps.

NOTE:

Vehicles with auxiliary fuel system.

Camshafts (G1875875) / Removal and Installation

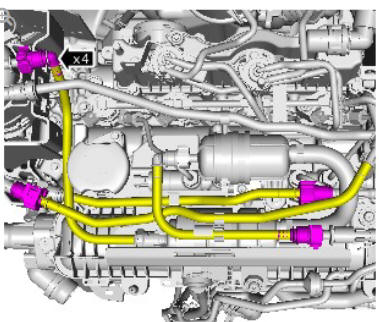

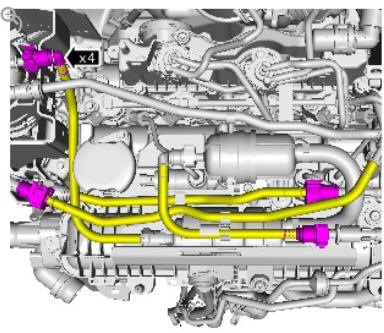

Disconnect and position the auxiliary fuel pipes to one side.

Camshafts (G1875875) / Removal and Installation

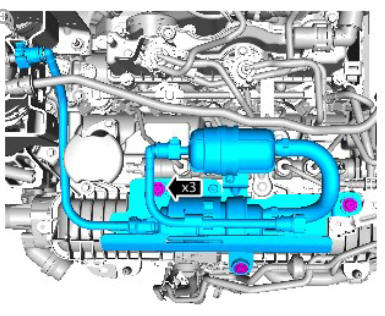

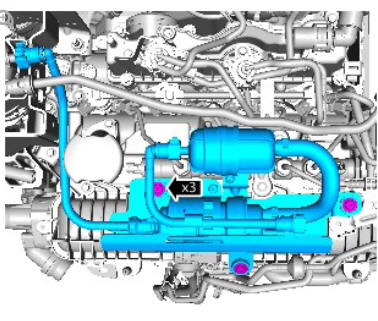

Remove the auxiliary fuel pump and filter assembly

NOTE:

All vehicles.

Remove the fuel cooler.

Refer to: Fuel Cooler (310-01B Fuel Tank and Lines - INGENIUM I4 2.0L Diesel, Removal and Installation).

Remove the fuel rail.

Refer to: Fuel Rail (303-04C Fuel Charging and Controls - INGENIUM I4 2.0L Diesel, Removal and Installation).

Remove the fuel injectors.

Refer to: Fuel Injectors (303-04C Fuel Charging and Controls - INGENIUM I4 2.0L Diesel, Removal and Installation).

Remove the upper timing chain.

Refer to: Upper Timing Chain (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

NOTE:

Remove and discard the bolt.

Camshafts (G1875875) / Removal and Installation

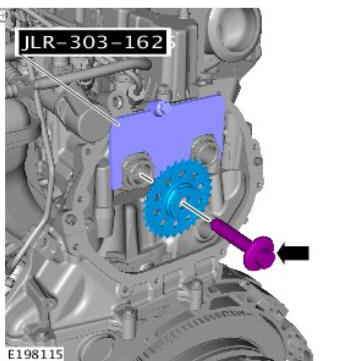

Remove the camshaft gear, then remove the special tool JLR-303- 1625.

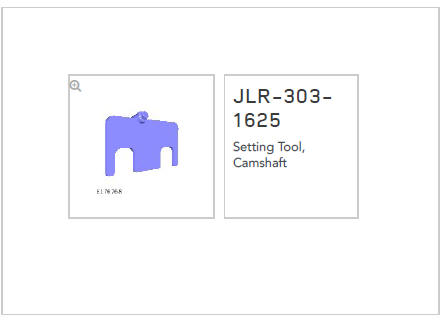

Special Tool(s): JLR-303-1625

Camshafts (G1875875) / Removal and Installation

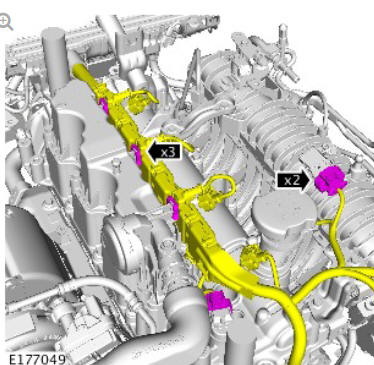

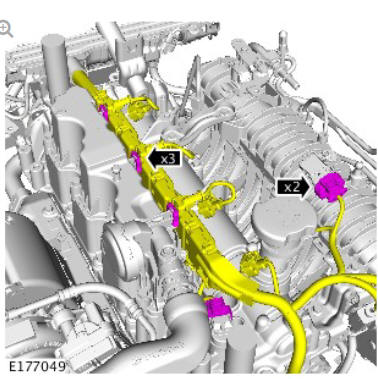

Disconnect and position the harness to one side.

Camshafts (G1875875) / Removal and Installation

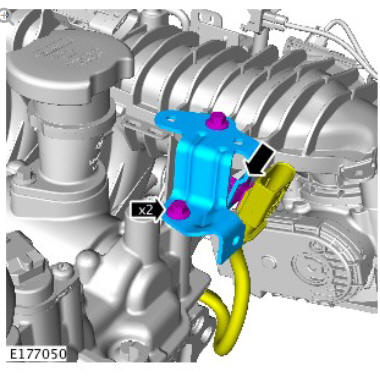

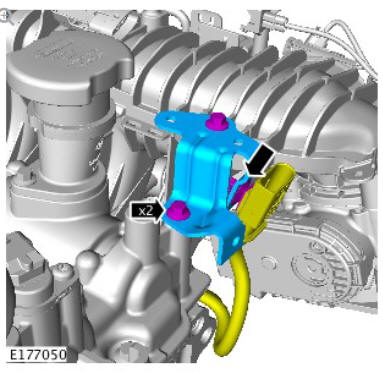

Remove the bracket.

Camshafts (G1875875) / Removal and Installation

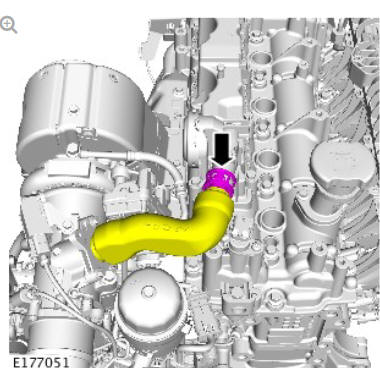

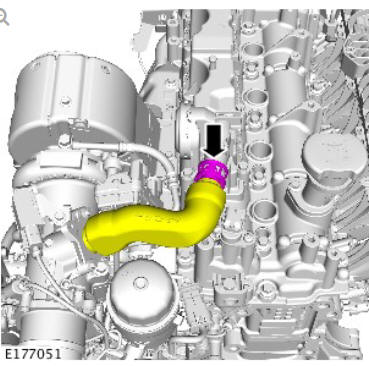

Position the pipe to one side.

NOTES:

  • Do not disassemble further if the component is removed for access only.
  • Discard the gasket.

Camshafts (G1875875) / Removal and Installation

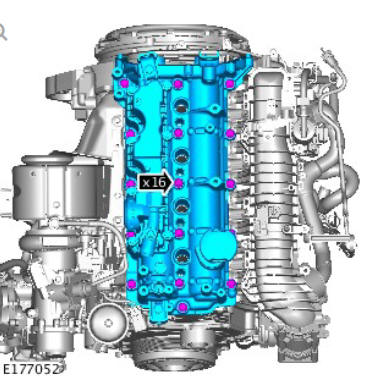

Remove the valve cover.

CAUTIONS:

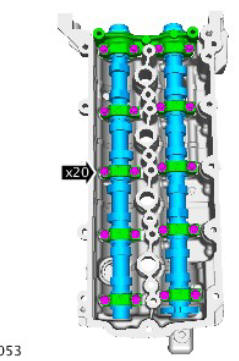

  • Remove the camshaft bearing caps. Note: their position, orientation and markings. Each is marked with its position. I (inlet) E (exhaust) a number (1-5) and its orientation (arrow).
  • Inspect the camshafts and install new ones if damaged or worn.
  • Inspect the valve cover and camshaft bearing caps and install a new valve cover assemble if damaged or worn.

Camshafts (G1875875) / Removal and Installation

Renew Part: Camshaft cover gasket.

INSTALLATION

CAUTION:

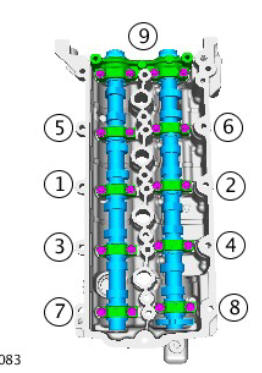

Install and finger tighten bolts before final tightening in sequence illustrated.

NOTES:

  • Make sure that these components are installed to the noted removal position.
  • All vehicles.

Camshafts (G1875875) / Removal and Installation

Lubricate the components with clean engine oil.

Torque: 12 Nm

Camshafts (G1875875) / Removal and Installation

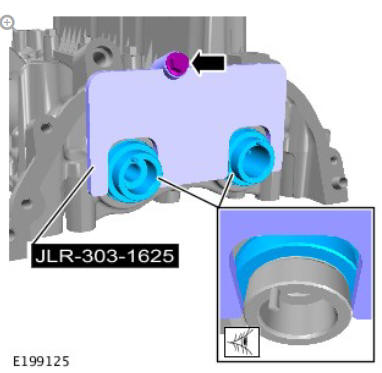

Align the camshafts and install the special tool JLR-303-1625.

Special Tool(s): JLR-303-1625

CAUTION:

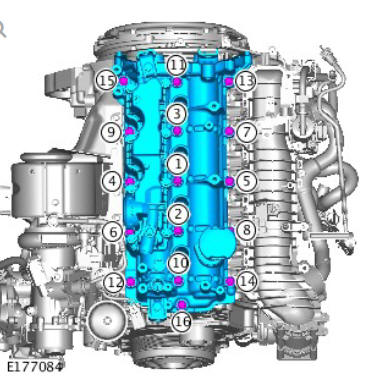

Install and finger tighten bolts before final tightening in sequence illustrated.

NOTE:

Install a new gasket.

Camshafts (G1875875) / Removal and Installation

Torque: M8 x 80

Stage 1: 15 Nm

Stage 2: 42º

M8 x 40 25 Nm

Camshafts (G1875875) / Removal and Installation

Install the pipe.

Camshafts (G1875875) / Removal and Installation

Install the bracket.

Torque: 12 Nm

Camshafts (G1875875) / Removal and Installation

Install the harness.

Camshafts (G1875875) / Removal and Installation

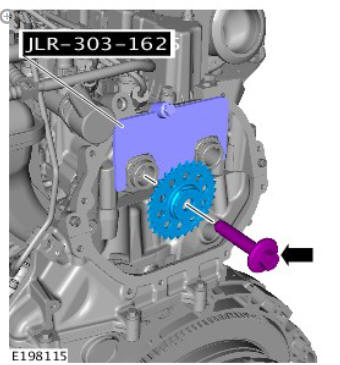

Install the camshaft gear.

Special Tool(s): JLR-303-1625

Renew Part: Camshaft sprocket bolt.

Torque:

Stage 1: 10 Nm

Stage 2: Loosen: 90º

Stage 3: 80 Nm

Stage 4: 90º

Install the upper timing chain.

Refer to: Upper Timing Chain (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Install the fuel injectors.

Refer to: Fuel Injectors (303-04C Fuel Charging and Controls - INGENIUM I4 2.0L Diesel, Removal and Installation).

Install the fuel rail.

Refer to: Fuel Rail (303-04C Fuel Charging and Controls - INGENIUM I4 2.0L Diesel, Removal and Installation).

Install the fuel cooler.

Refer to: Fuel Cooler (310-01B Fuel Tank and Lines - INGENIUM I4 2.0L Diesel, Removal and Installation).

NOTE:

Vehicles with auxiliary fuel system.

Camshafts (G1875875) / Removal and Installation

Install the auxiliary fuel pump and filter assembly.

Torque: 10 Nm

Camshafts (G1875875) / Removal and Installation

Install the auxiliary fuel pipes.

NOTE:

All vehicles.

Connect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Crankshaft front seal (G1875870) removal and installation

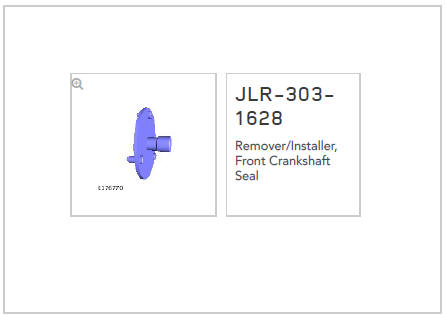

SPECIAL TOOL(S)

SPECIAL TOOL(S)

PART(S)

PART(S)

REMOVAL

  1. Refer to: Crankshaft Pulley (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

Crankshaft front seal (G1875870) removal and installation

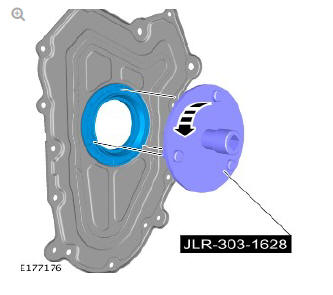

Remove and discard the seal.

Special Tool(s): JLR-303-1628

INSTALLATION

Crankshaft front seal (G1875870) removal and installation

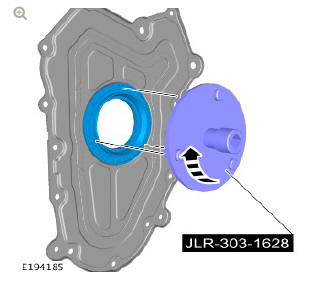

Make sure a new seal is installed.

Special Tool(s): JLR-303-1628

Renew Part: Crankshaft front oil seal.

Torque: 26 Nm
